Communication Method

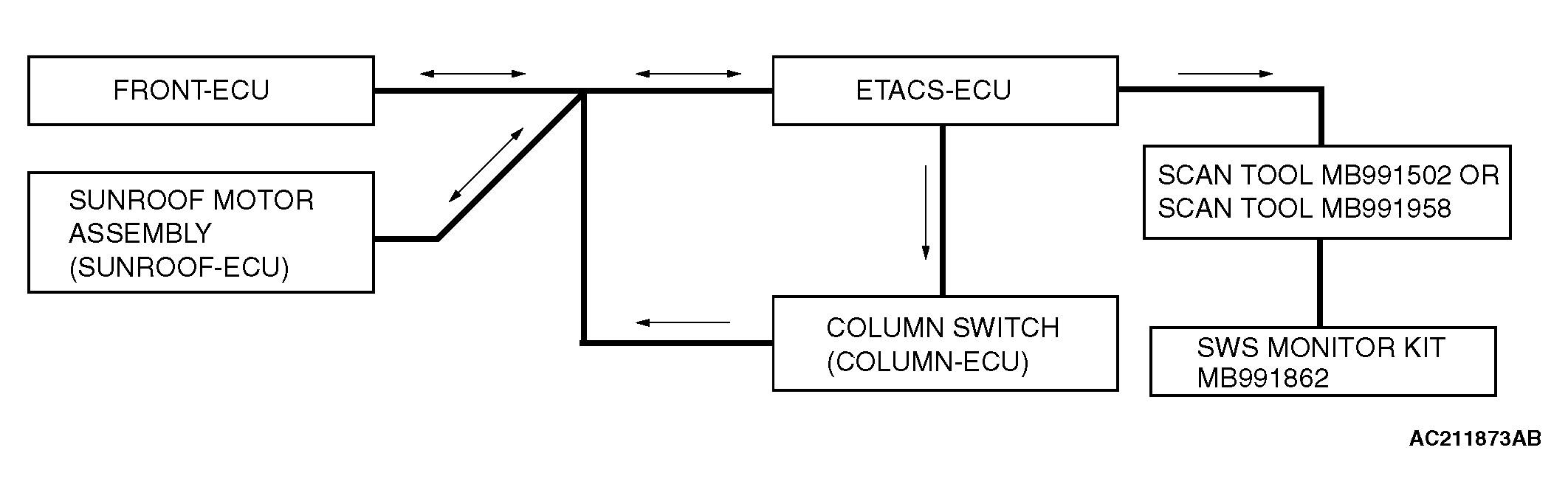

As shown below, signal wires used exclusively for transmitting multiplex signal data connect the ETACS-ECU, front-ECU, column switch (incorporating the column-ECU) and sunroof motor assembly (incorporating the sunroof-ECU) and these components communicate with each other.
