Check Valve Check

Connect a hand vacuum pump to the check valve, apply negative pressure and check the airtightness.

CHECK VALVE CONDITION CHART

CONNECTED NIPPLE COLOR	NORMAL CONDITION
Black	Negative pressure leaks
Brown	Negative pressure is maintained

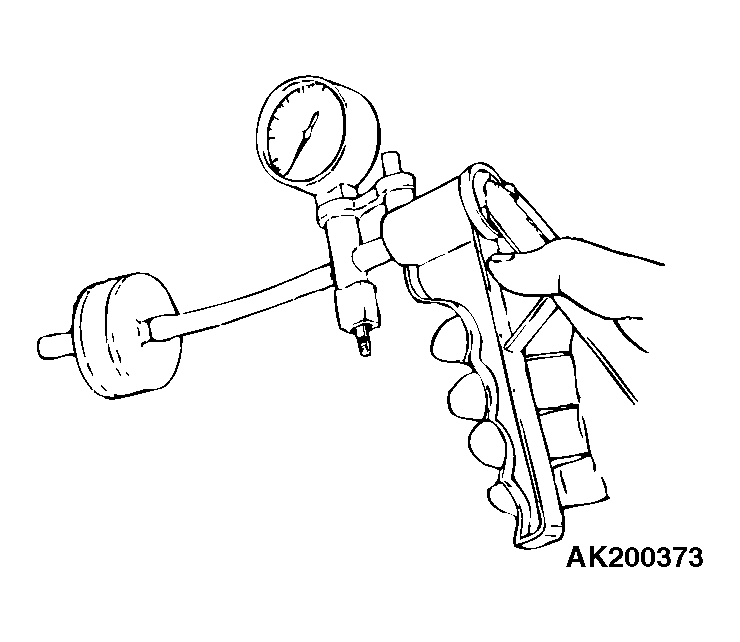

Fig 1: Connecting Hand Vacuum Pump To Check Valve

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
