Home >> Mitsubishi >> 2006 >> Lancer Evolution >> Repair and Diagnosis >> Restraints >> Passive Restraints >> Interior - Lancer Evolution >> Rear Floor Console Assembly >> Disassembly And Assembly >> Notes

Disassembly And Assembly: Notes

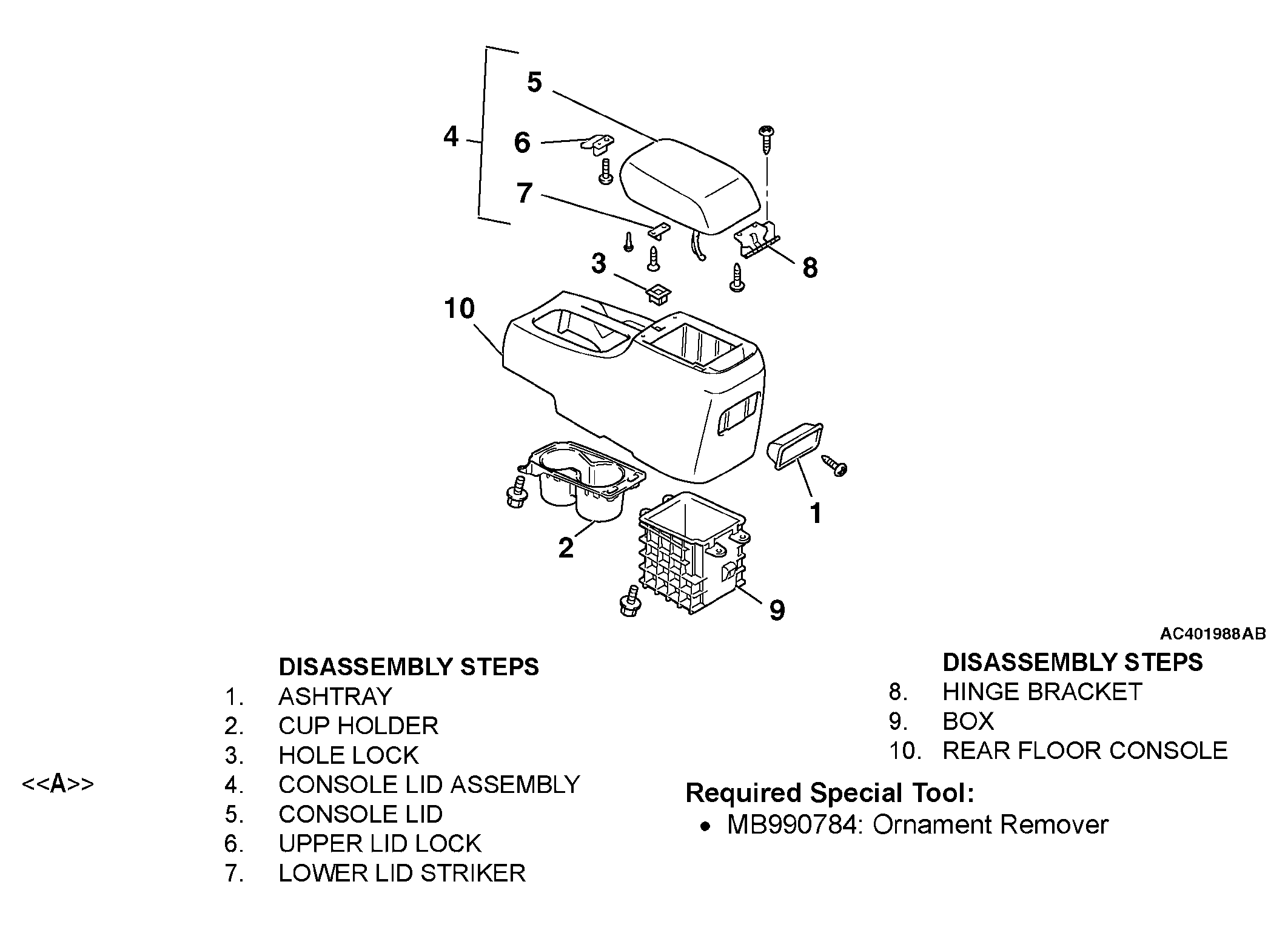

Fig 1: Disassembling And Assembling Rear Floor Console Assembly
G04297852Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
