Component Location

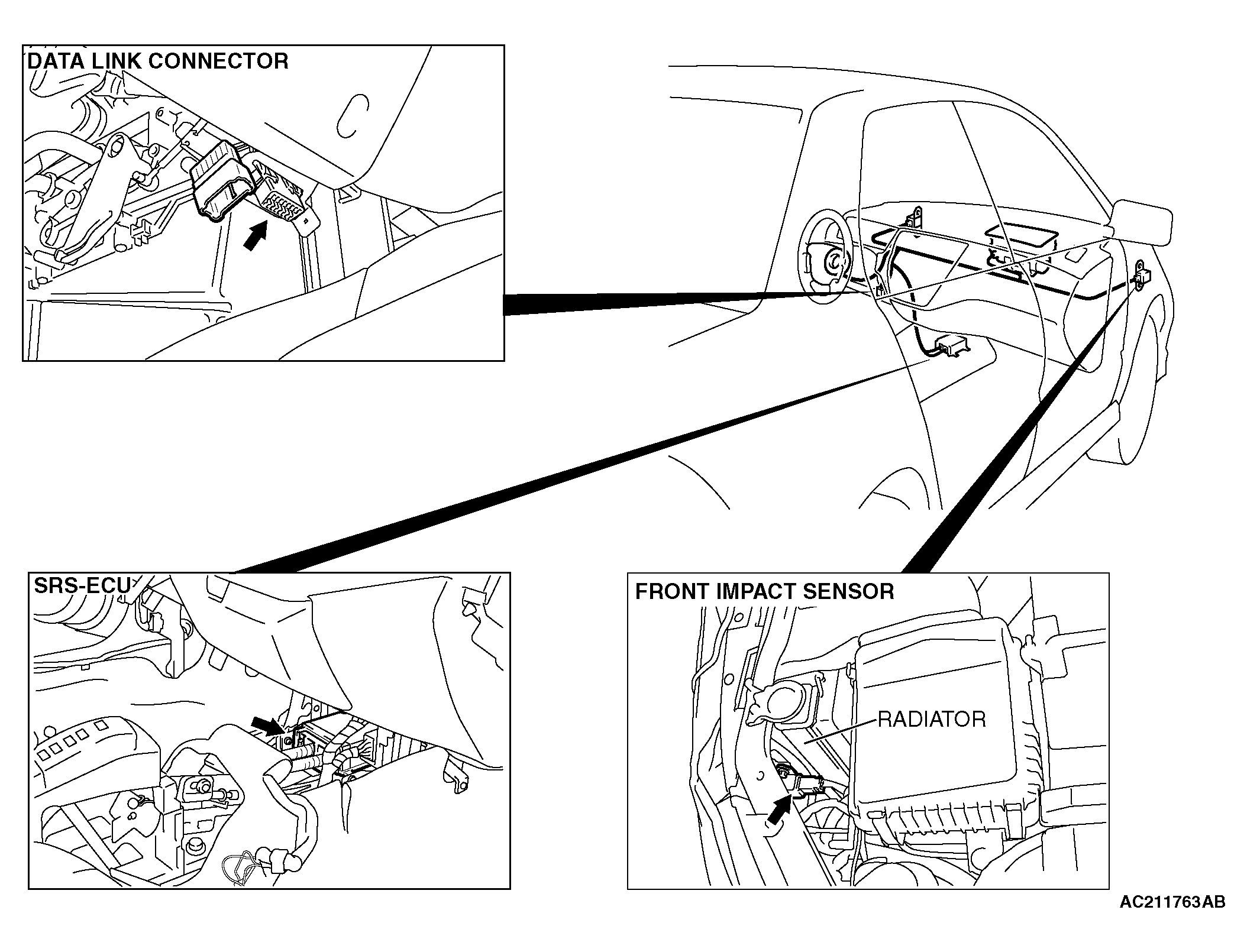

Fig 1: Identifying SRS Component Location
G04297890Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: The illustration above shows the front impact sensor (LH). The position of the side impact sensor (RH) is symmetrical to this.
