Special Tools

SPECIAL TOOLS

TOOL TOOL NUMBER AND NAME SUPERSESSION APPLICATION
G04267753

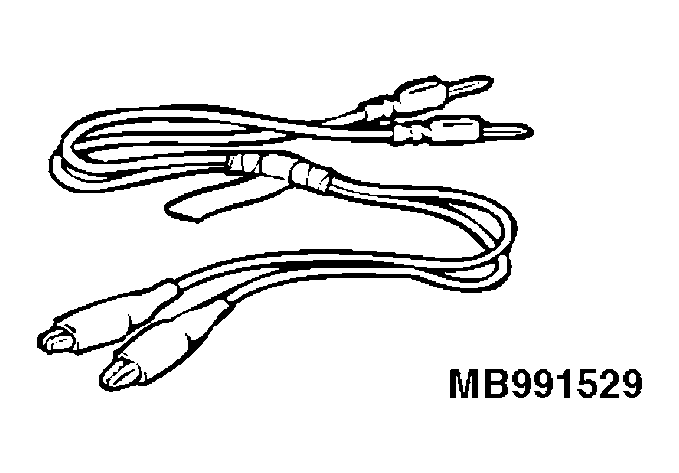

 MB991529 Diagnostic trouble code check harness Tool not necessary if scan tool (MUT-III) is available For setting of hazard answerback function
G04267754G04267755G04267756G04267757G04267758G04267759G04267760
G04267754G04267755G04267756G04267757G04267758G04267759G04267760
G04267754G04267755G04267756G04267757G04267758G04267759G04267760
G04267754G04267755G04267756G04267757G04267758G04267759G04267760
G04267754G04267755G04267756G04267757G04267758G04267759G04267760
G04267754G04267755G04267756G04267757G04267758G04267759G04267760
G04267754G04267755G04267756G04267757G04267758G04267759G04267760
 MB991958

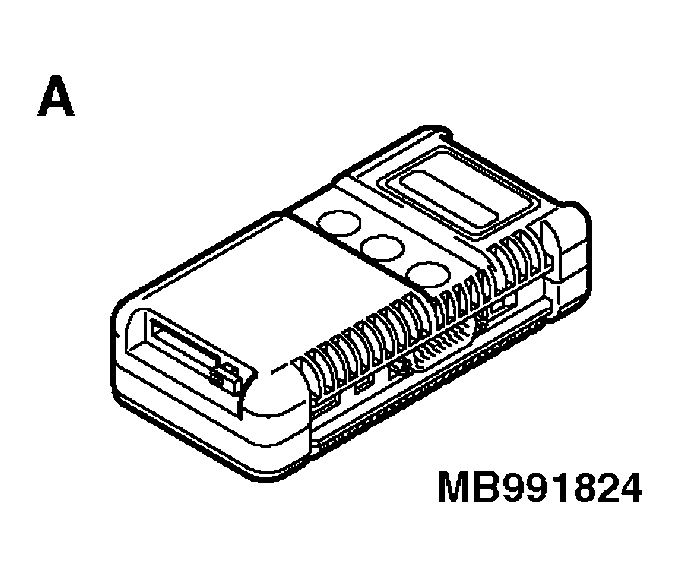

  1. MB991824

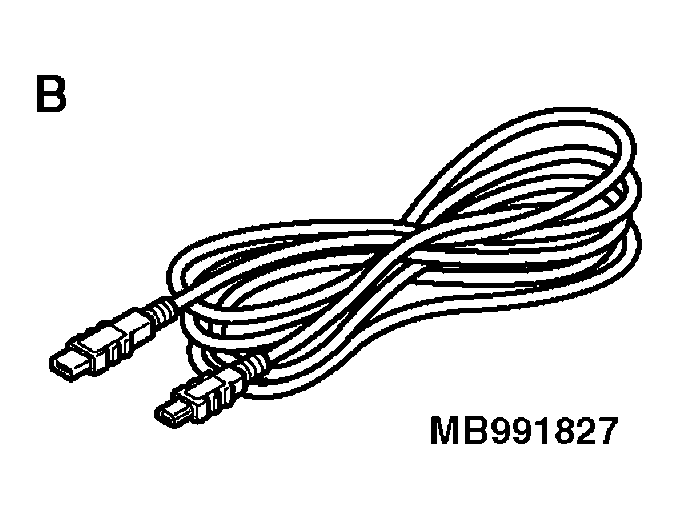

  2. MB991827
  3. MB991910

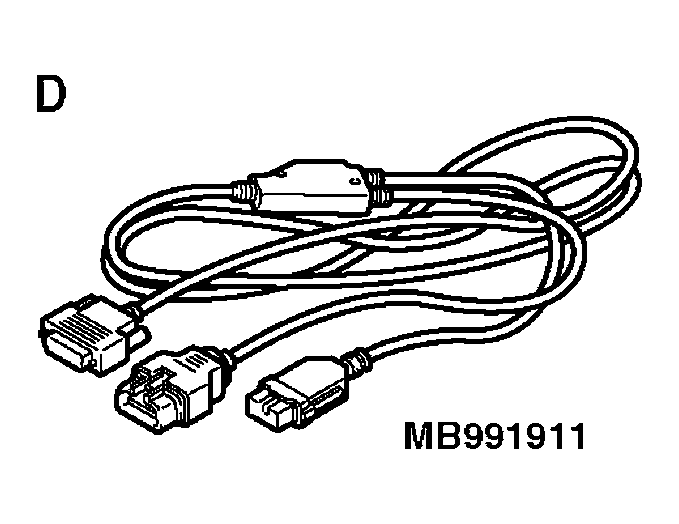

  4. MB991911
  5. MB991914

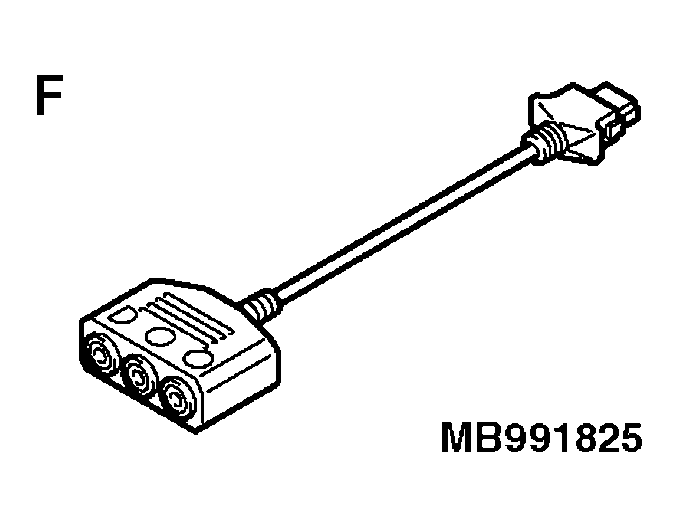

  6. MB991825

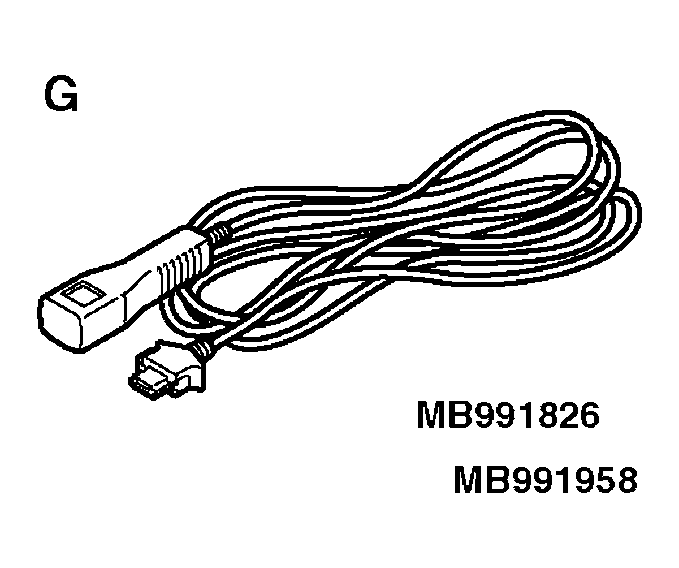

  7. MB991826

MUT-III sub assembly
  1. Vehicle communication interface (V.C.I.)
  2. MUT-III USB cable
  3. MUT-III main harness A (Vehicles with CAN communication system)
  4. MUT-III main harness B (Vehicles without CAN communication system)
  5. MUT-III main harness C (for Daimler Chrysler models only)
  6. MUT-III measurement adapter
  7. MUT-III trigger harness
 MB991824-KIT
NOTE: G: MB991826 MUT-III trigger harness is not necessary when pushing V.C.I. ENTER key.
 SWS communication line check (ECU check and service data)
CAUTION: MUT-III main harness B (MB991911) should be used. MUT-III main harness A and C should not be used for this vehicle.
