Wave Pattern Check Using An Oscilloscope
>>
Measurement Method
>>
Notes
Measurement Method: Notes
Connect the oscilloscope special patterns pick-up to the generator "B" terminal.

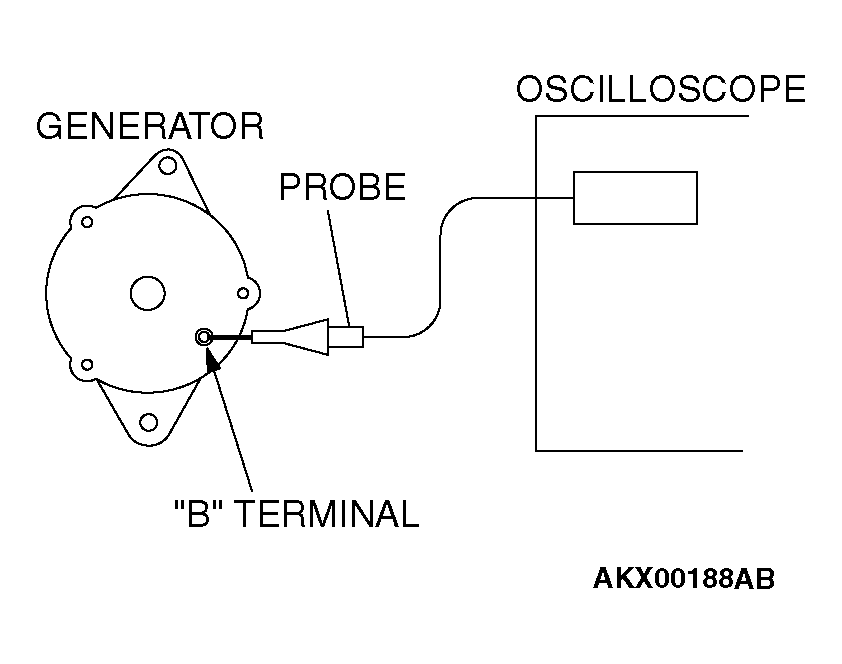

Fig 1: Checking Wave Pattern With Oscilloscope
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
