Removal And Installation: Notes
WARNING:
For removal and installation of the passenger's side air bag module, always observe the service procedures described in AIR BAG MODULE AND CLOCK SPRING
.

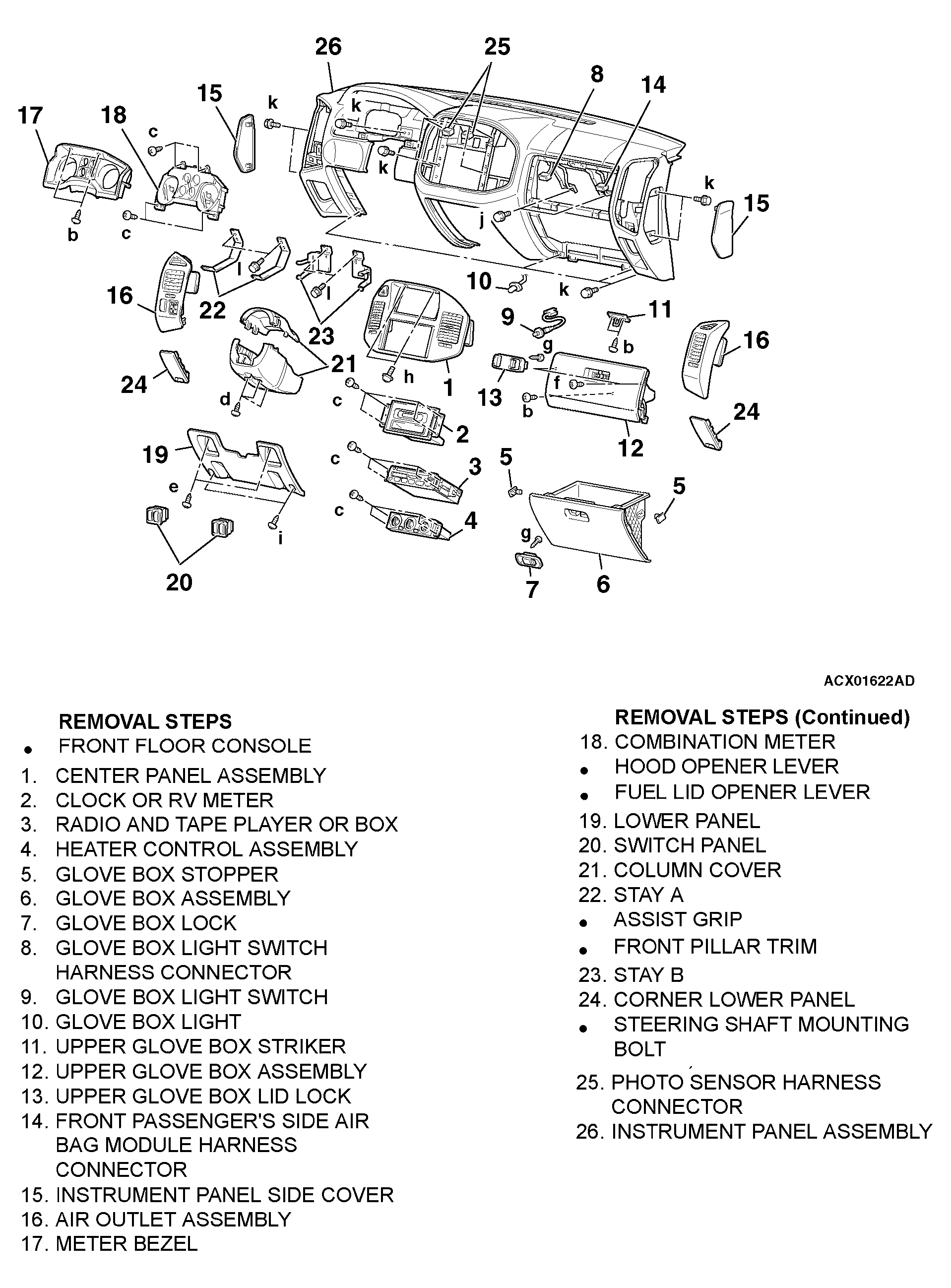

The bolts and screws described below are used for installation of the instrument panel. They are indicated by symbols in the illustration.
SCREW AND BOLTS SPECIFICATION

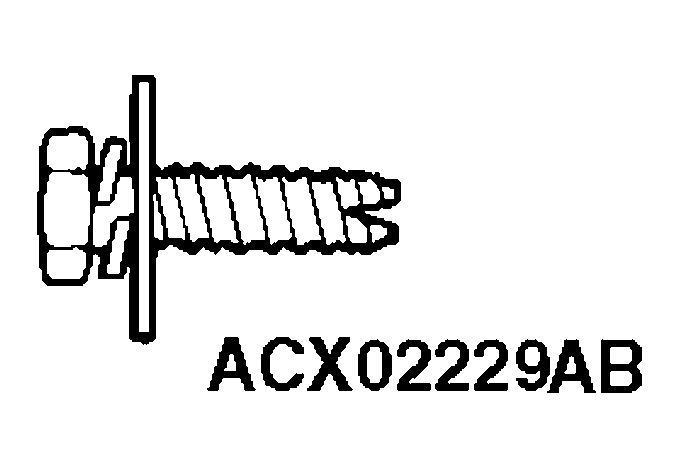

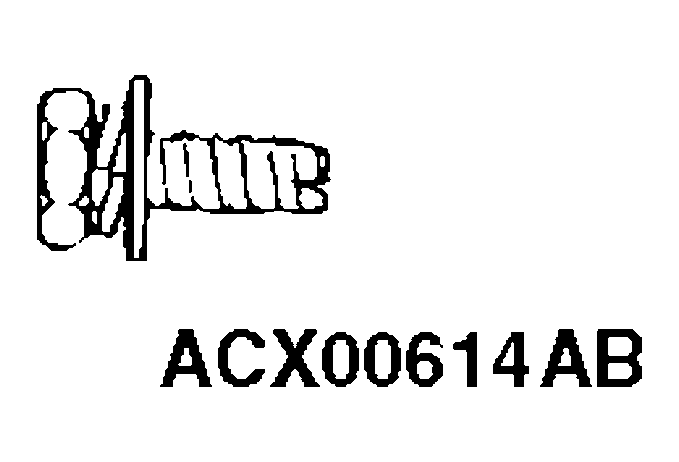

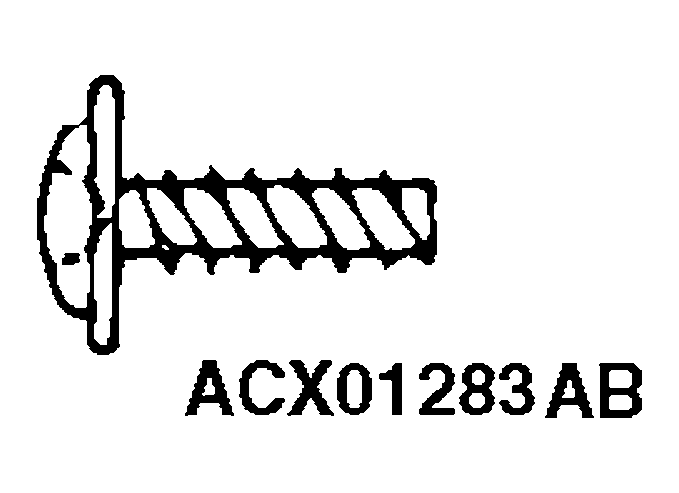

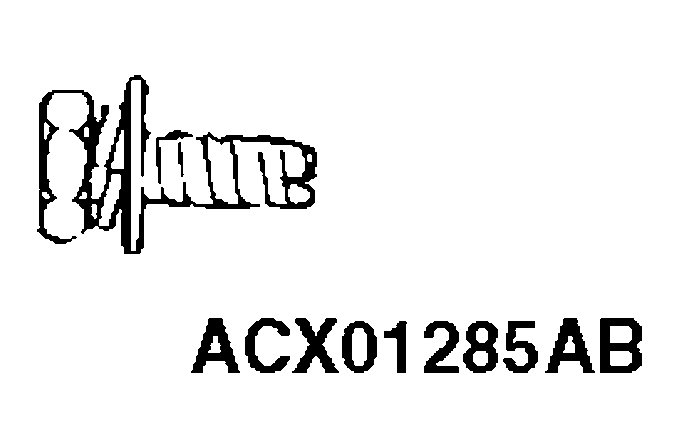

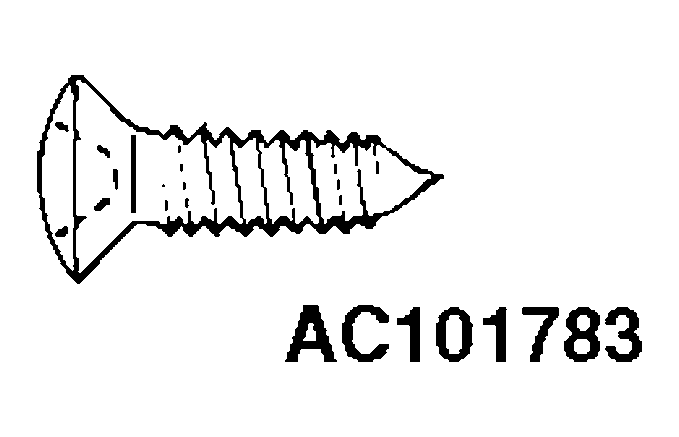

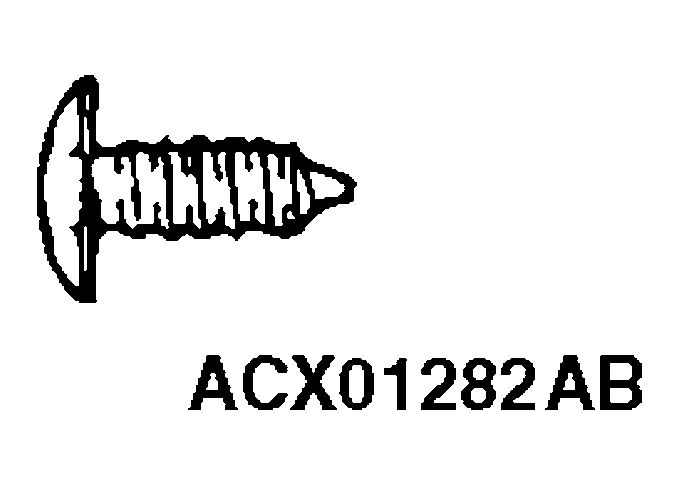

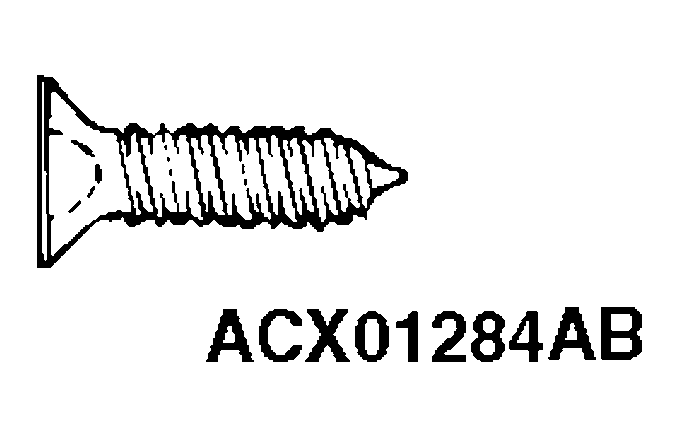

| NAME | SYMBOL | SIZE (D x L) mm (in) | COLOR | SHAPE |
|---|---|---|---|---|
| Tapping screw | a | 5 x 12 (0.20 x 0.47) | - | |
| b | 5 x 16 (0.20 x 0.63) | Black | ||
| c | 5 x 16 (0.20 x 0.63) | - | ||
| d | 5 x 20 (0.20 x 0.79) | - | ||
| e | 5 x 20 (0.20 x 0.79) | Black | ||
| f | 5 x 16 (0.20 x 0.63) | Black | ||
| g | 4 x 20 (0.16 x 0.79) | Black | ||
| Washer assembled bolt | h | 5 x 16 (0.20 x 0.63) | - | |
| Washer assembled bolt | i | 5 x 20 (0.20 x 0.79) | Black | |
| j | 6 x 16 (0.24 x 0.63) | - | ||
| k | 6 x 16 (0.24 x 0.63) | Black | ||
| l | 6 x 20 (0.24 x 0.79) | - | ||
| D: Thread diameter L: Effective thread length | ||||
