Home >> Mitsubishi >> 2006 >> Montero >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Supplemental Restraint System >> General Description >> Schematic

Supplemental Restraint System: General Description: Schematic

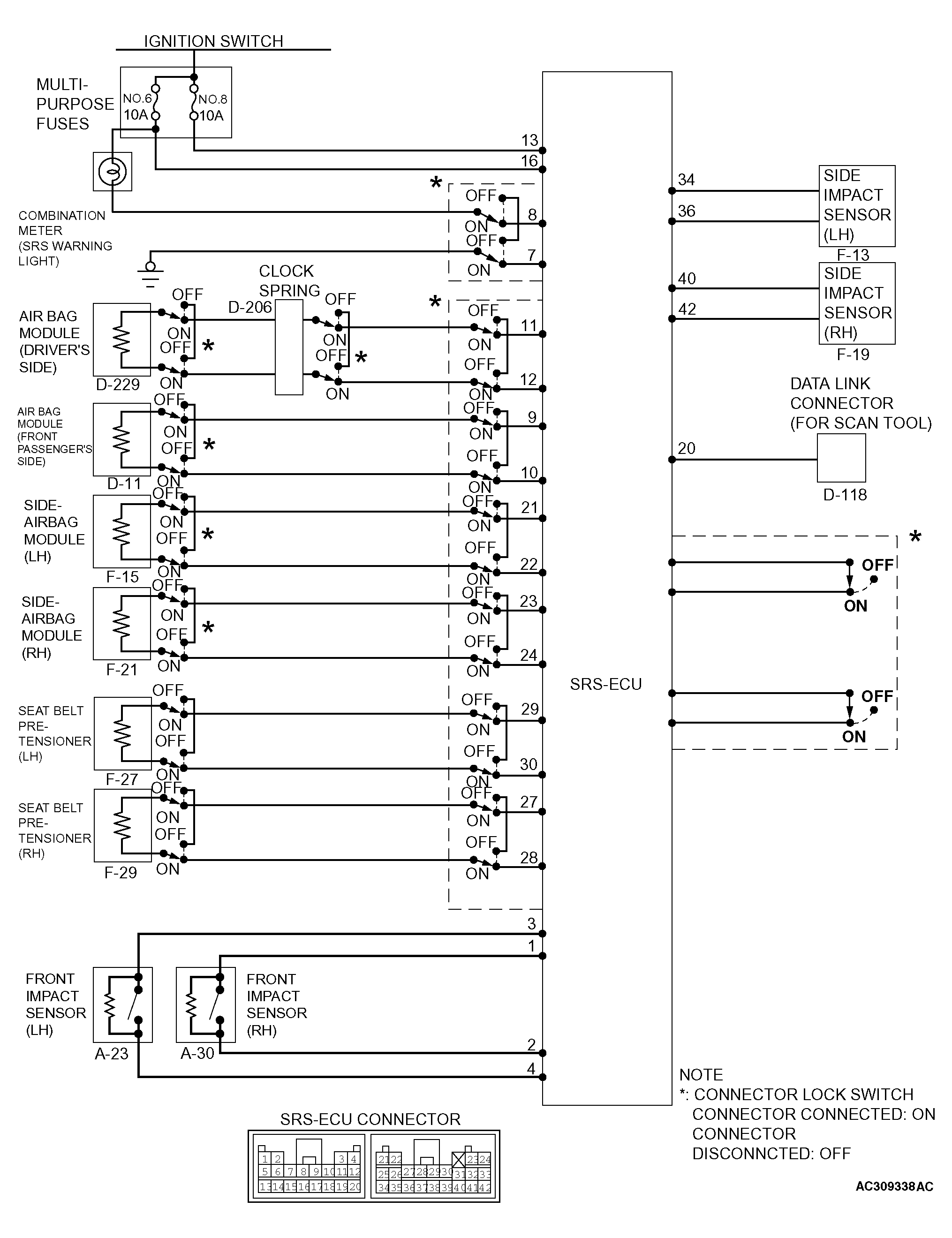

Fig 1: Schematic Diagram

G04267882

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
