Home >> Mitsubishi >> 2006 >> Outlander LS, FWD, Automatic >> Repair and Diagnosis >> Engine Performance >> Tune-Up >> Ignition System >> Knock Sensor >> Removal And Installation >> Notes

Removal And Installation: Notes

CAUTION: When the knock sensor replacement is performed, use scan tool MB991958 to initialize the learning value (refer to - INITIALIZATION PROCEDURE FOR LEARNING VALUE IN MFI ENGINE ).

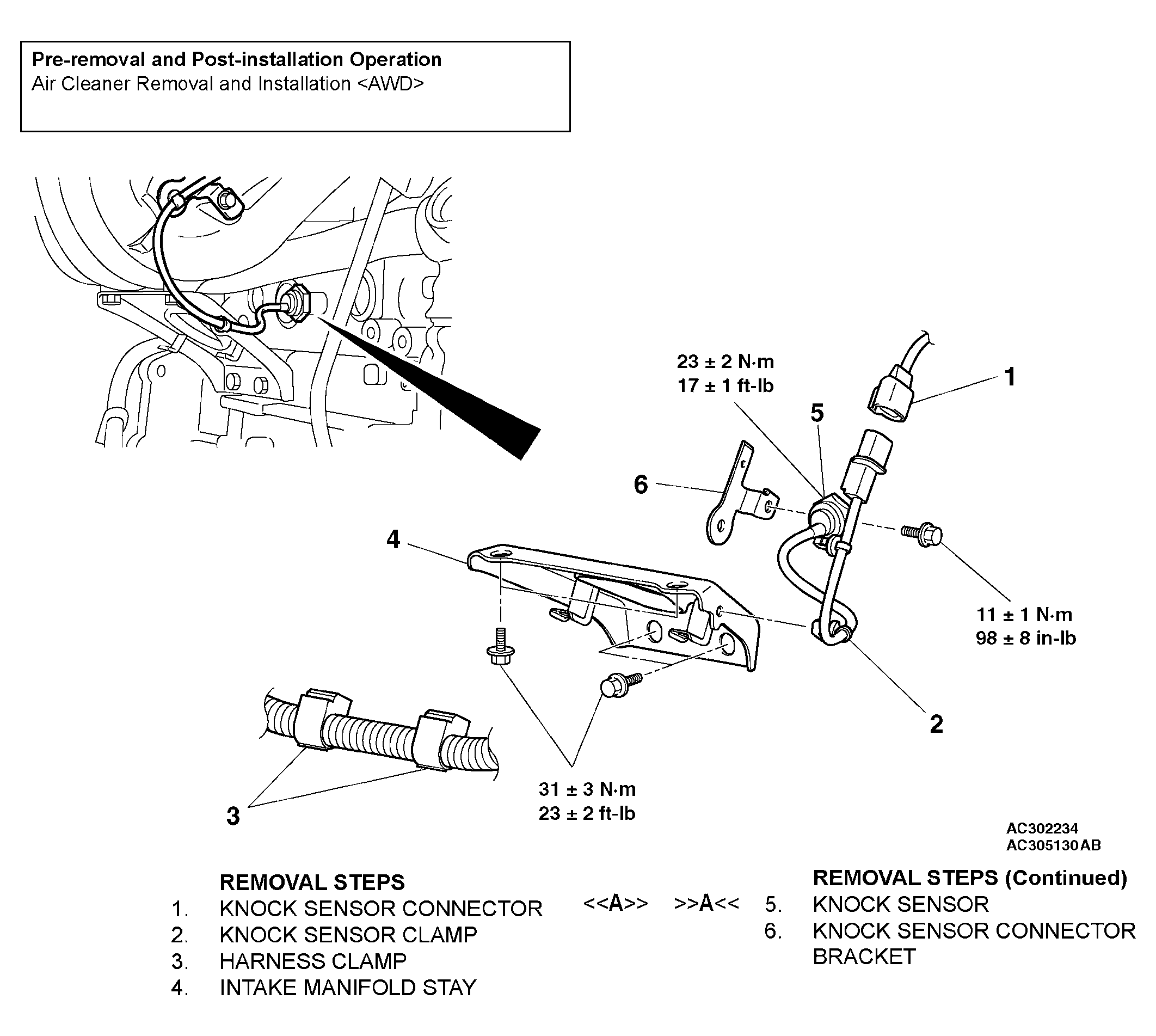

Fig 1: Removal And Installation Of Knock Sensor
G04302109Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

MD998773: Knock Sensor Wrench
