Vehicle Identification Code Plate: Notes

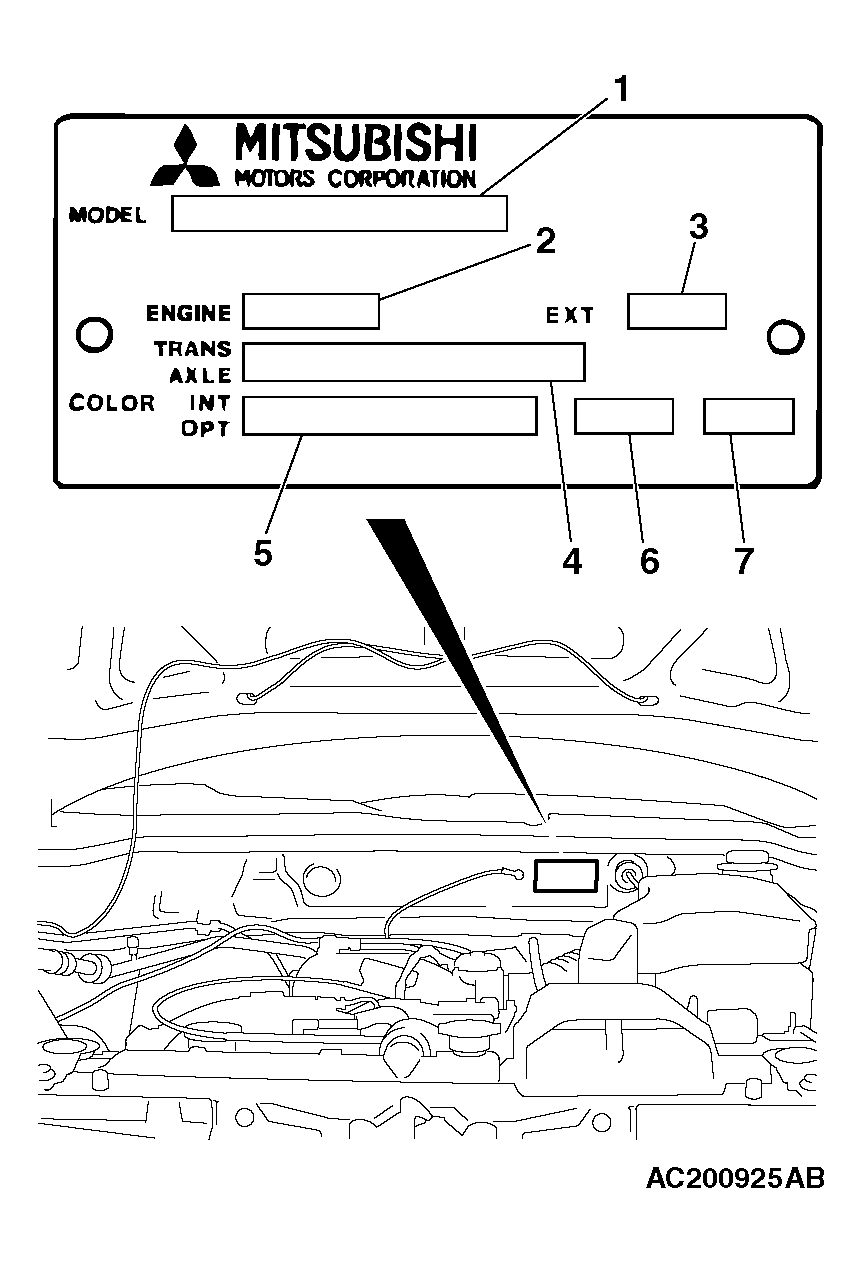

The vehicle information code plate is riveted onto the cowl top outer panel in the engine compartment.
The plate shows model code, engine model, transaxle model and body color code.
VEHICLE IDENTIFICATION CODE DESCRIPTION
| NO. | ITEM | CONTENT | |
|---|---|---|---|
| 1 | MODEL | CU5WXRM YL2M | CU5WX: Vehicle model |
| RMYL2M: Model series | |||
| 2 | ENGINE | 4G69 | Engine model |
| 3 | EXT | G44B | Exterior code |
| 4 | TRANS AXLE | F4A4B | Transaxle model |
| 5 | COLOR | G44 | Body color code |
| 6 | INT | 11E | Interior code |
| 7 | OPT | Z06 | Equipment code |
For monotone color vehicles, the body color code shall be indicated.
