Module - Electronic Overhead: Installation

NOTE: If a new Electronic Overhead Module (EOM) has been installed, the compass will have to be calibrated and the variance set. (Refer to COMPASS CALIBRATION ) and (Refer to COMPASS VARIATION ADJUSTMENT ).

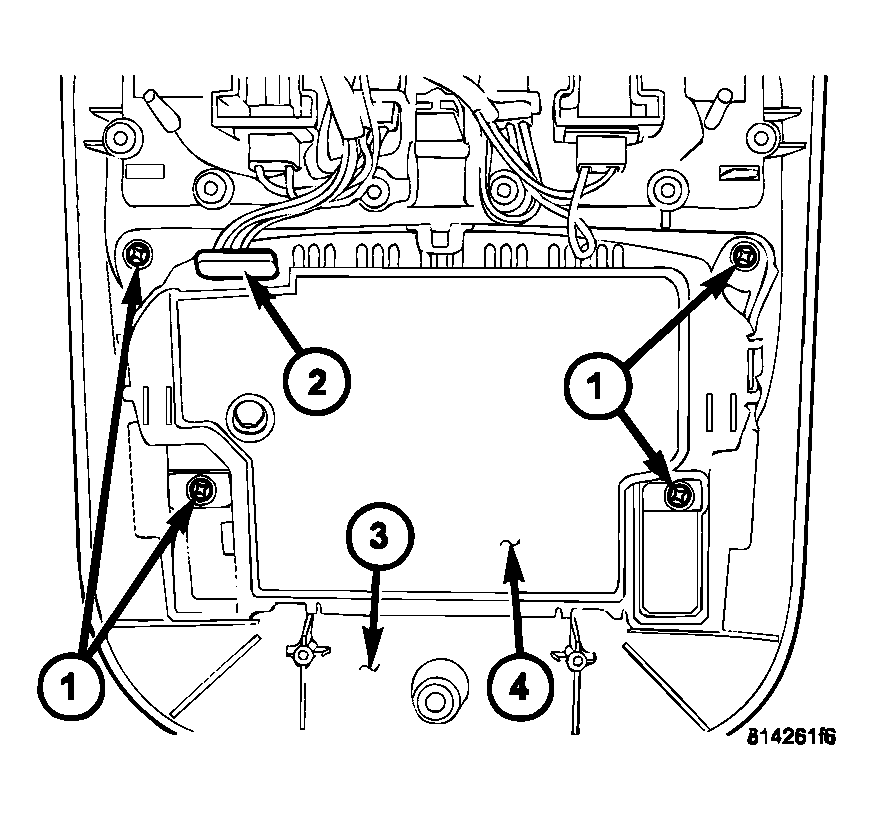

Fig 1: Positioning Electronic Overhead Module Onto Overhead Console Housing

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

1. Position the Electronic Overhead Module (EOM) (4) onto the overhead console housing (3).
2. Reconnect the overhead console wire harness connector to the EOM connector receptacle (2).
3. Install the screws (1) that secure the EOM (4) to the overhead console housing (3). Tighten the screws to 2 N.m (20 in. lbs.).
4. Install the overhead console (3) onto the headliner (Refer to INSTALLATION ).
5. Reconnect the battery negative cable.
