TCL Switch Continuity Check

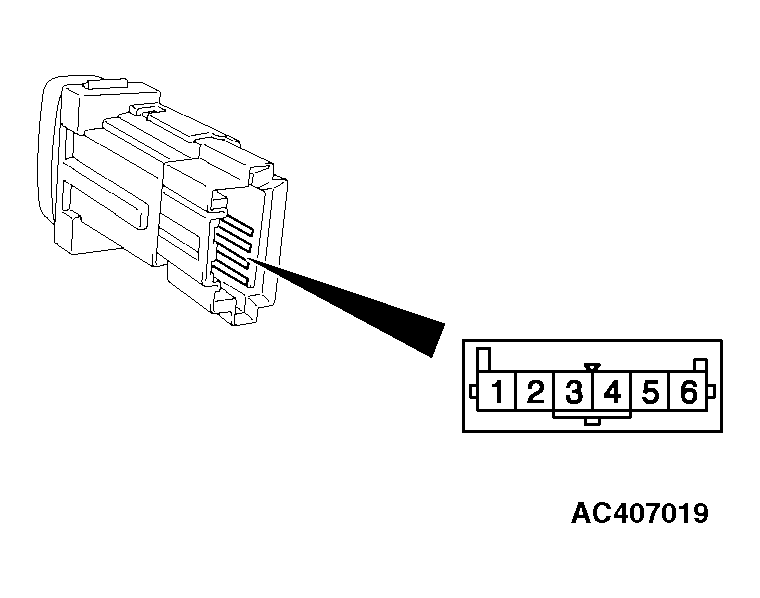

Fig 1: Checking TCL Switch Continuity
G04232358Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
SWITCH POSITION TESTER CONNECTION SPECIFIED CONDITION CHART

SWITCH POSITION TESTER CONNECTION SPECIFIED CONDITION
Pressed 1-2 Less than 2 ohms
Released 1-2 Open circuit
