Stator Check

  1. Check for continuity between the coil lead. If there is no continuity, replace the stator.

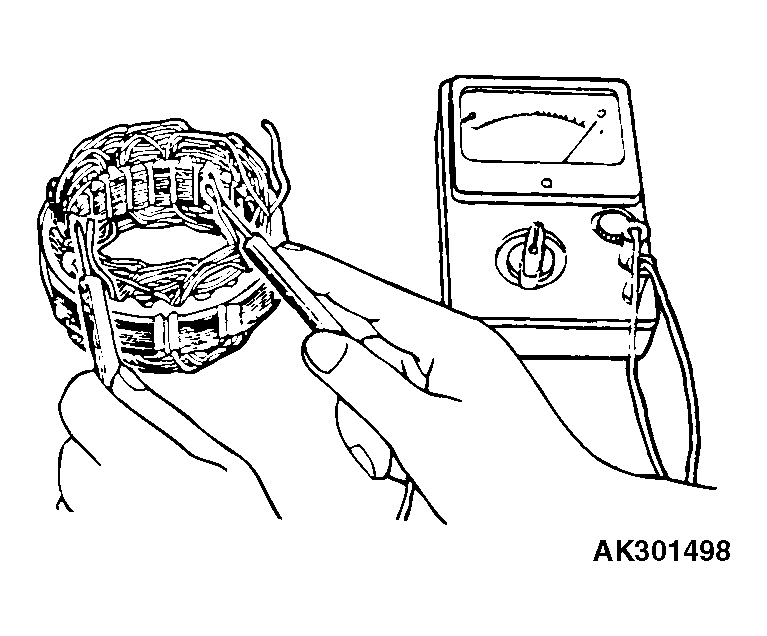

    Fig 1: Checking Continuity Between Coil Lead
    G04271521Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Check for continuity between the coil and the core. If there is continuity, replace the stator.

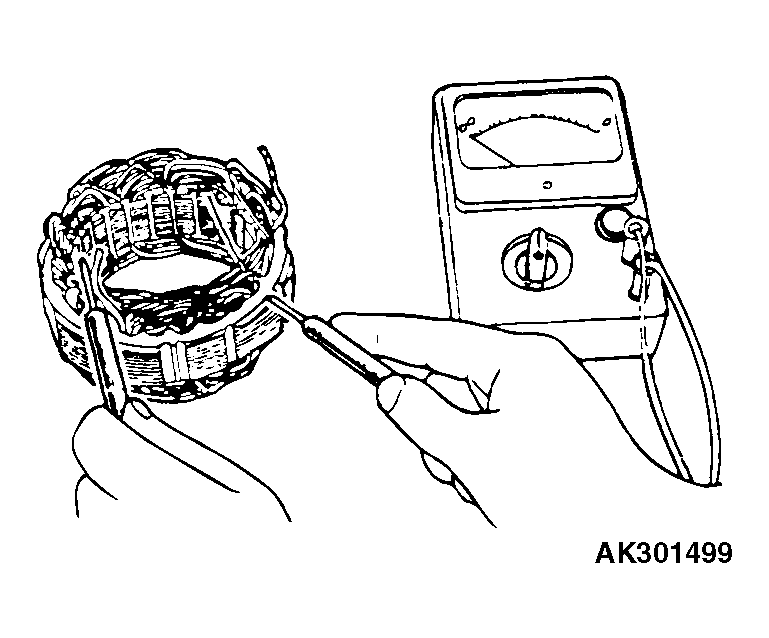

    Fig 2: Checking Continuity Between Coil And Core
    G04271522Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
