Measurement Method

Connect the oscilloscope special patterns pick-up to the generator "B" terminal.

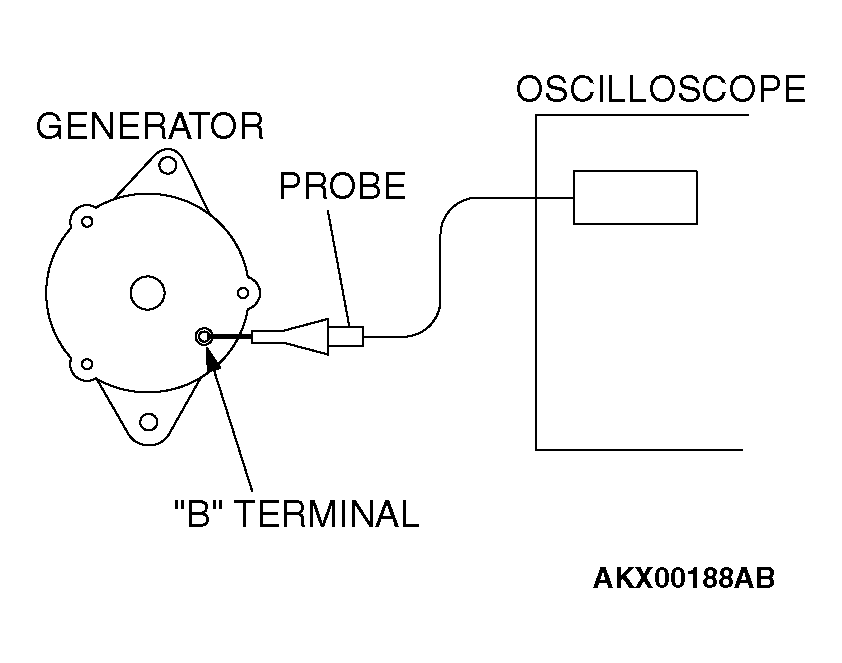

Fig 1: Connecting Oscilloscope Patterns To Generator Terminal
G04271506Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
