Removal And Installation: Notes

Pre-removal and Post-installation Operation

Under Cover Removal and Installation (Refer to UNDER COVER ).

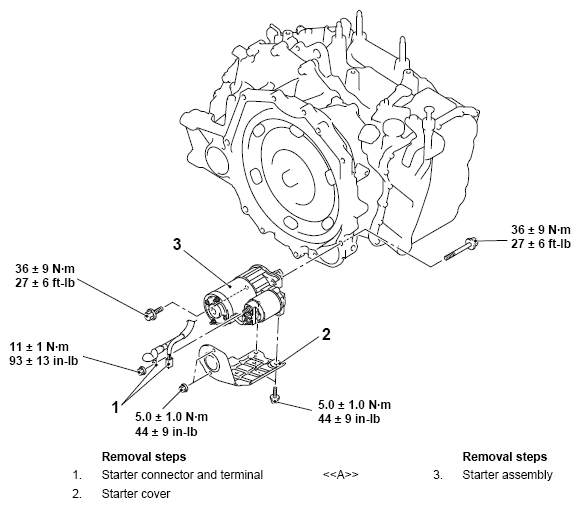

Fig 1: Starter Motor Removal / Installation Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
