Home >> Mitsubishi >> 2007 >> Outlander ES >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Overhaul >> Transfer >> Disassembly And Reassembly >> Notes

Disassembly And Reassembly: Notes

CAUTION: Refer to "HOW TO USE THIS MANUAL " for the symbols in the schematic.

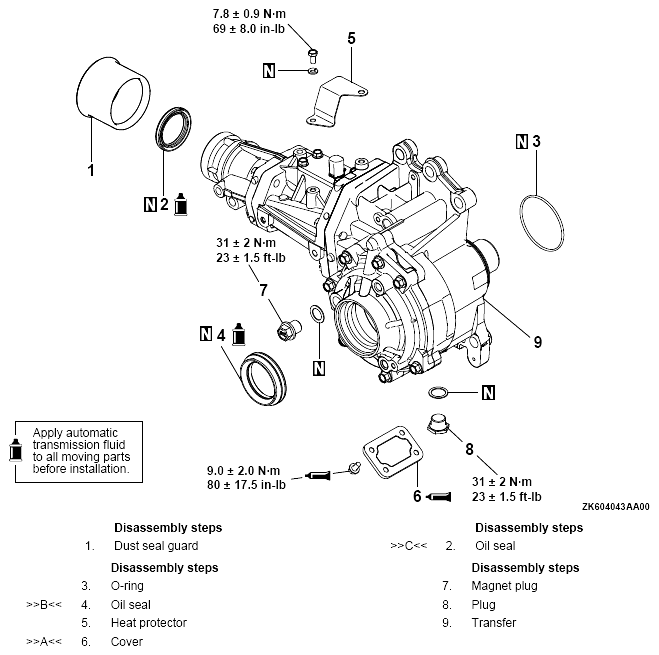

Fig 1: Exploded View Of Transfer With Torque Specifications
G04871452Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
