Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

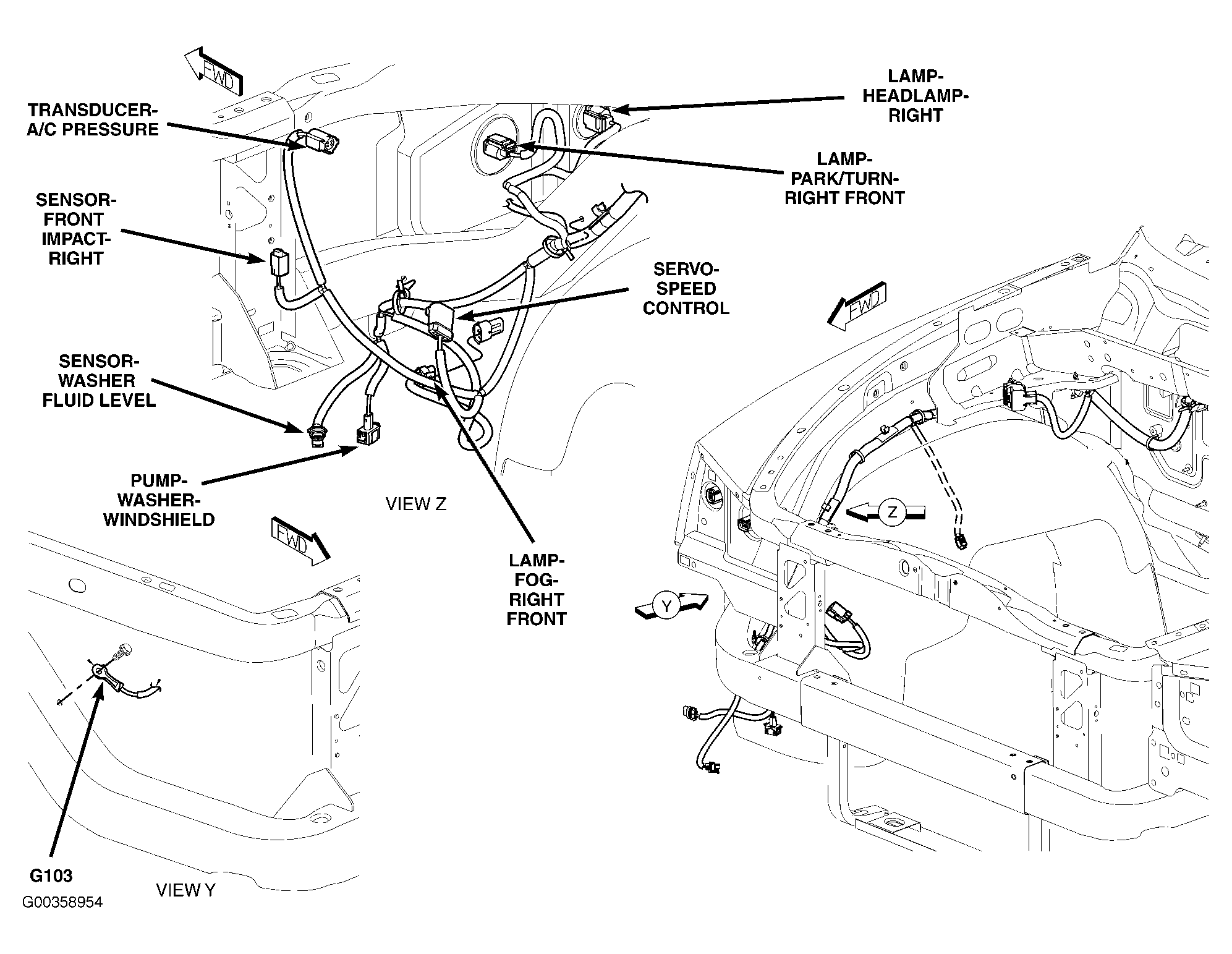

Fig 1: Right Front Of Engine Compartment

G00358954

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

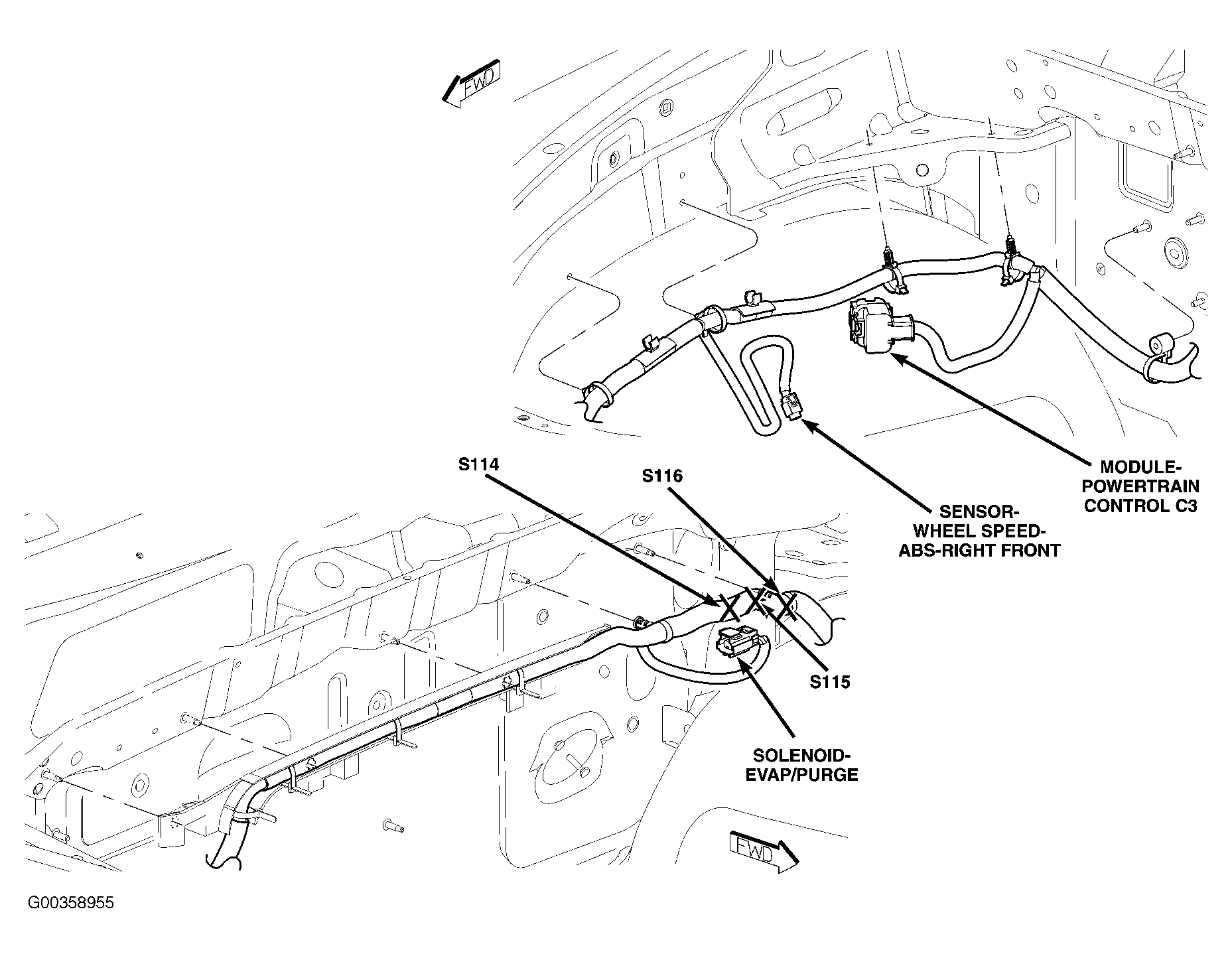

Fig 2: Rear Of Engine Compartment

G00358955

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

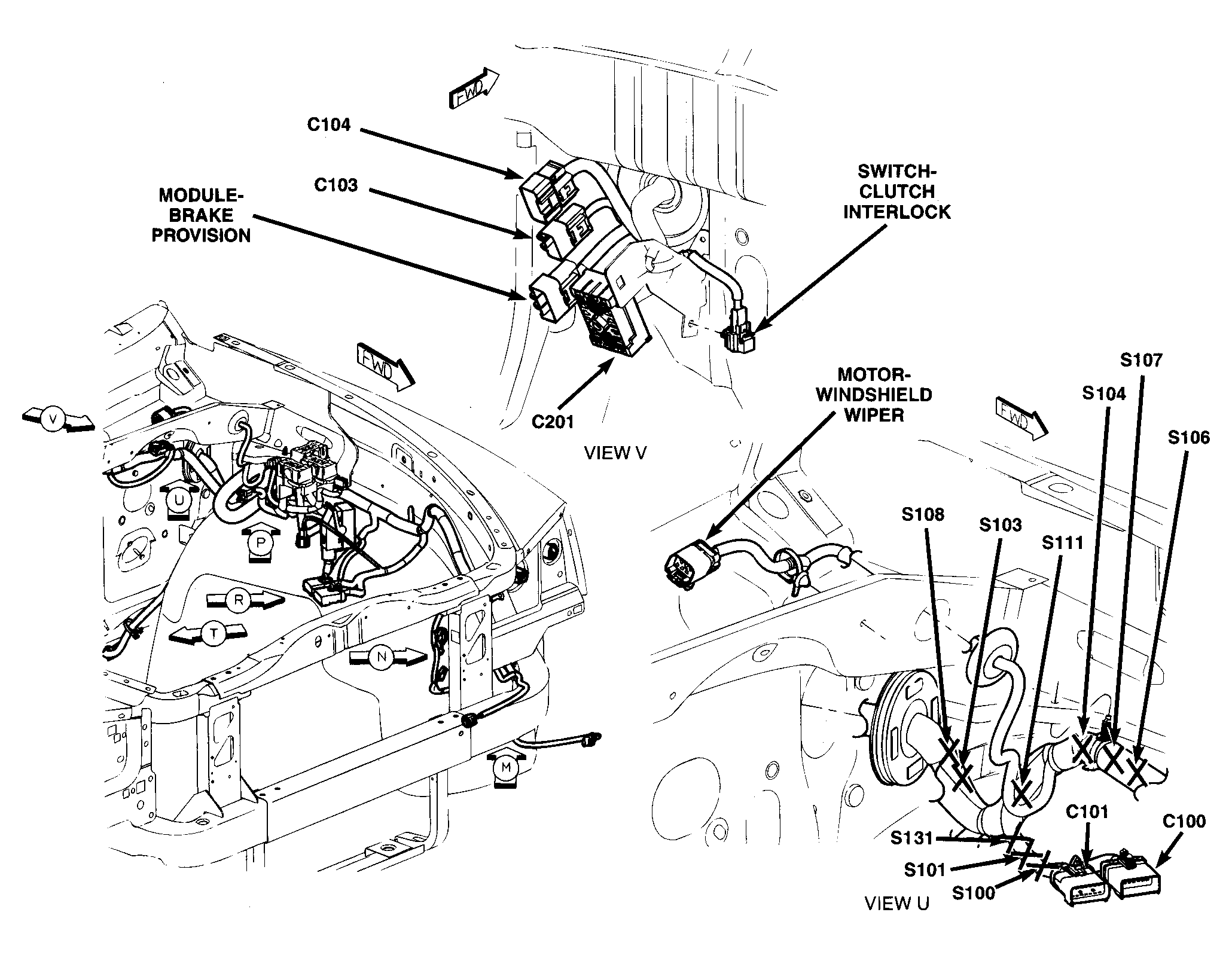

Fig 3: Left Rear Of Engine Compartment

G00451339

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

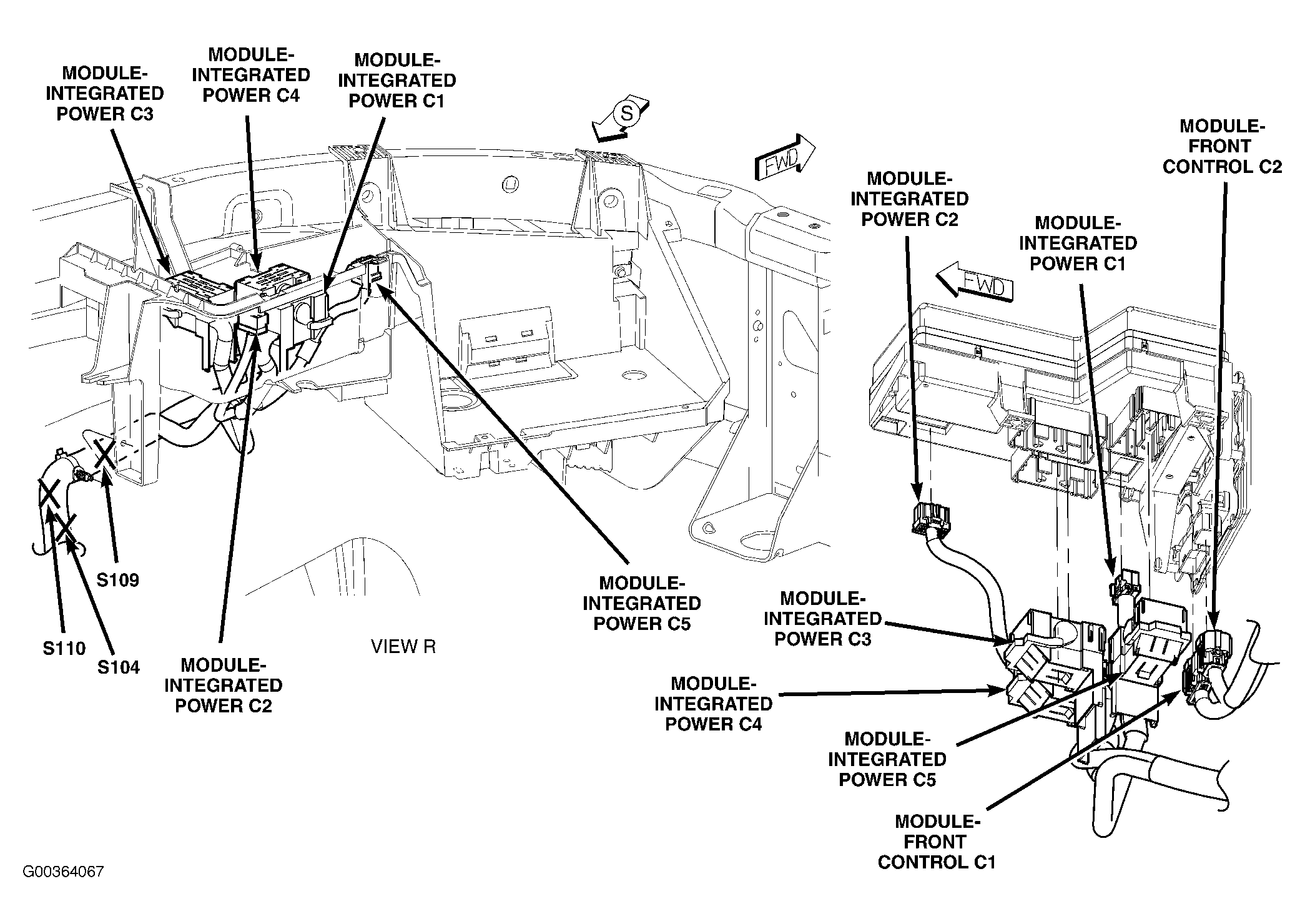

Fig 4: Left Side Of Engine Compartment

G00364067

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

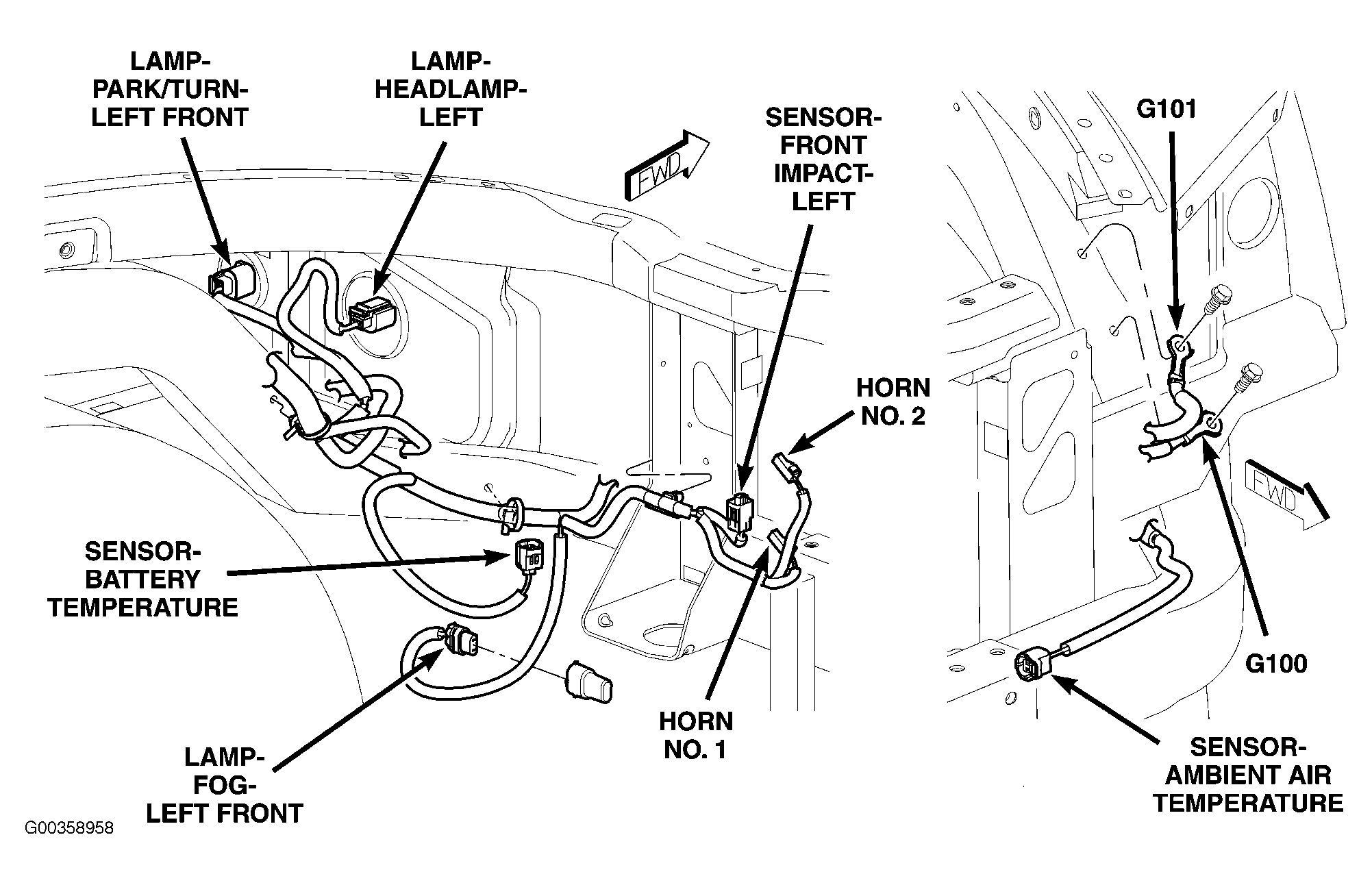

Fig 5: Left Side Of Engine Compartment

G00358958

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

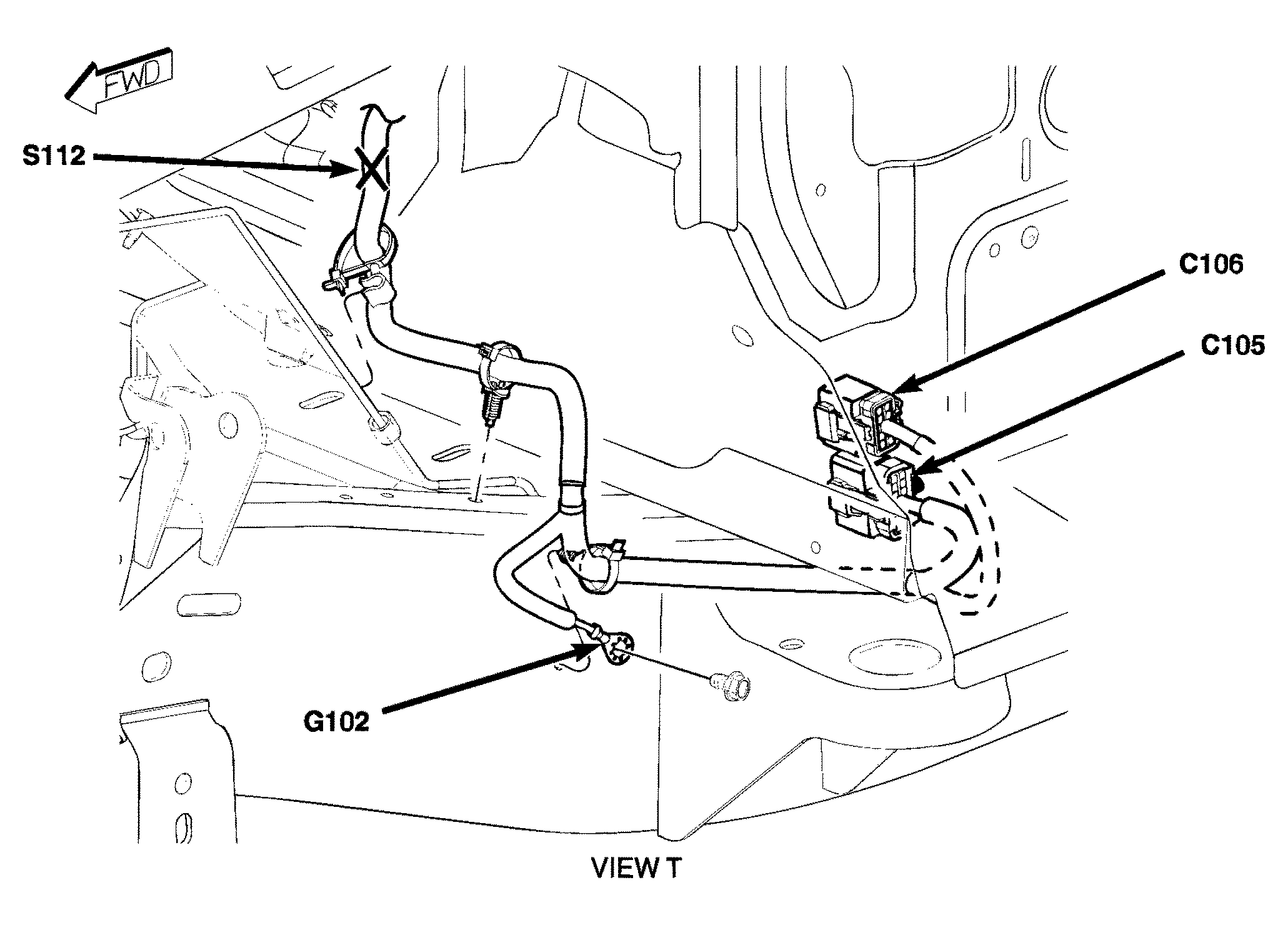

Fig 6: Lower Right Rear Of Engine Compartment

G00451341

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

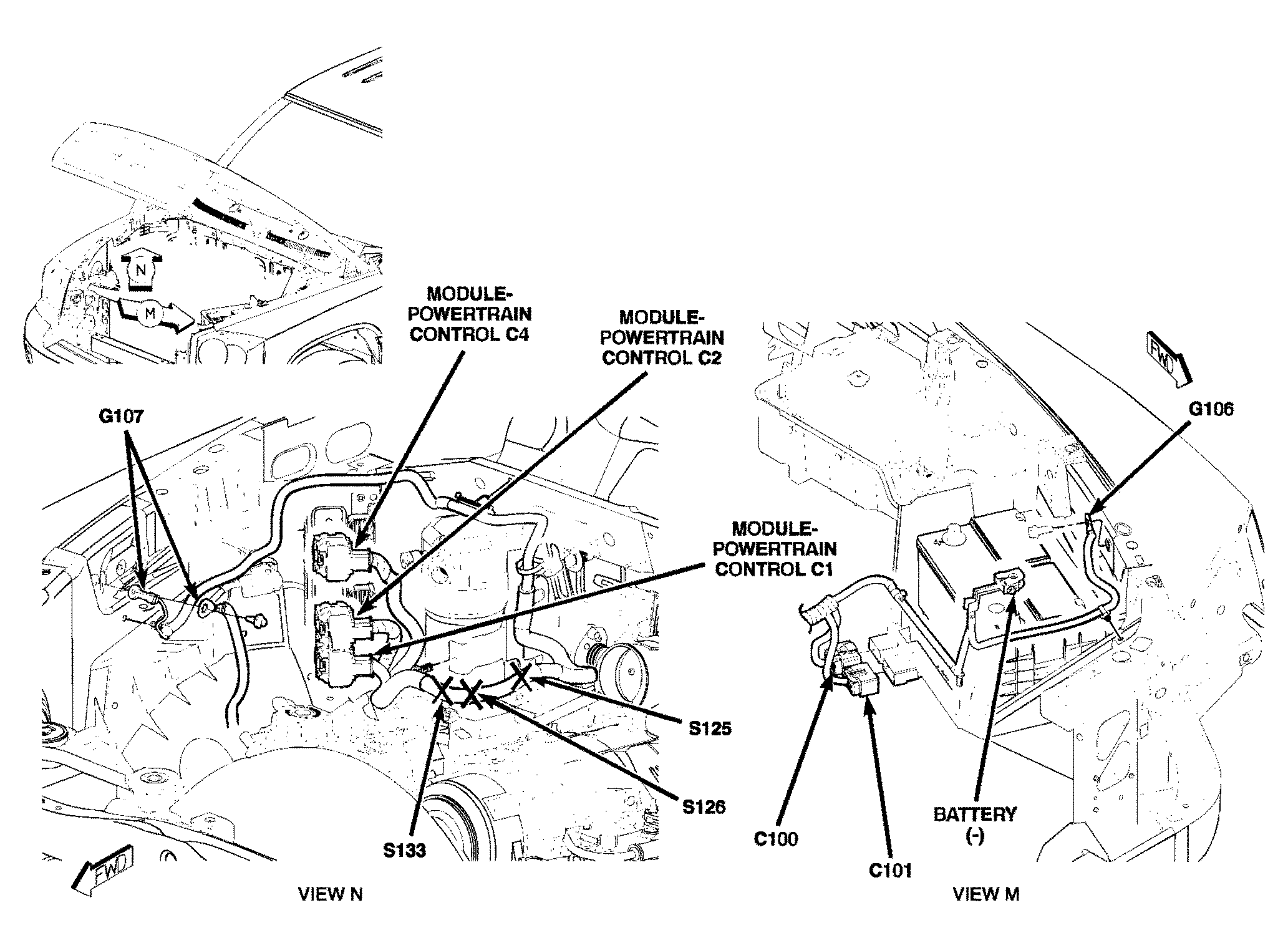

Fig 7: Engine Compartment

G00451340

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

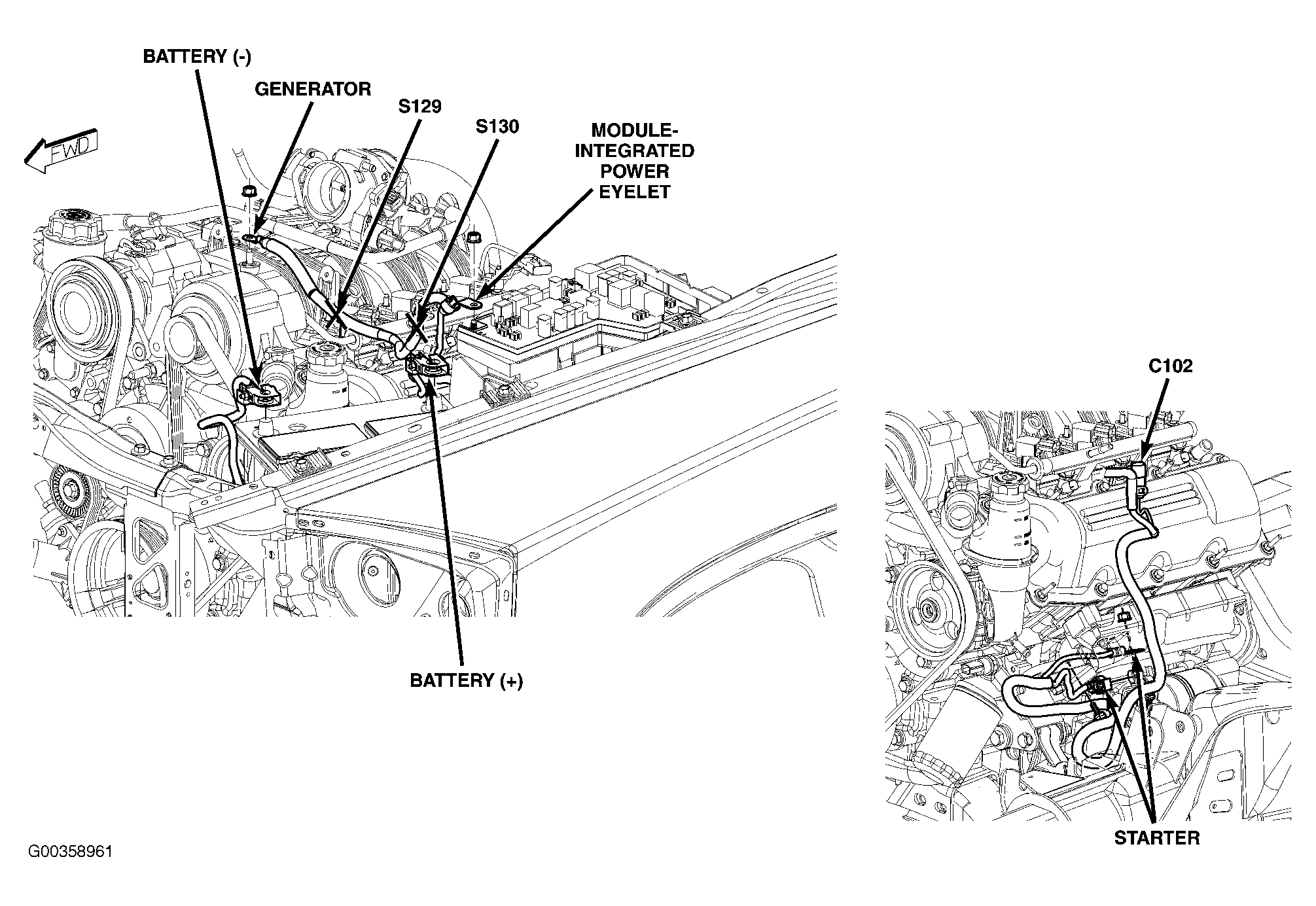

Fig 8: Left Front/Side Of Engine

G00358961

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

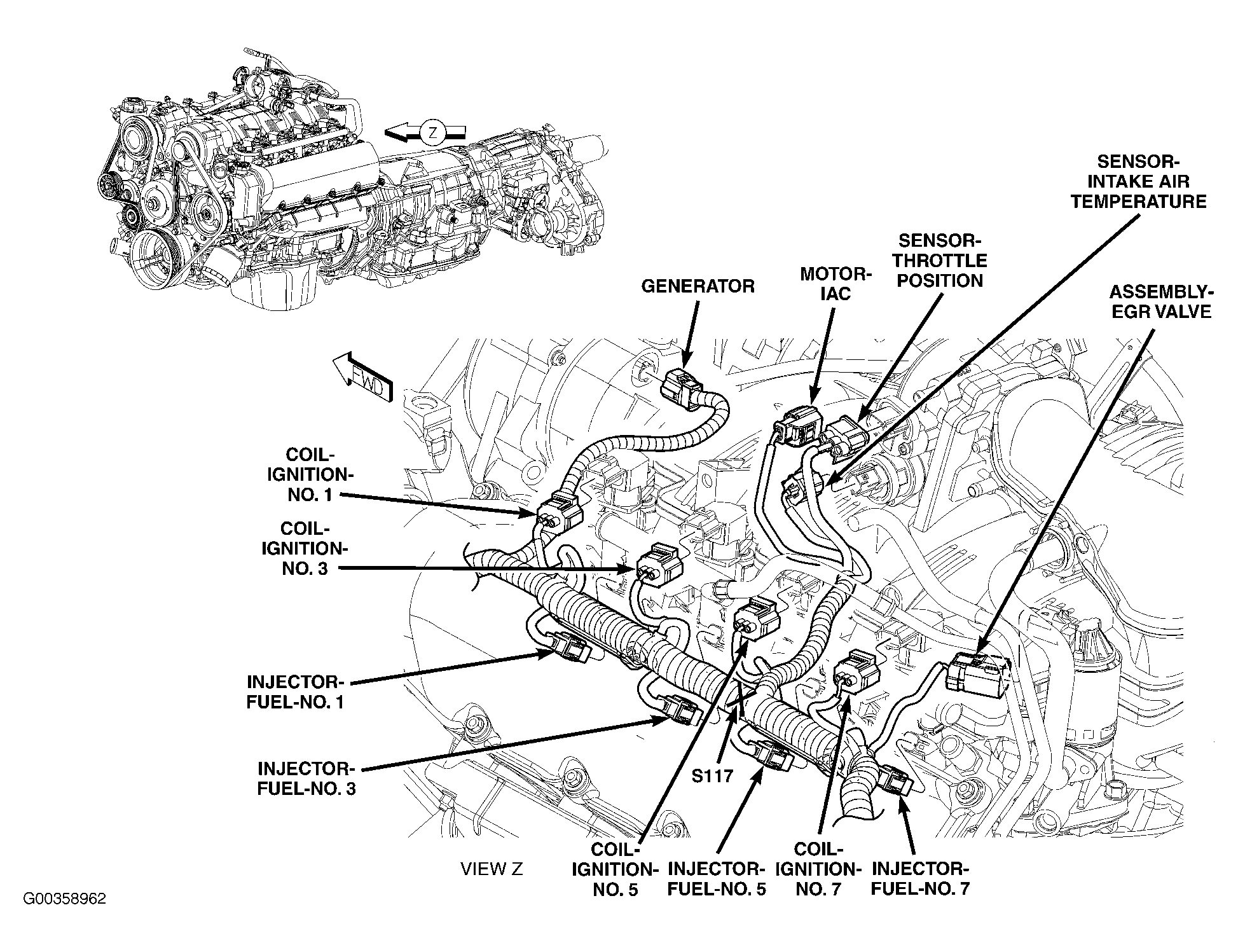

Fig 9: Upper Left Side Of Engine (4.7L)

G00358962

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

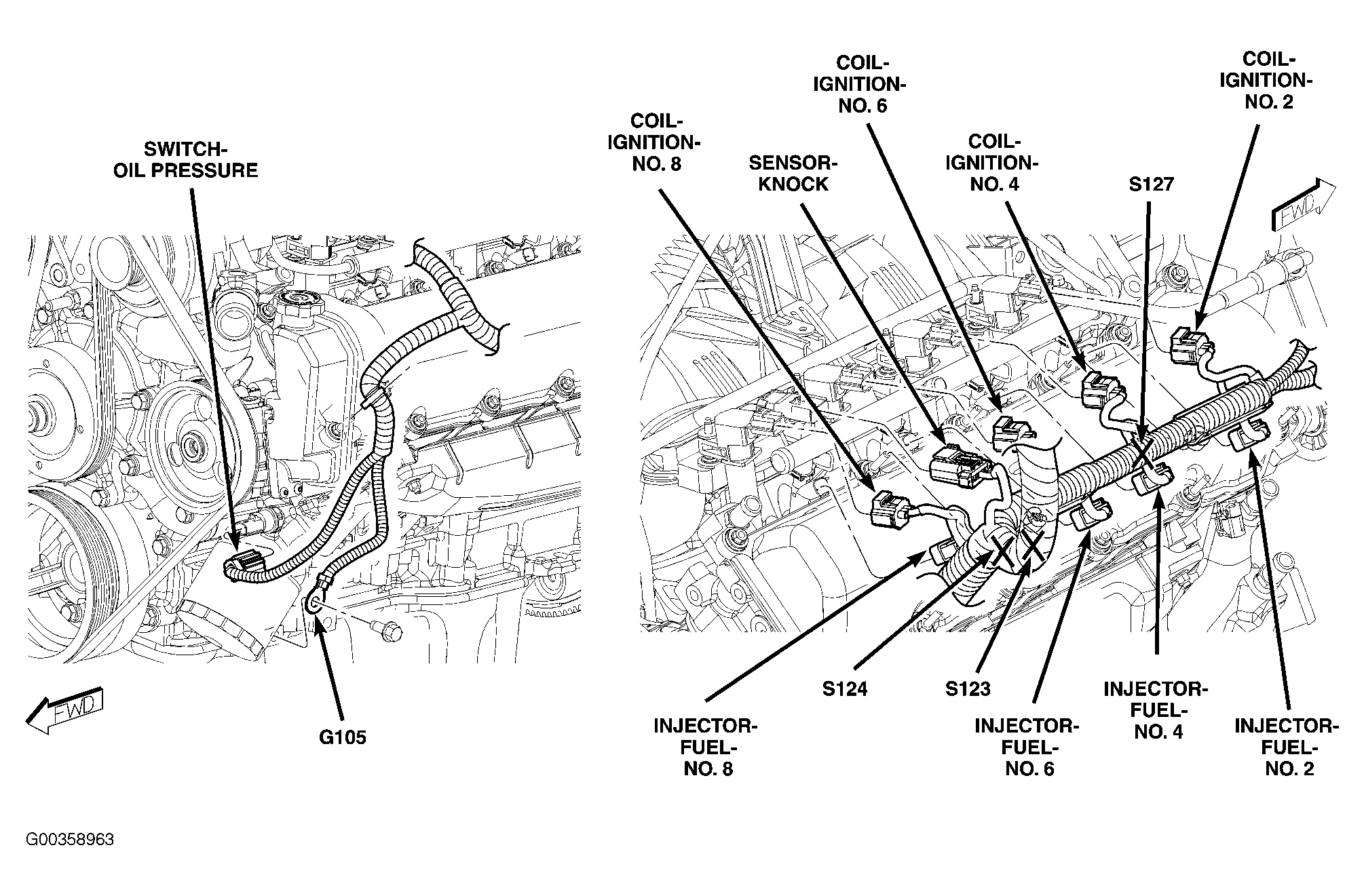

Fig 10: Left Front/Top Right Of Engine (4.7L)

G00358963

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

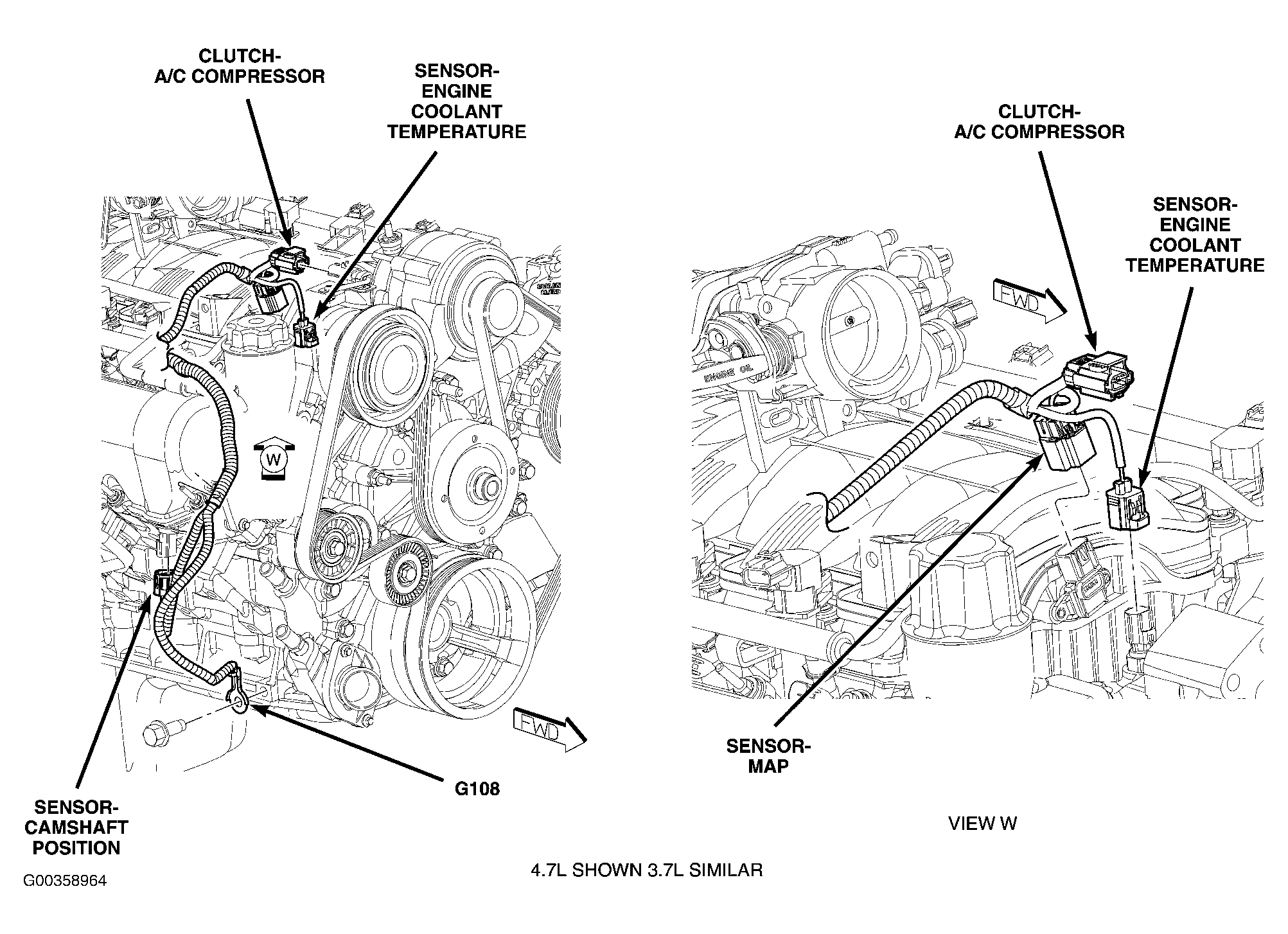

Fig 11: Right Front Of Engine (4.7L) (3.7L Similar)

G00358964

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

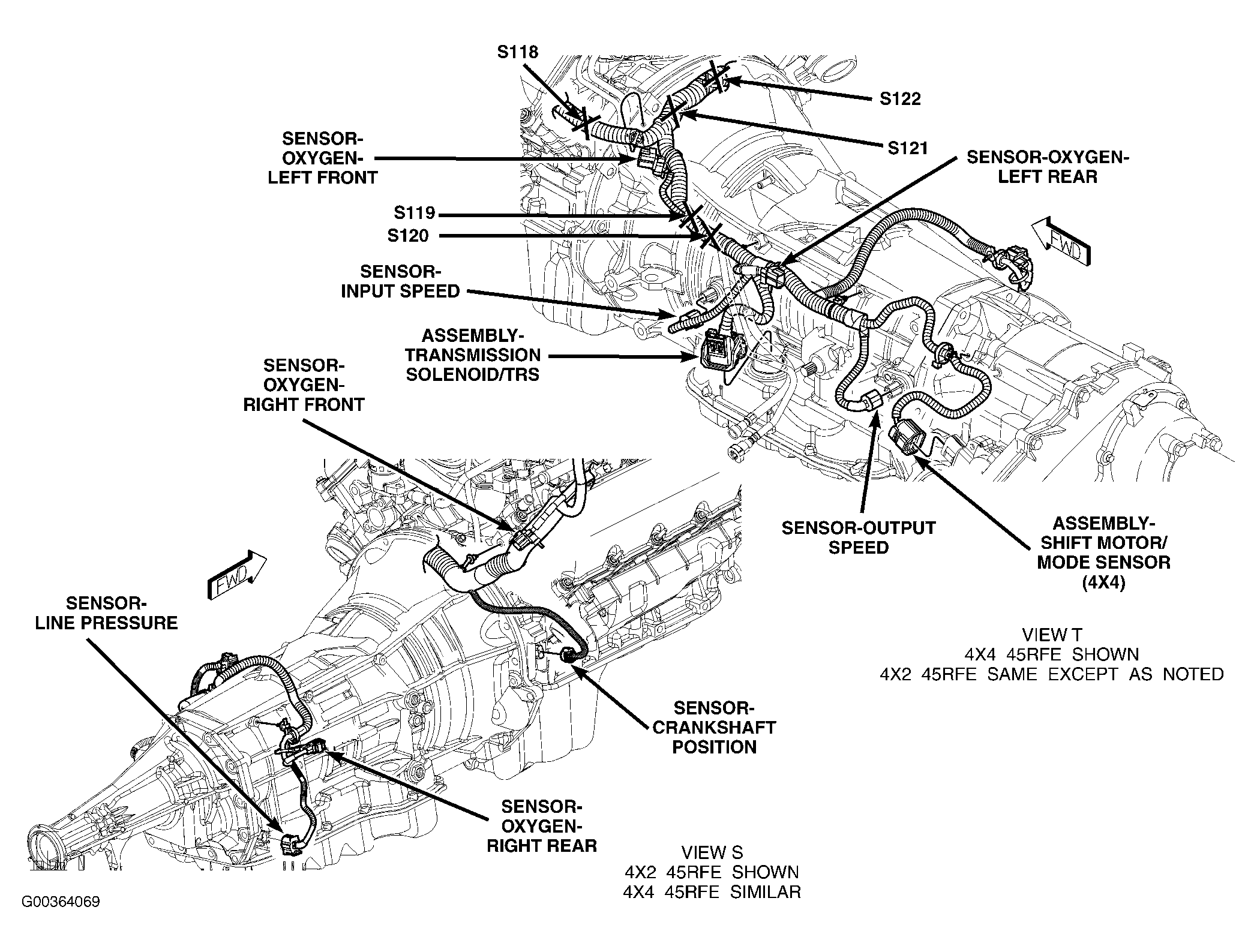

Fig 12: Automatic Transmission (4.7L)

G00364069

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

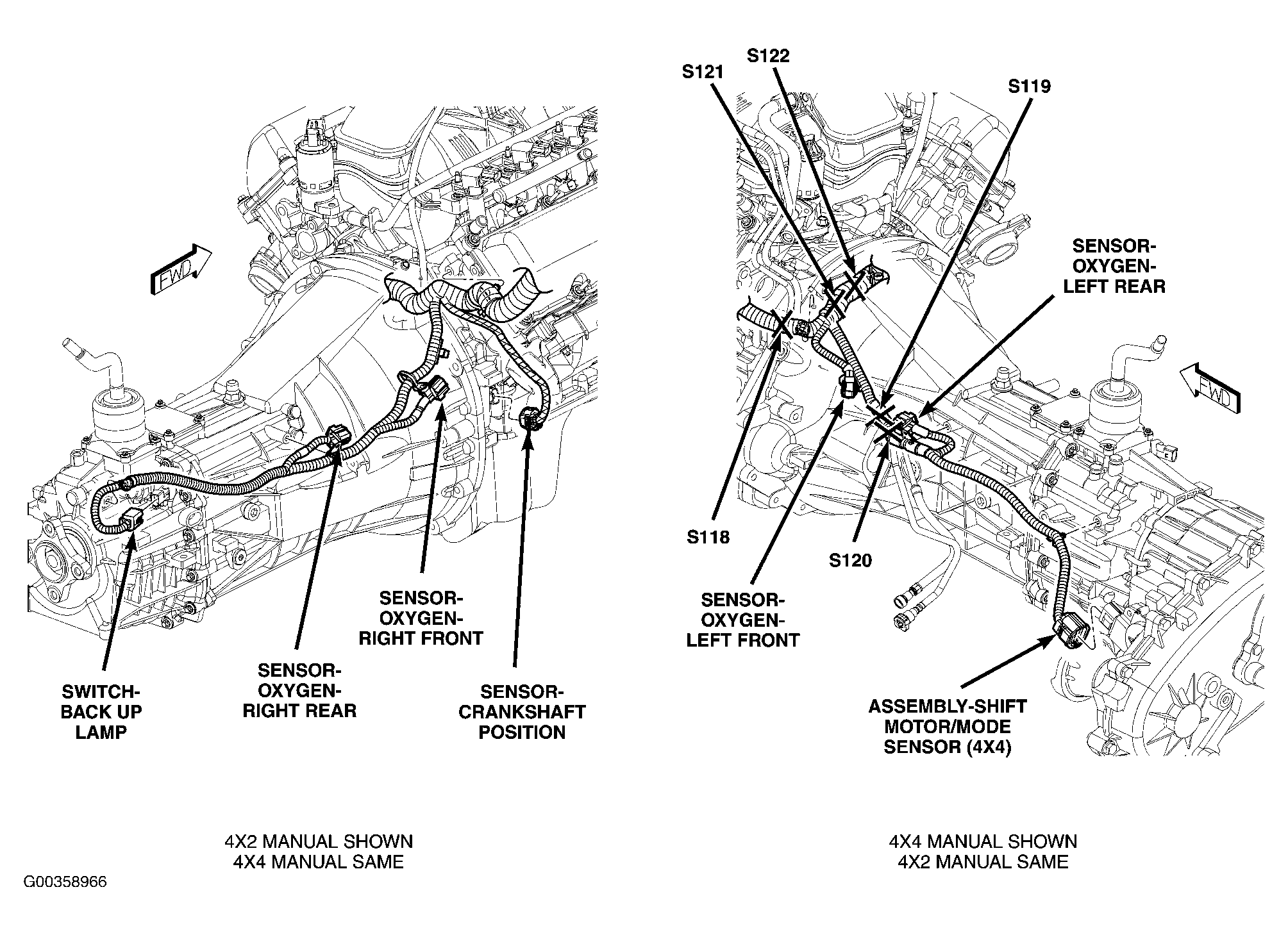

Fig 13: Manual Transmission

G00358966

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

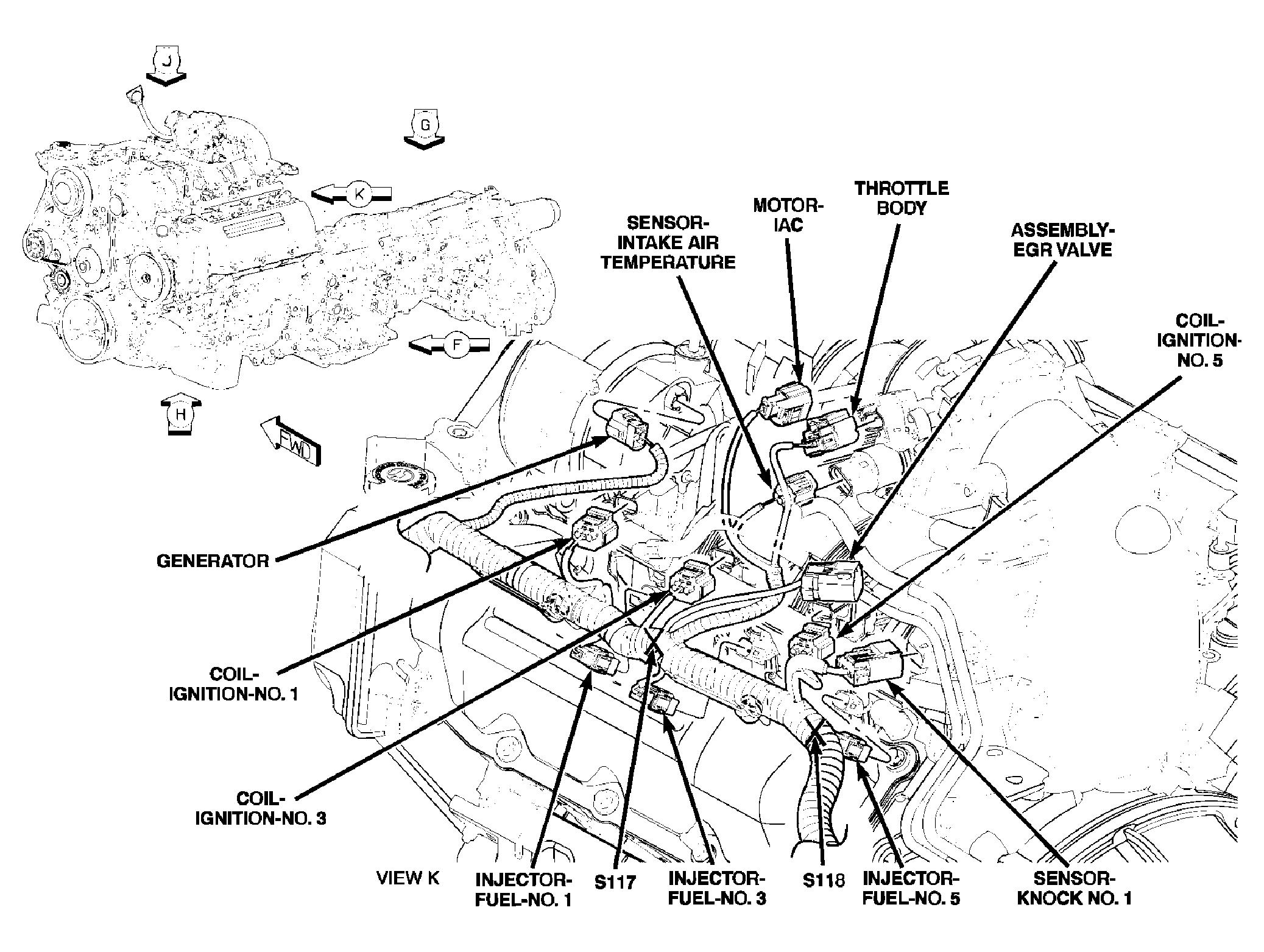

Fig 14: Left Side/Top Of Engine (3.7L)

G00451342

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

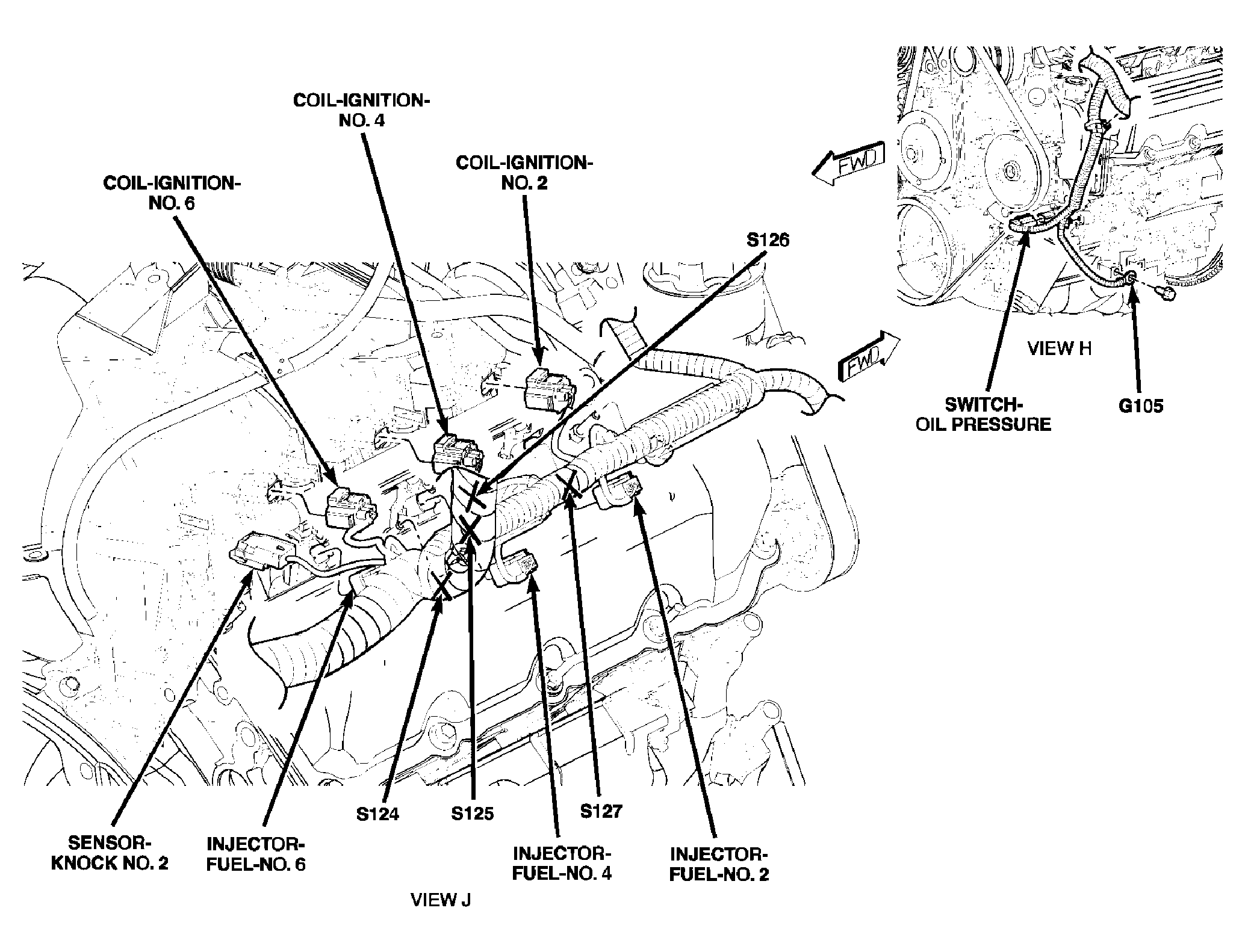

Fig 15: Left Front/Right Side Of Engine (3.7L)

G00451343

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

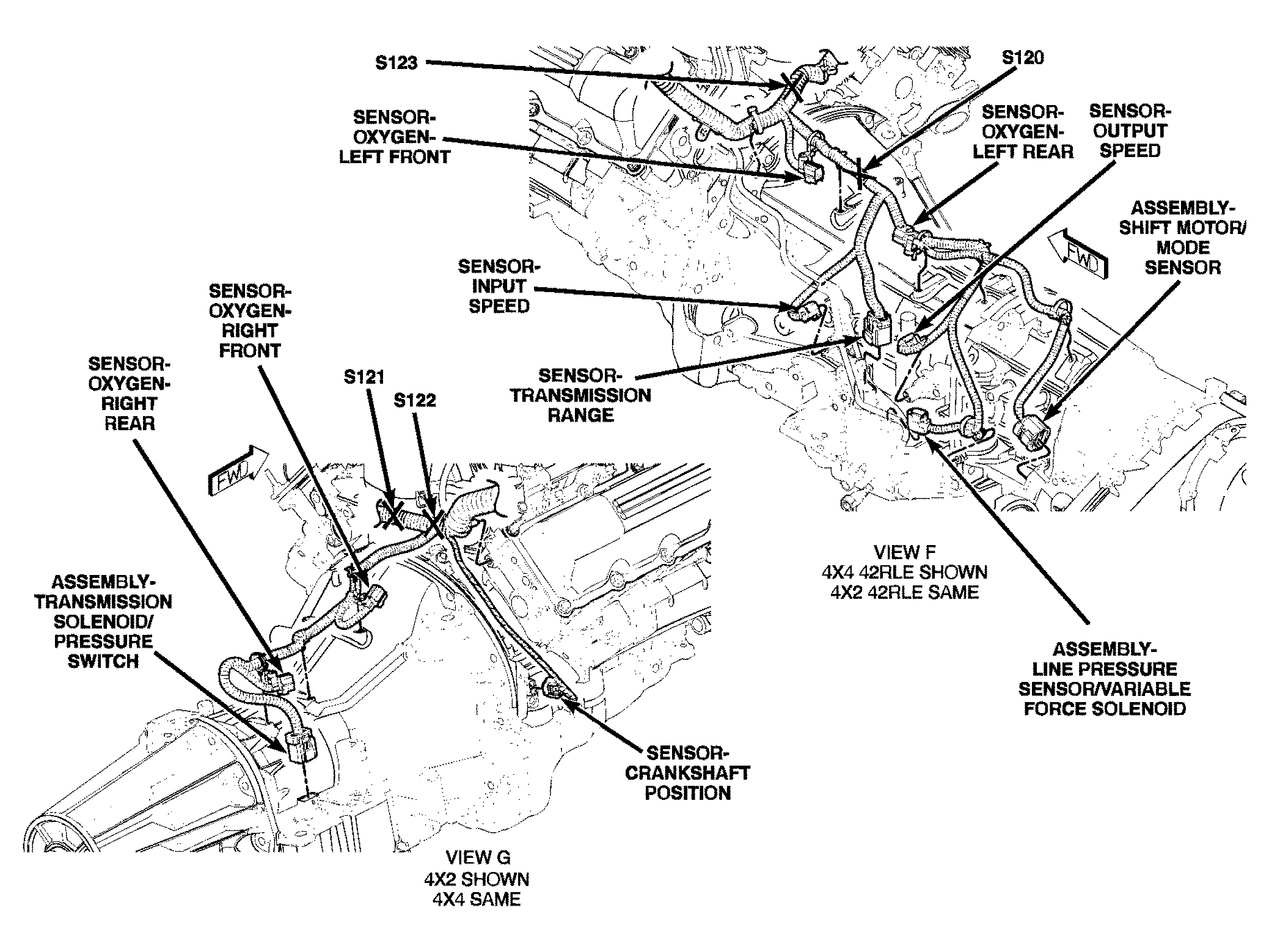

Fig 16: Automatic Transmission (3.7L)

G00451344

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

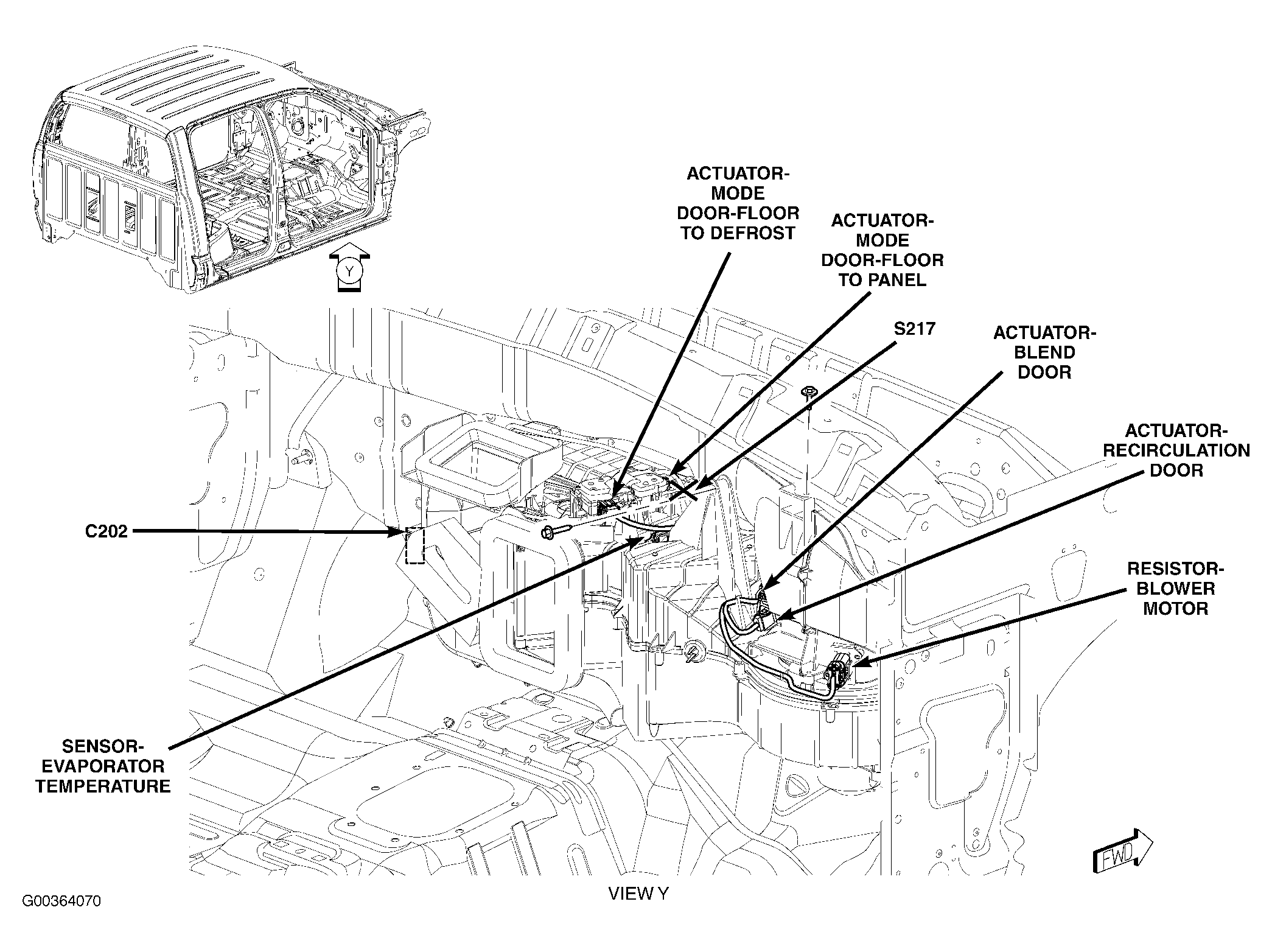

Fig 17: HVAC Unit

G00364070

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

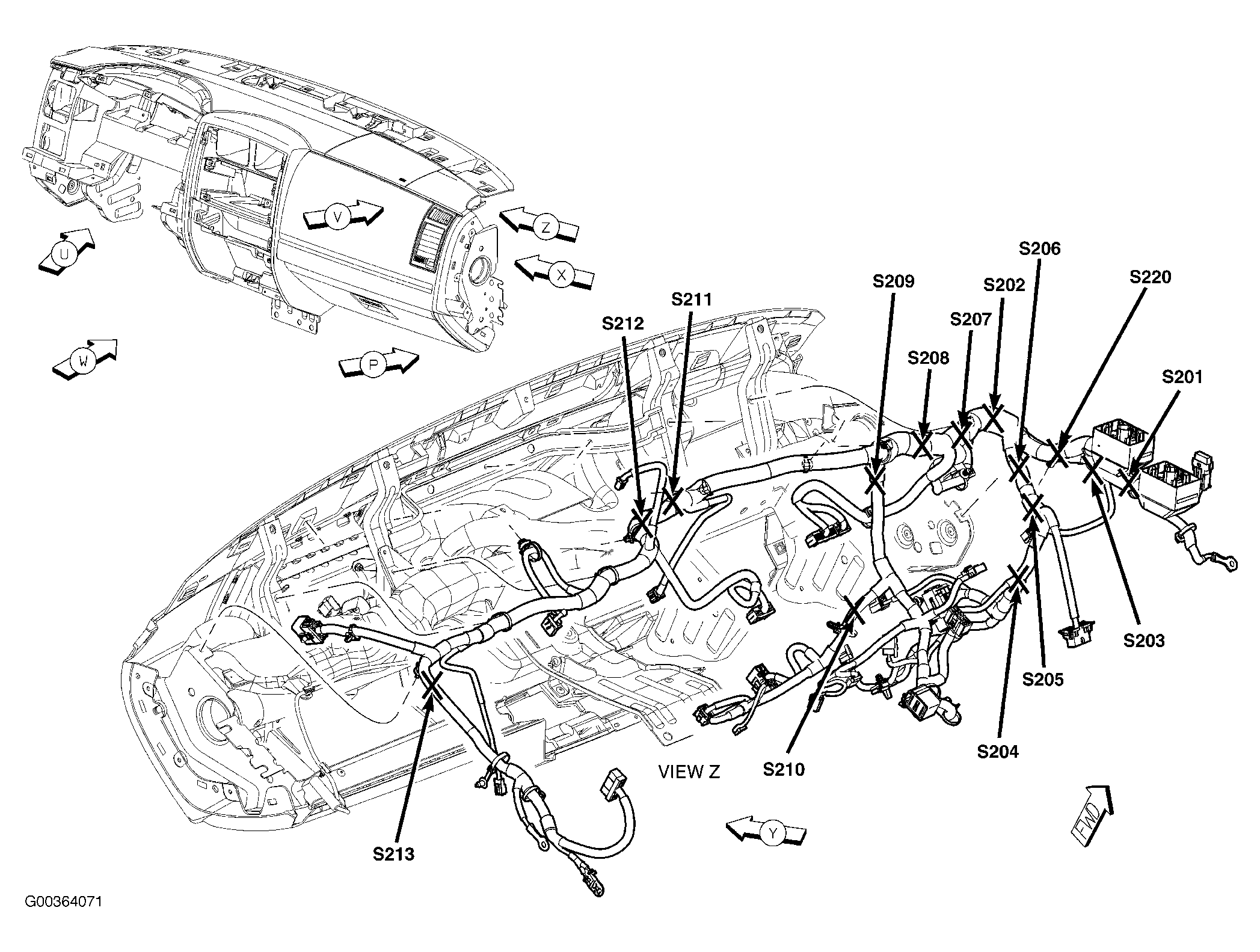

Fig 18: Dash

G00364071

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

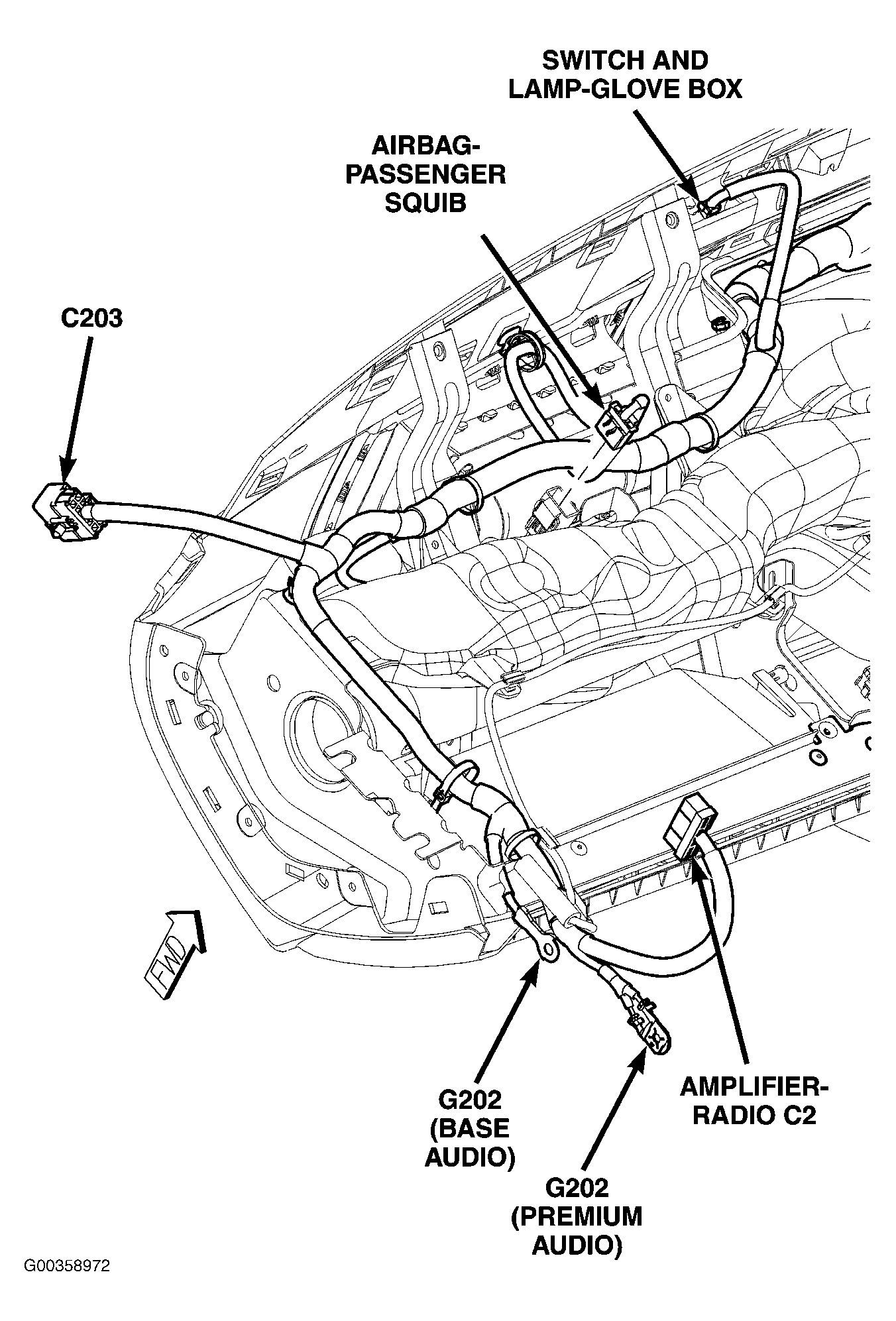

Fig 19: Right Side Of Dash

G00358972

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

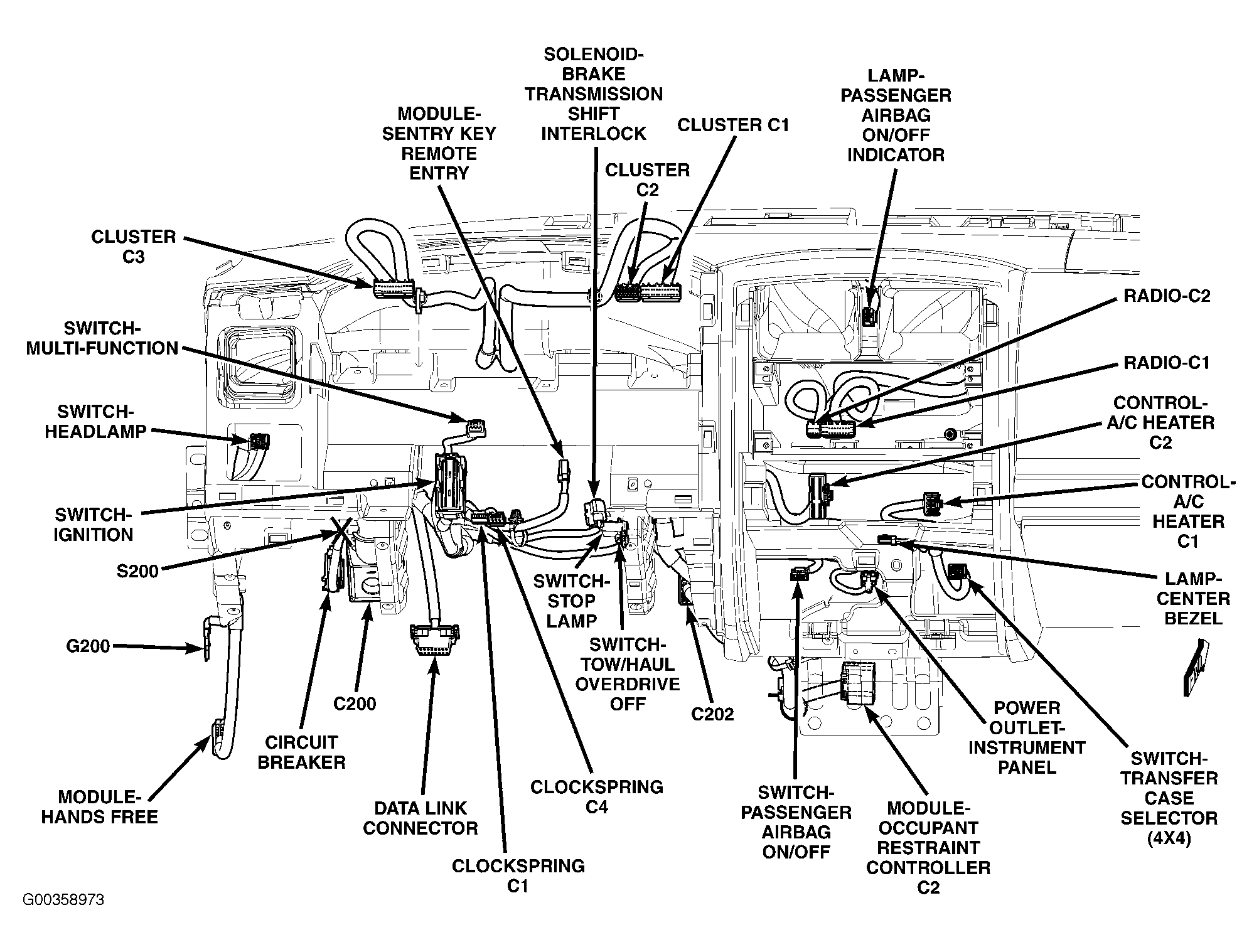

Fig 20: Left Side Of Dash

G00358973

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

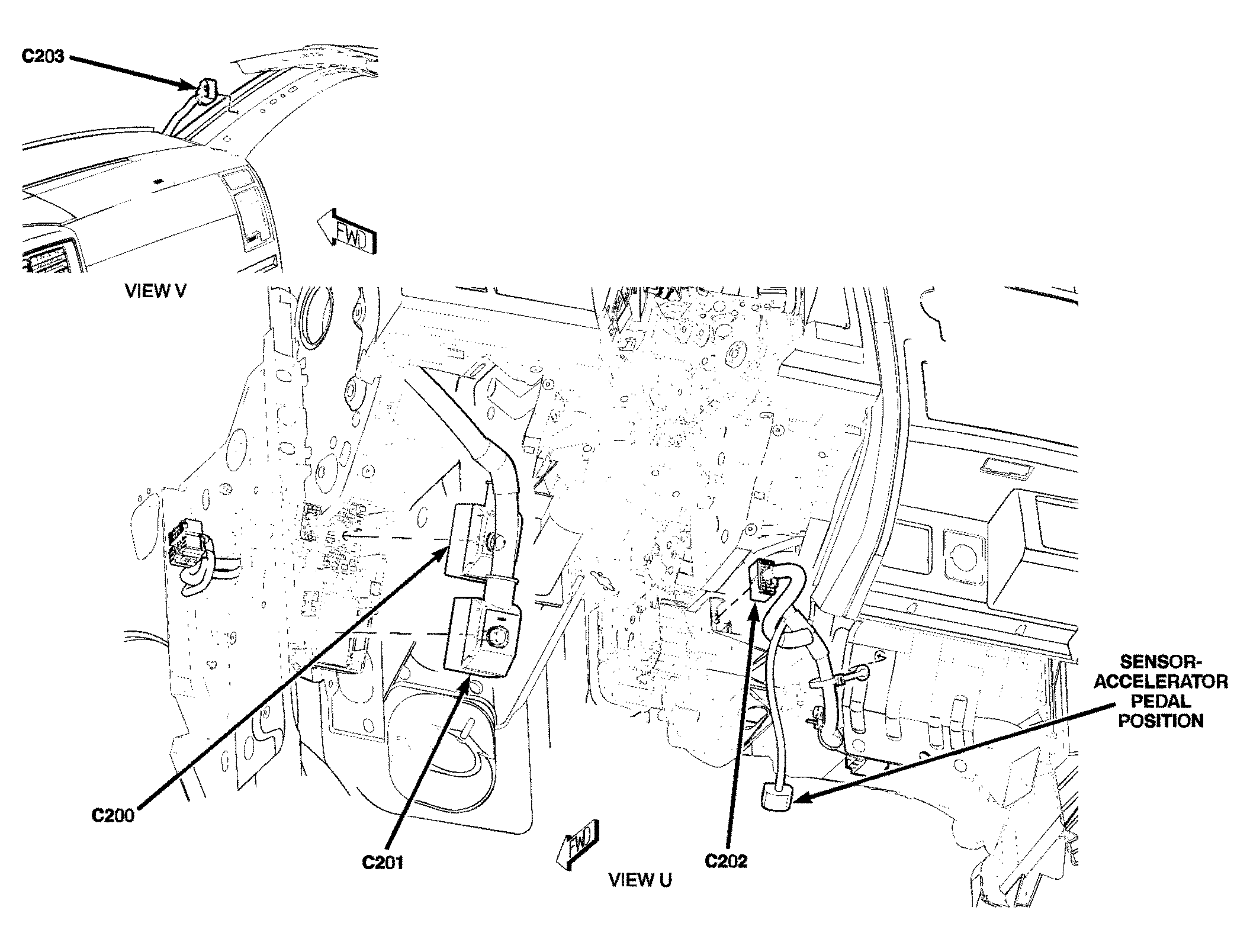

Fig 21: Lower Left Side Of Dash

G00451345

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 22: Lower Right Side Of Dash

G00358975

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

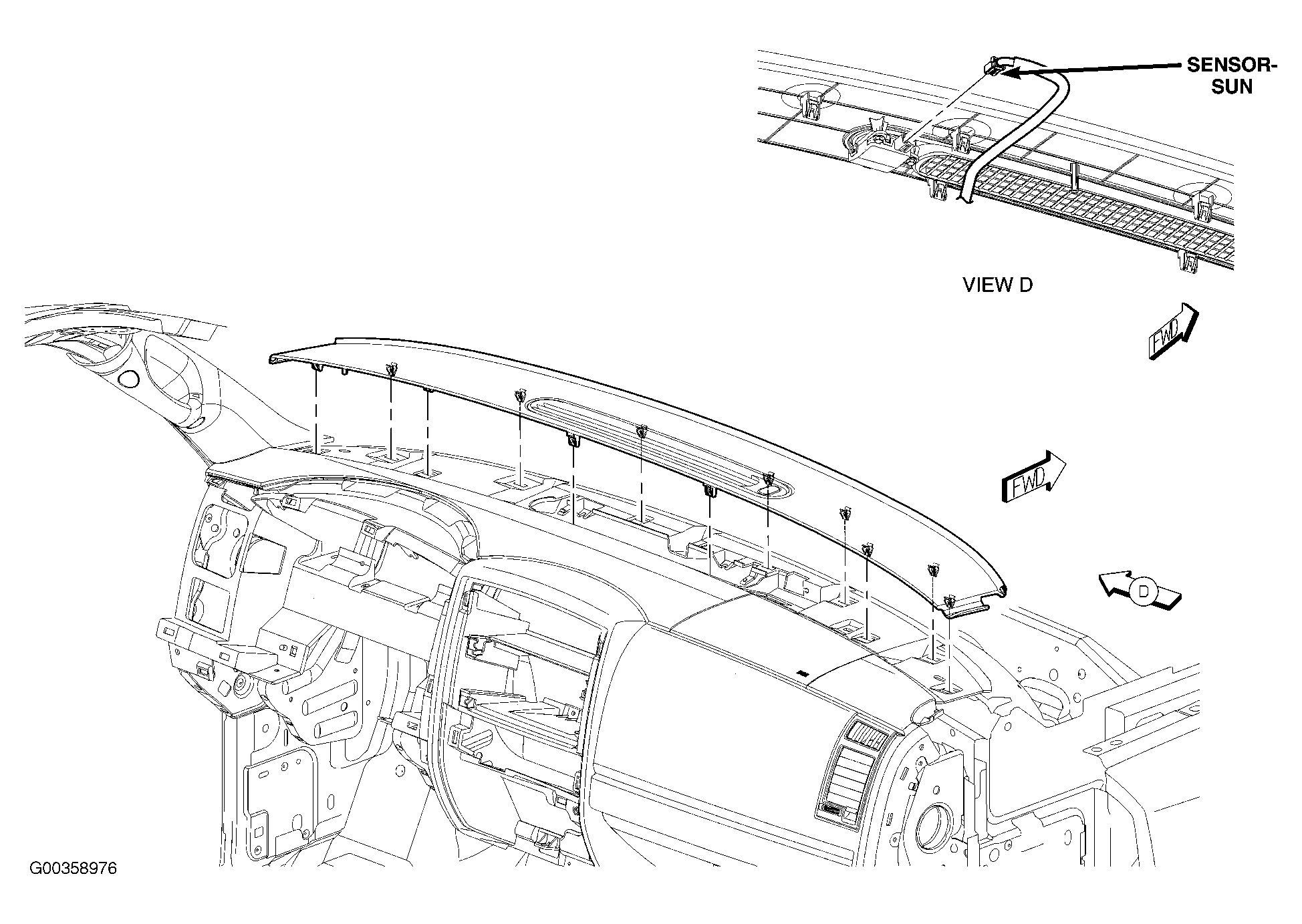

Fig 23: Top Of Dash

G00358976

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

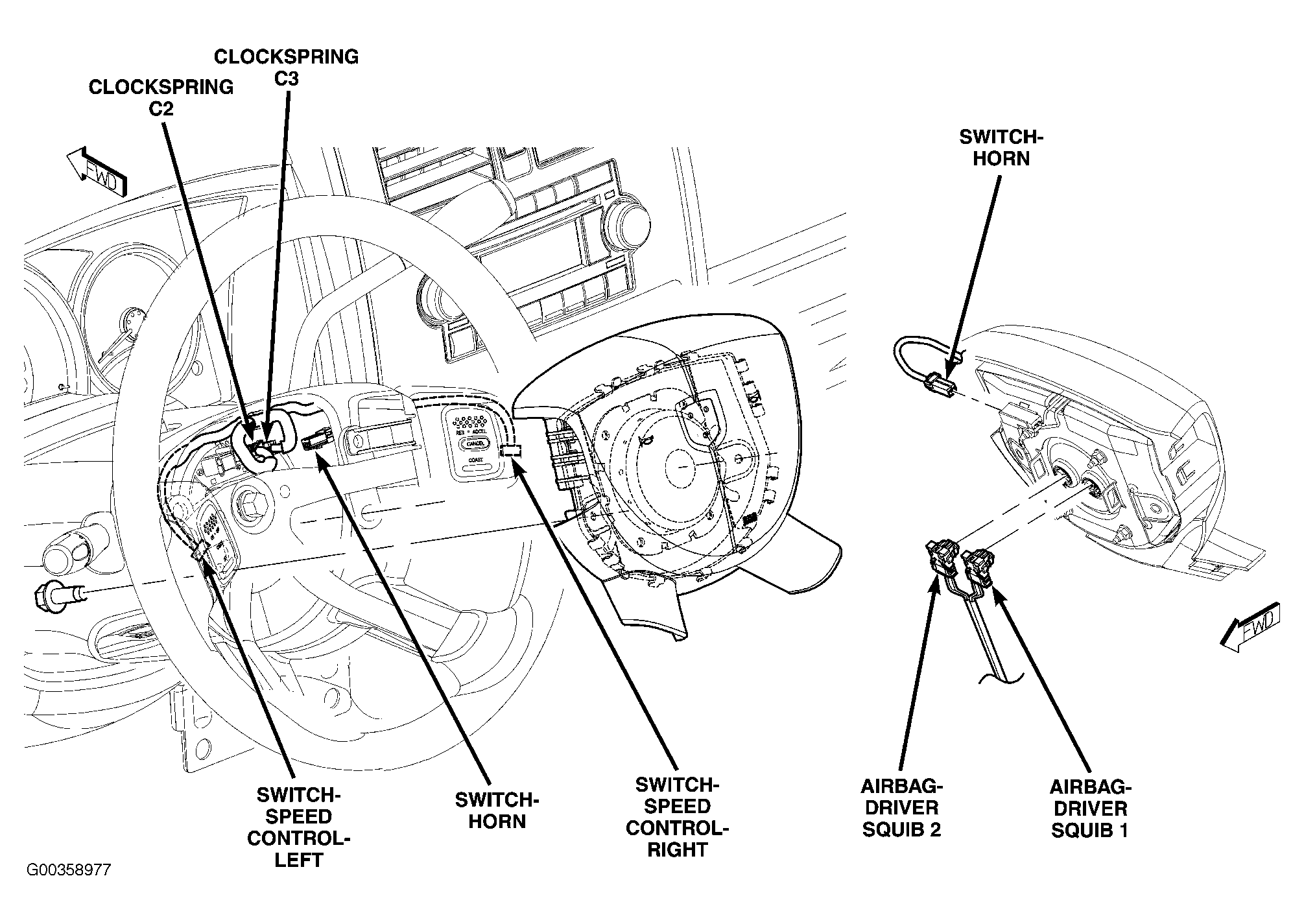

Fig 24: Steering Wheel

G00358977

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

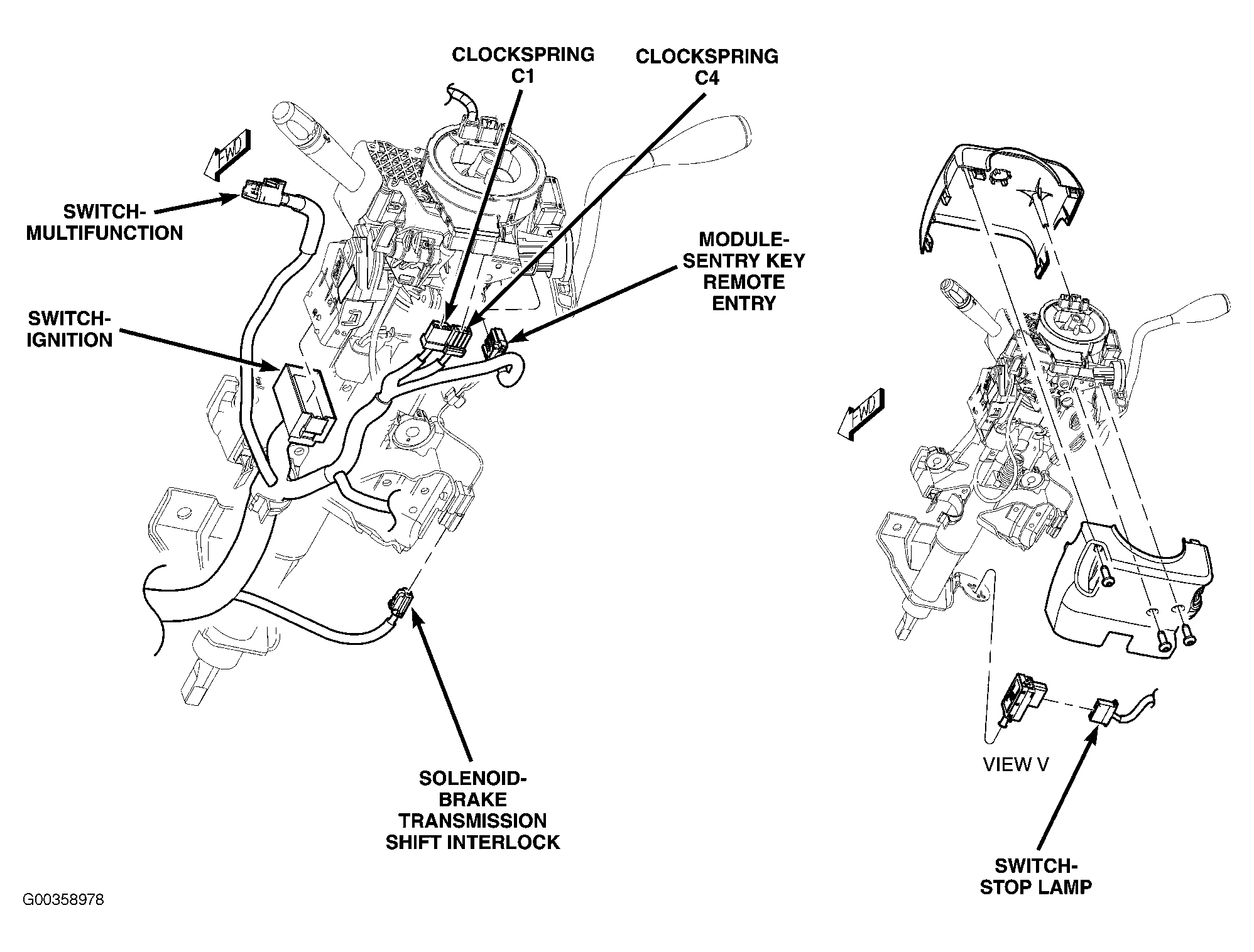

Fig 25: Steering Column

G00358978

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

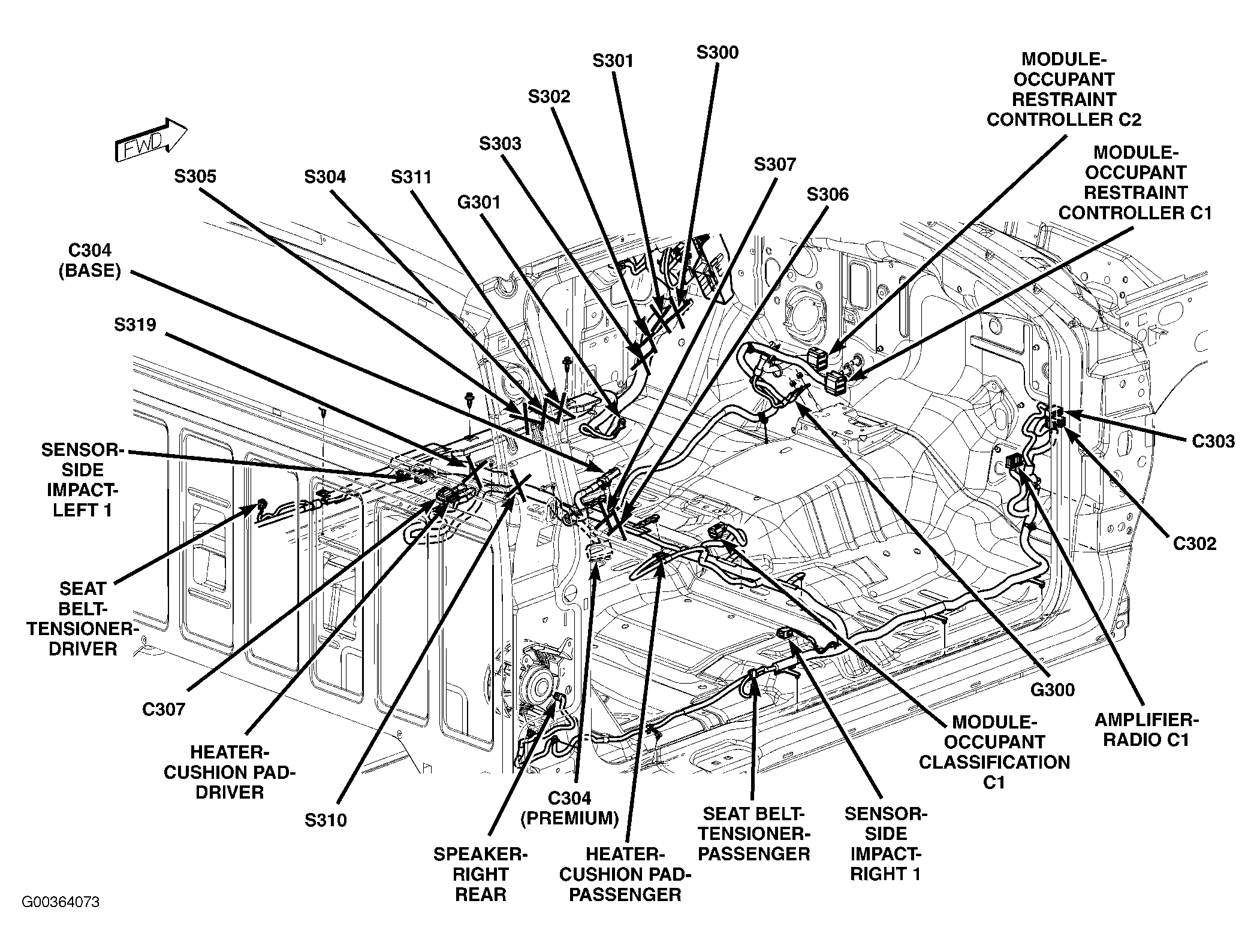

Fig 26: Body (Extended Cab)

G00364073

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

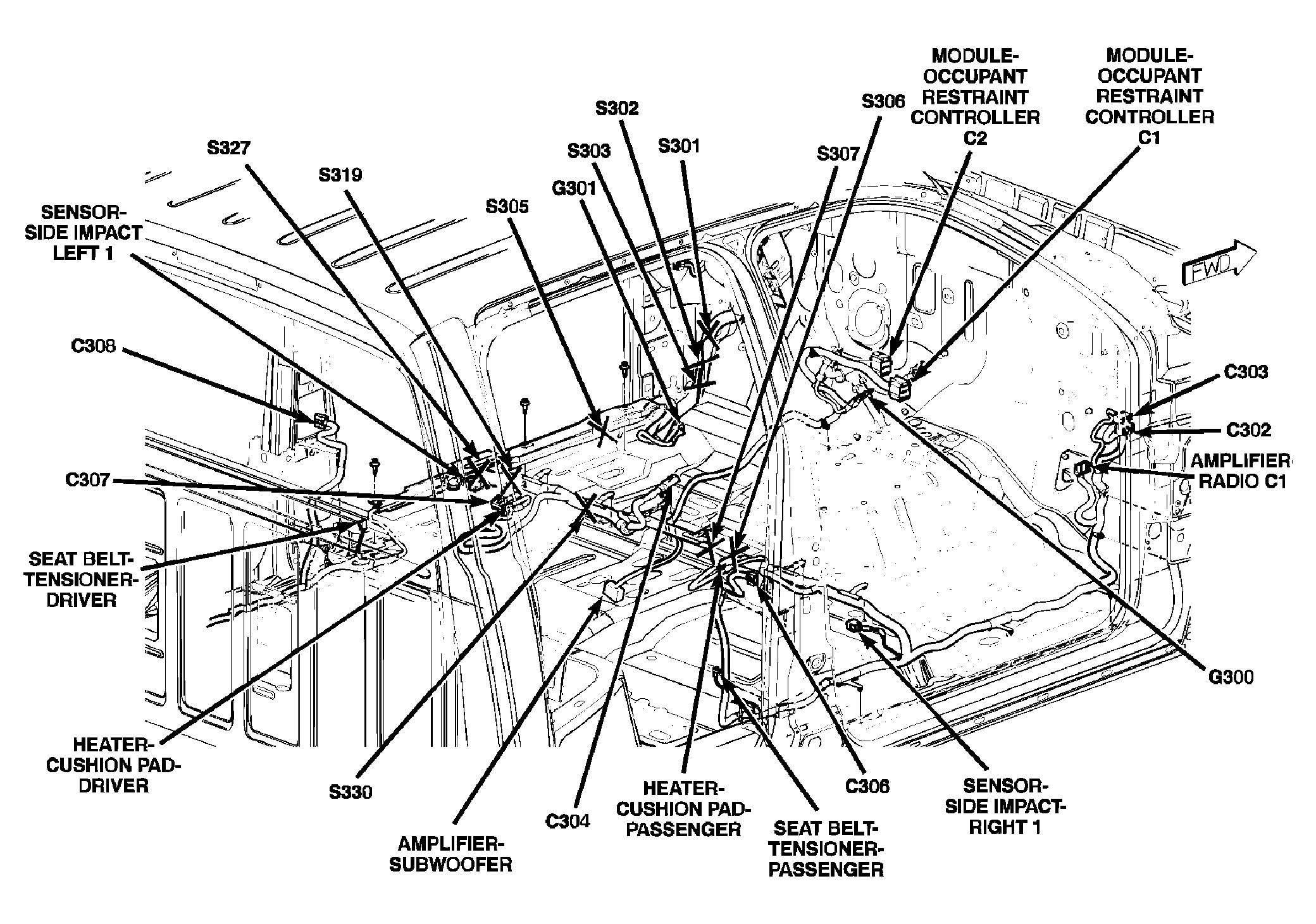

Fig 27: Body (Double Cab)

G00451346

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

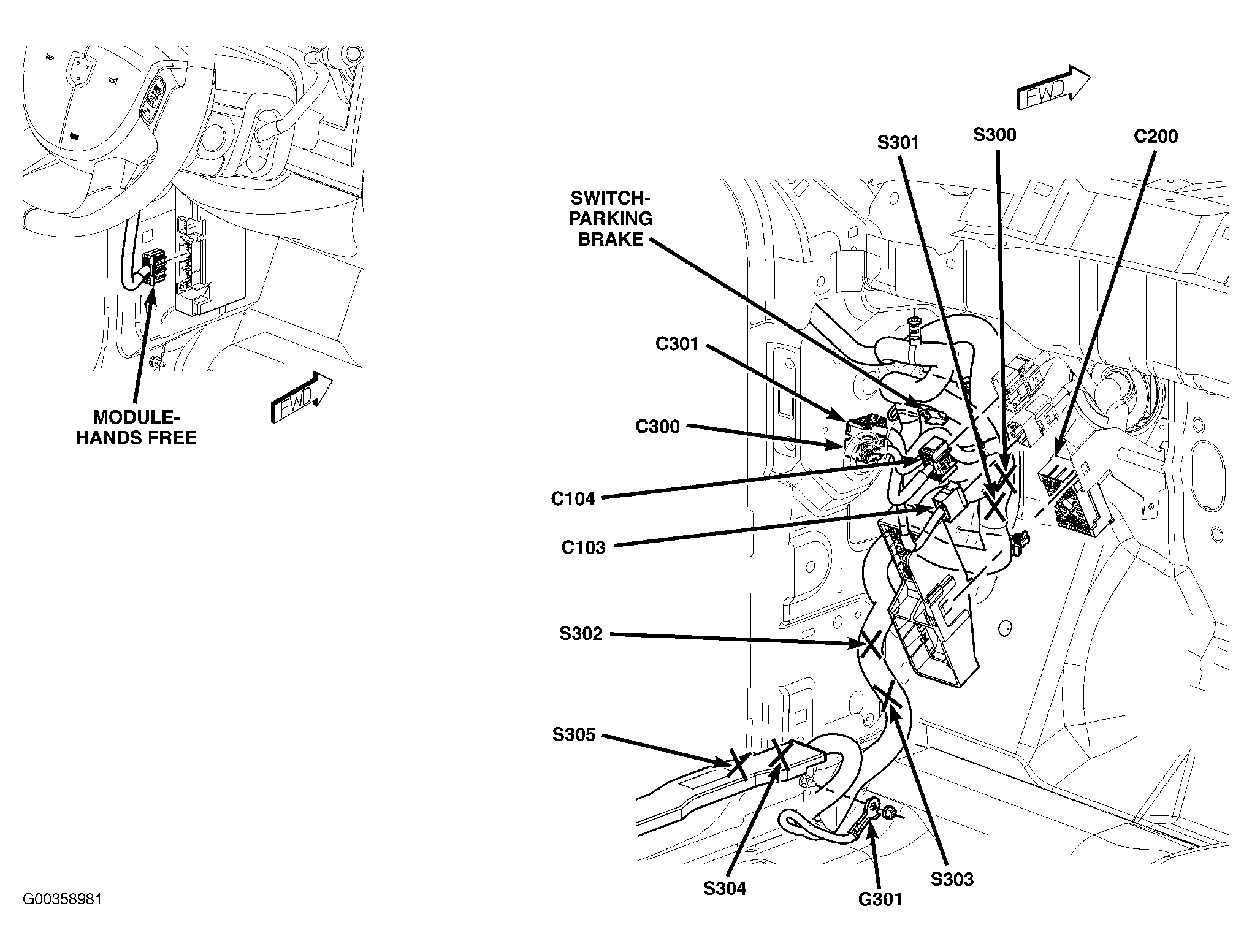

Fig 28: Left Kick Panel

G00358981

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

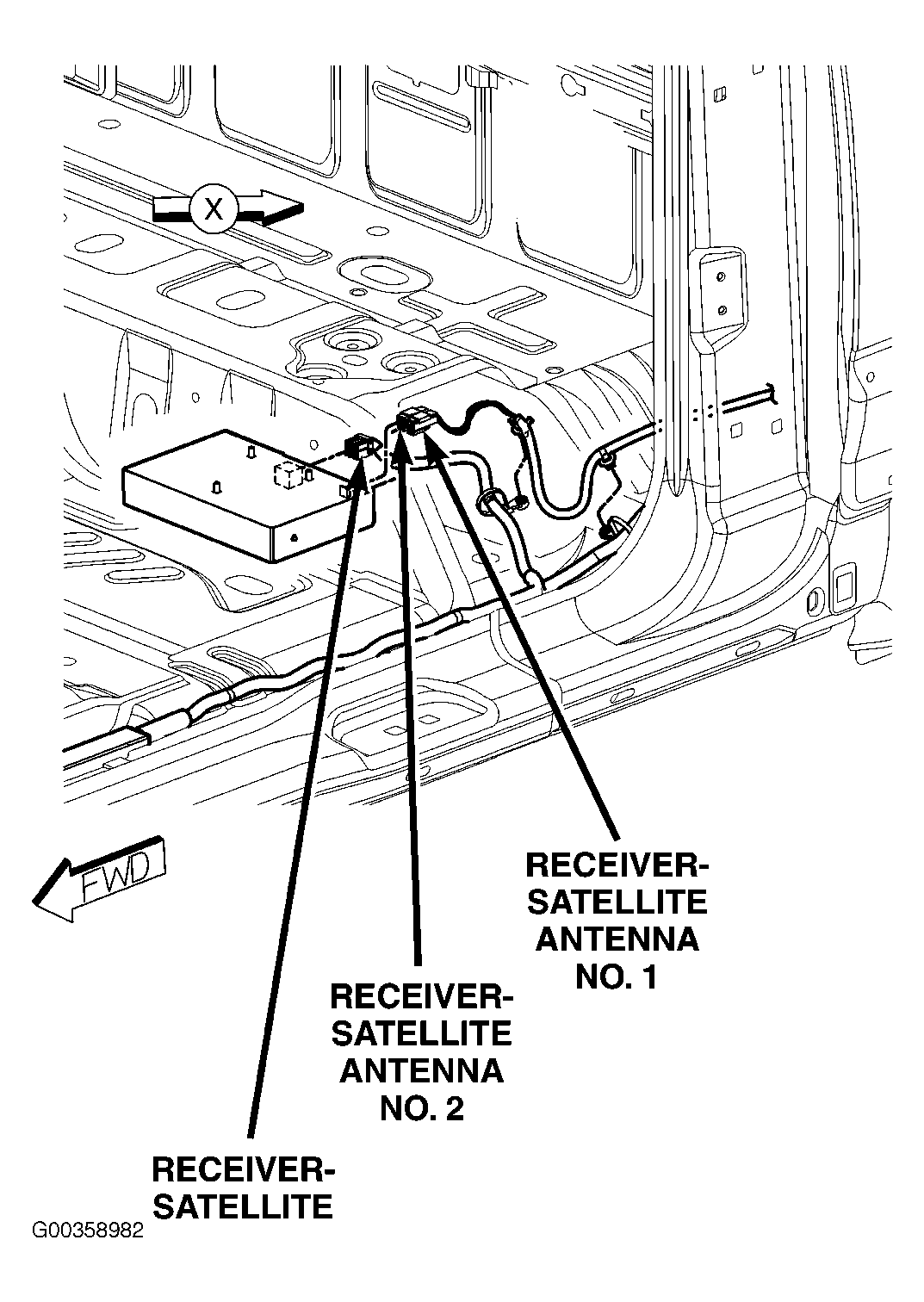

Fig 29: Rear Of Body (Extended Cab)

G00358982

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

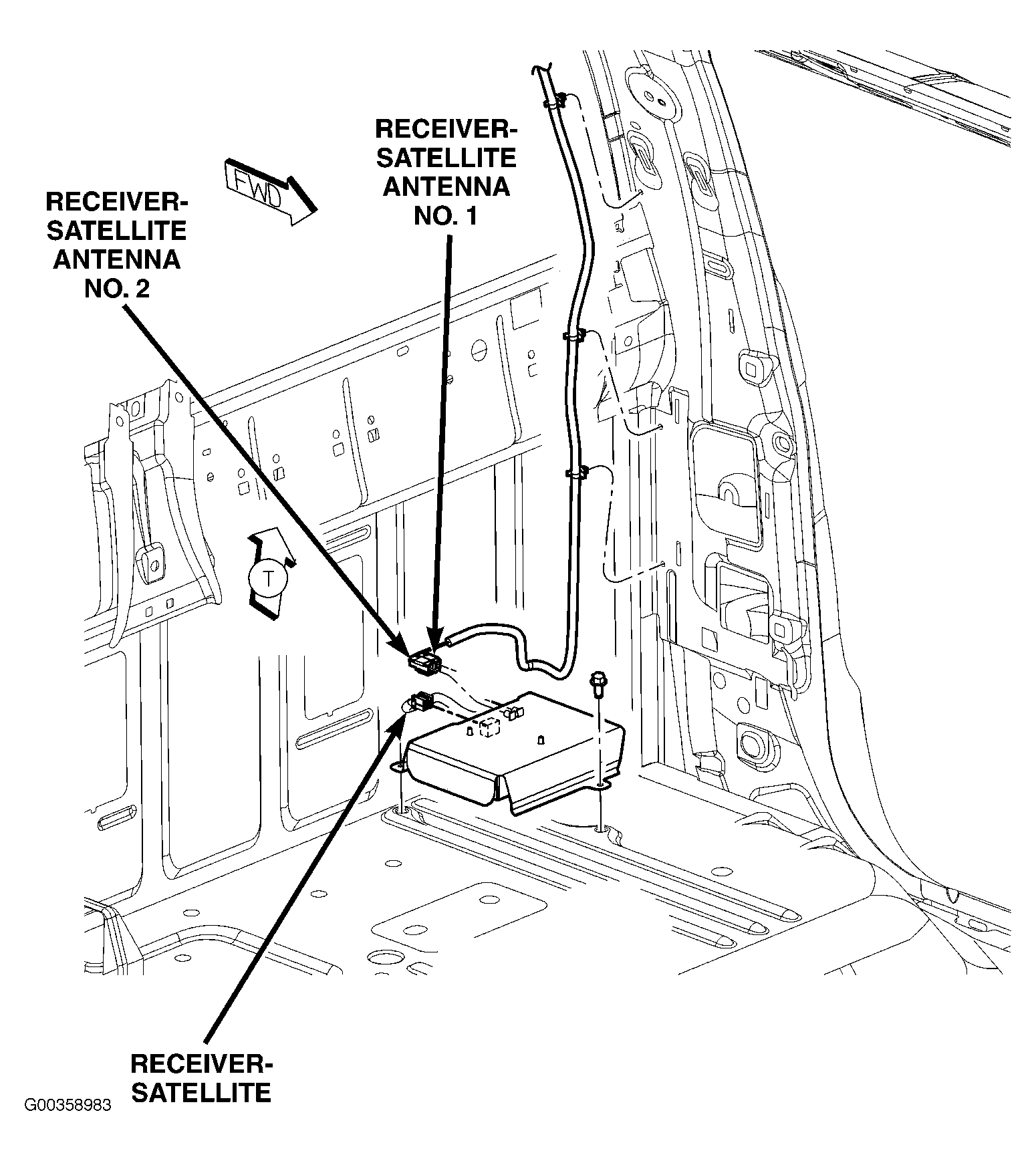

Fig 30: Left Rear Of Body (Double Cab)

G00358983

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

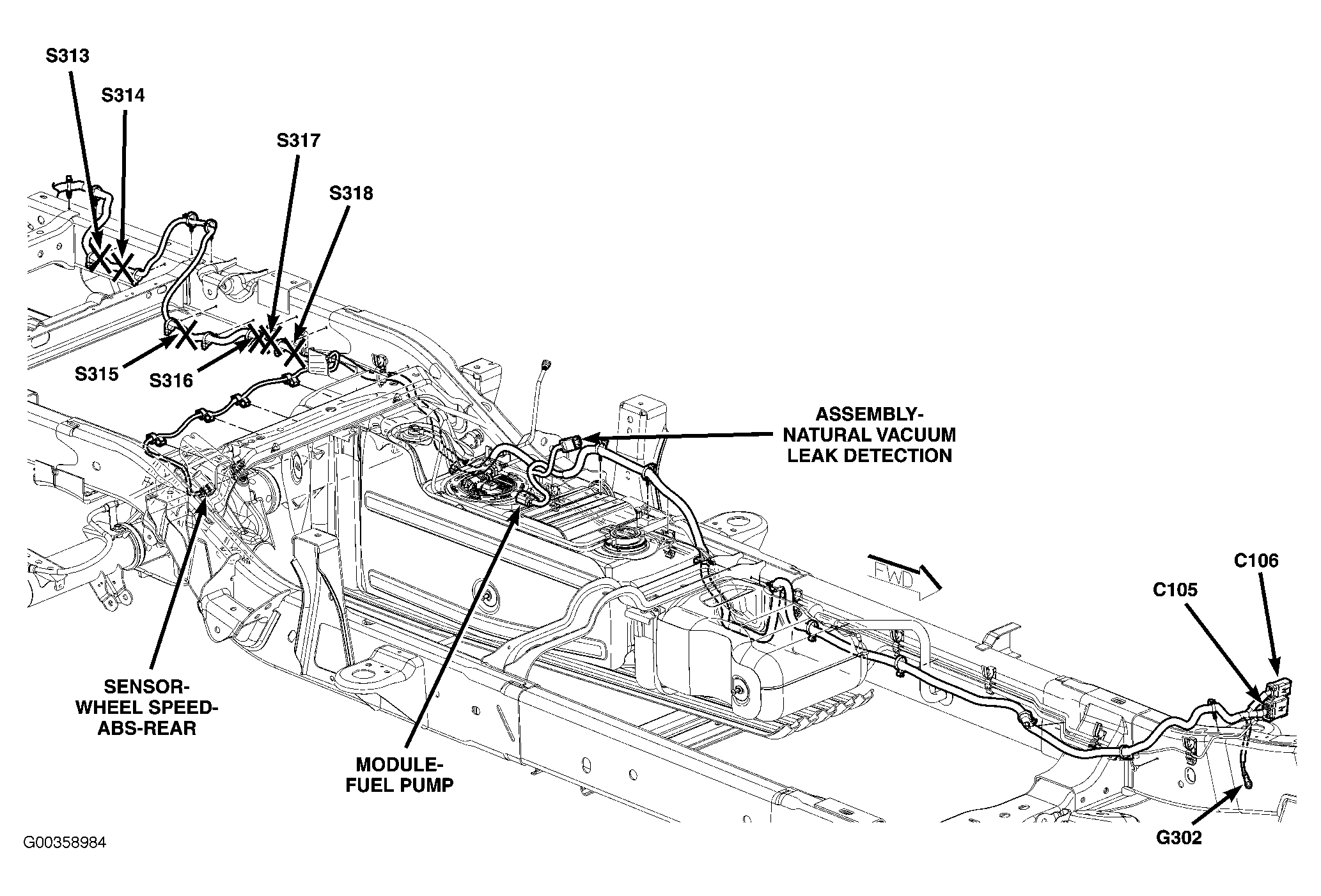

Fig 31: Chassis

G00358984

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

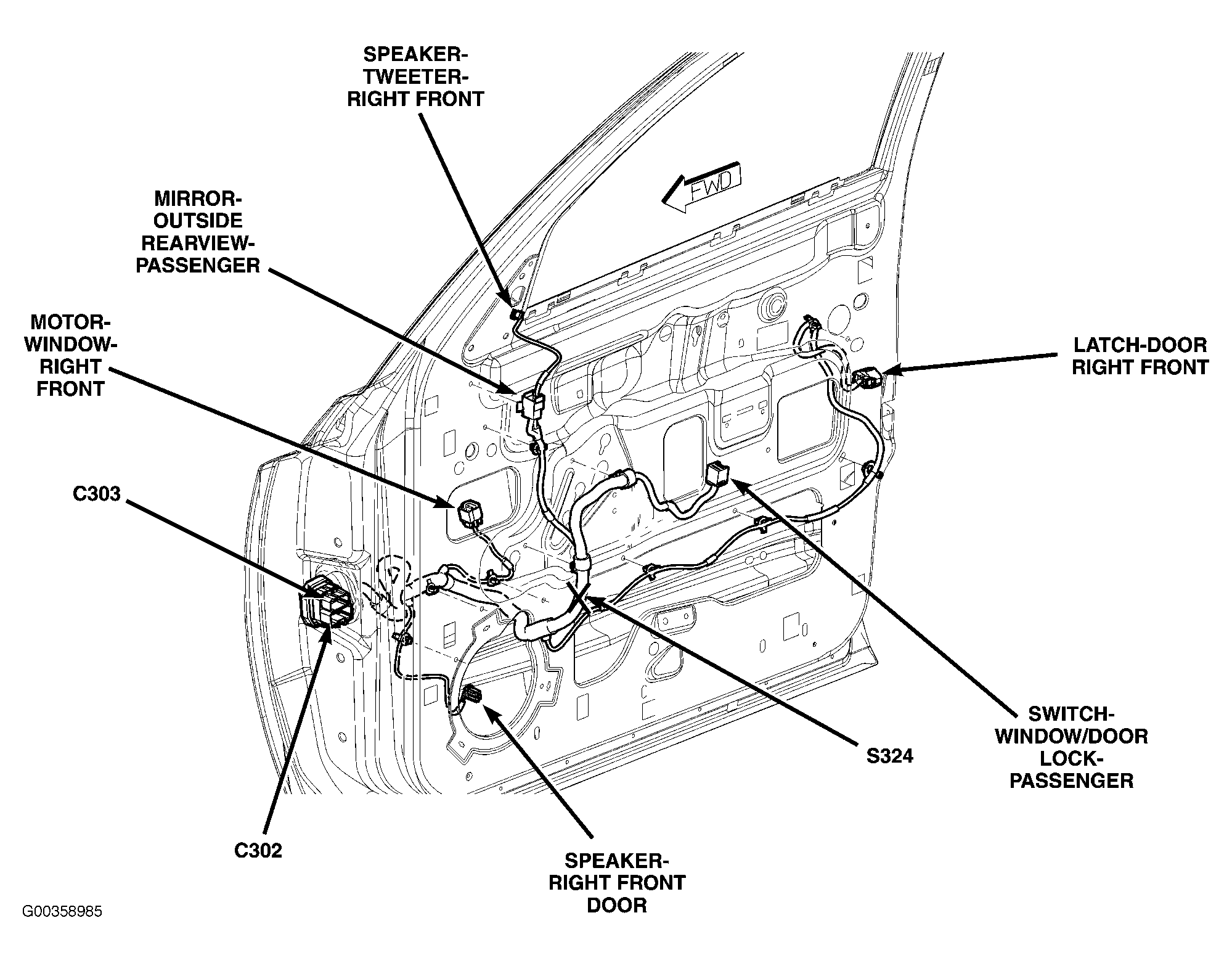

Fig 32: Right Front Door

G00358985

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

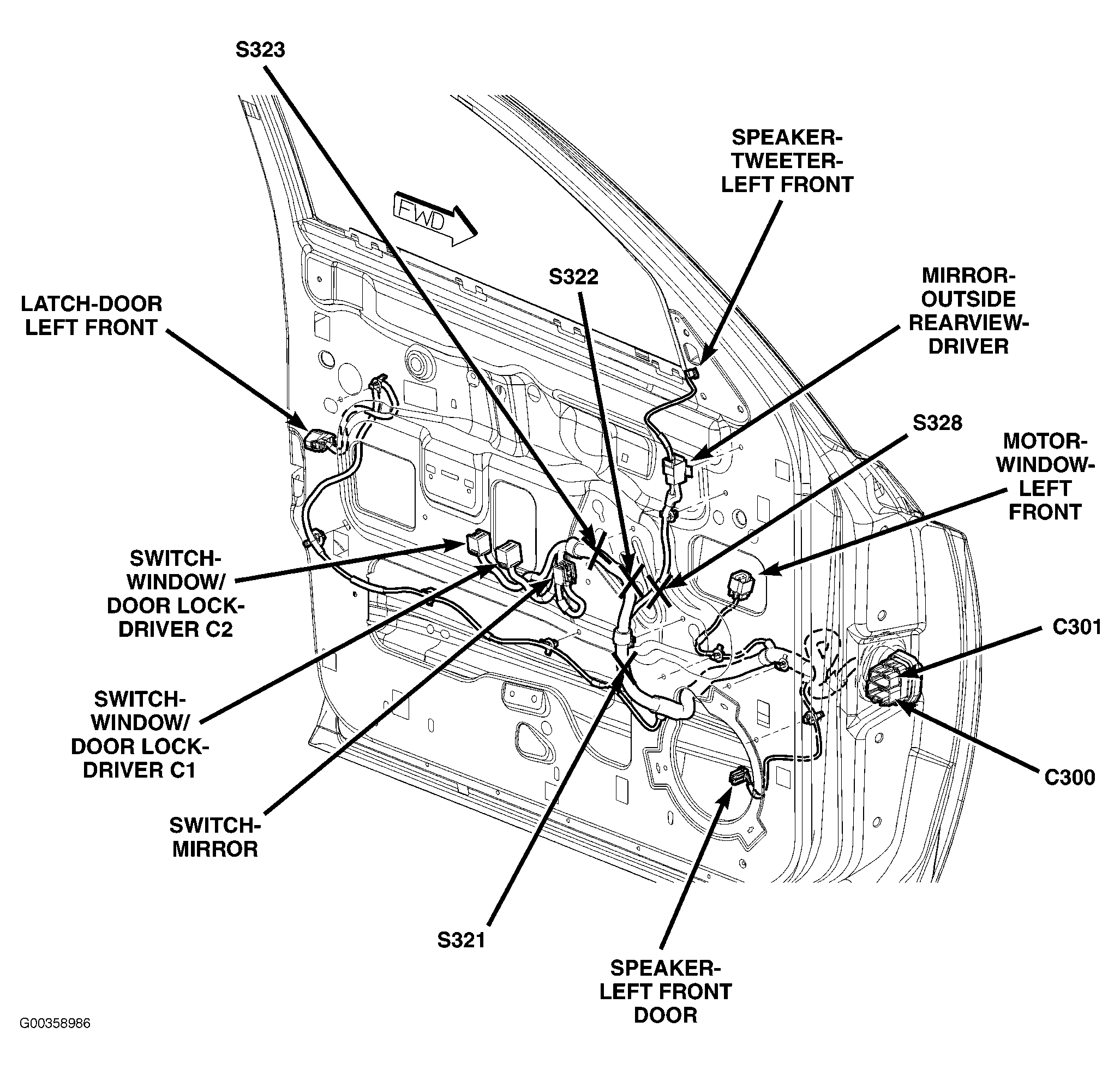

Fig 33: Left Front Door

G00358986

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

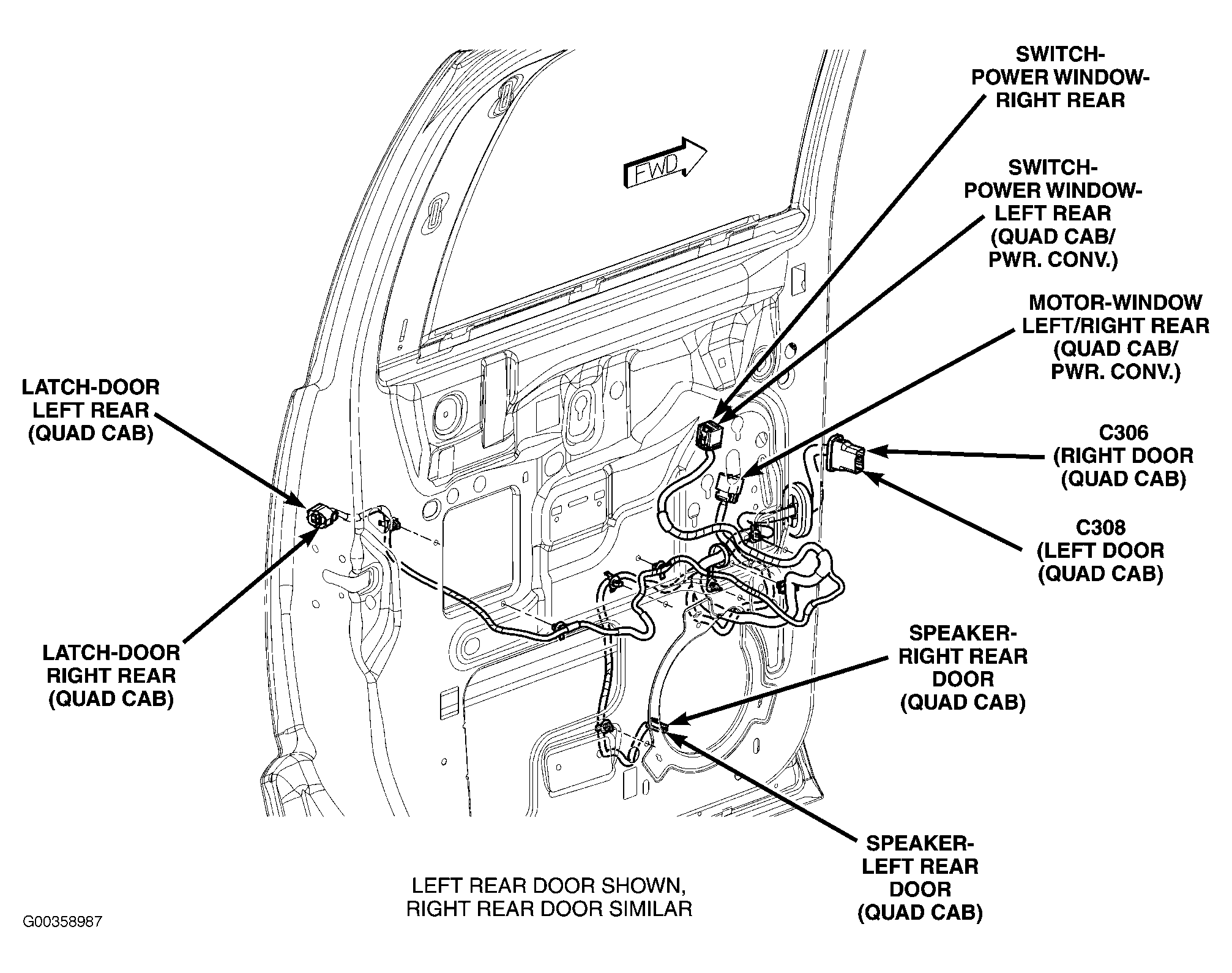

Fig 34: Left Rear Door (Right Similar)

G00358987

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

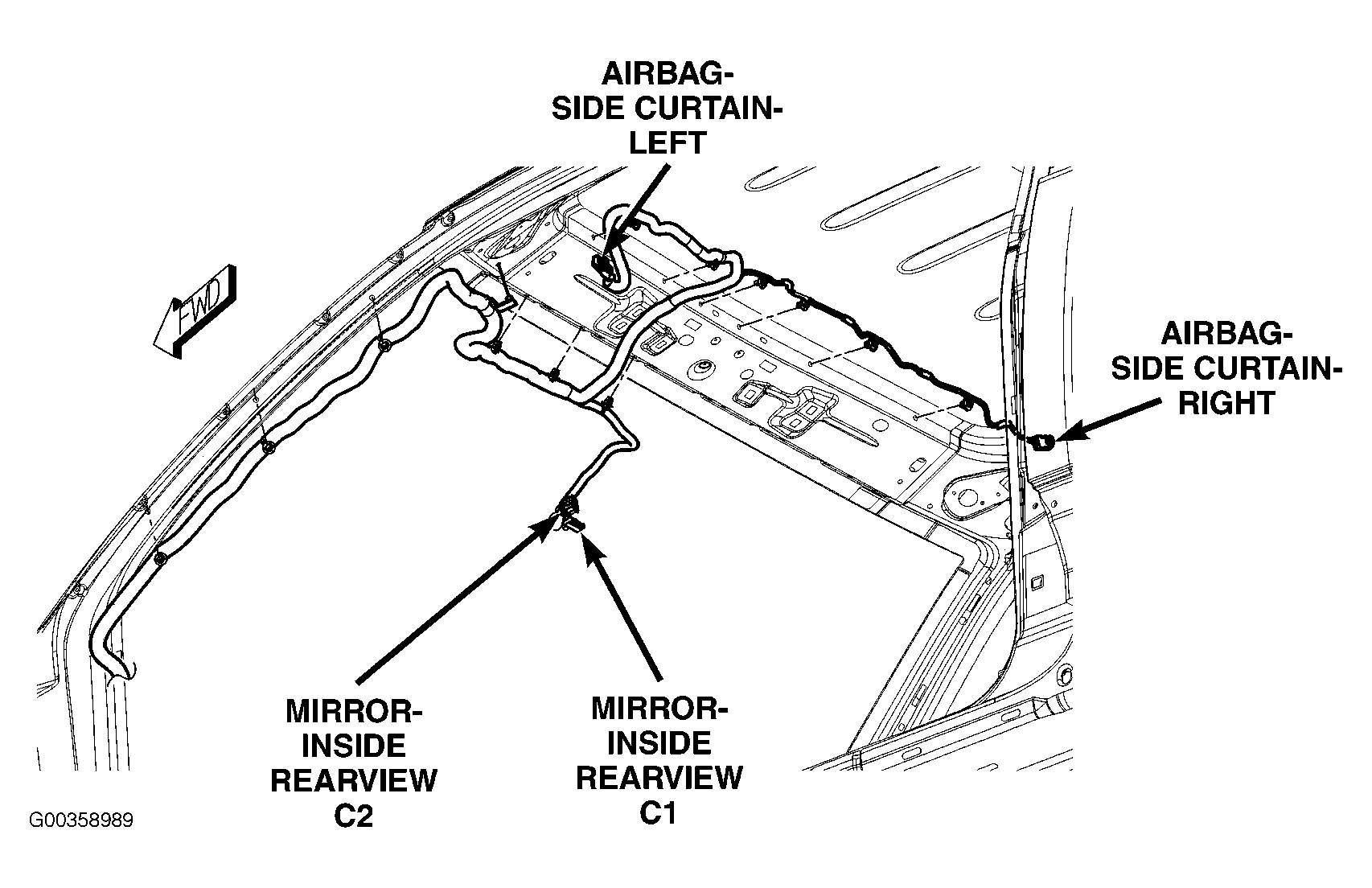

Fig 35: "A" Pillars/Front Of Headliner

G00358989

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

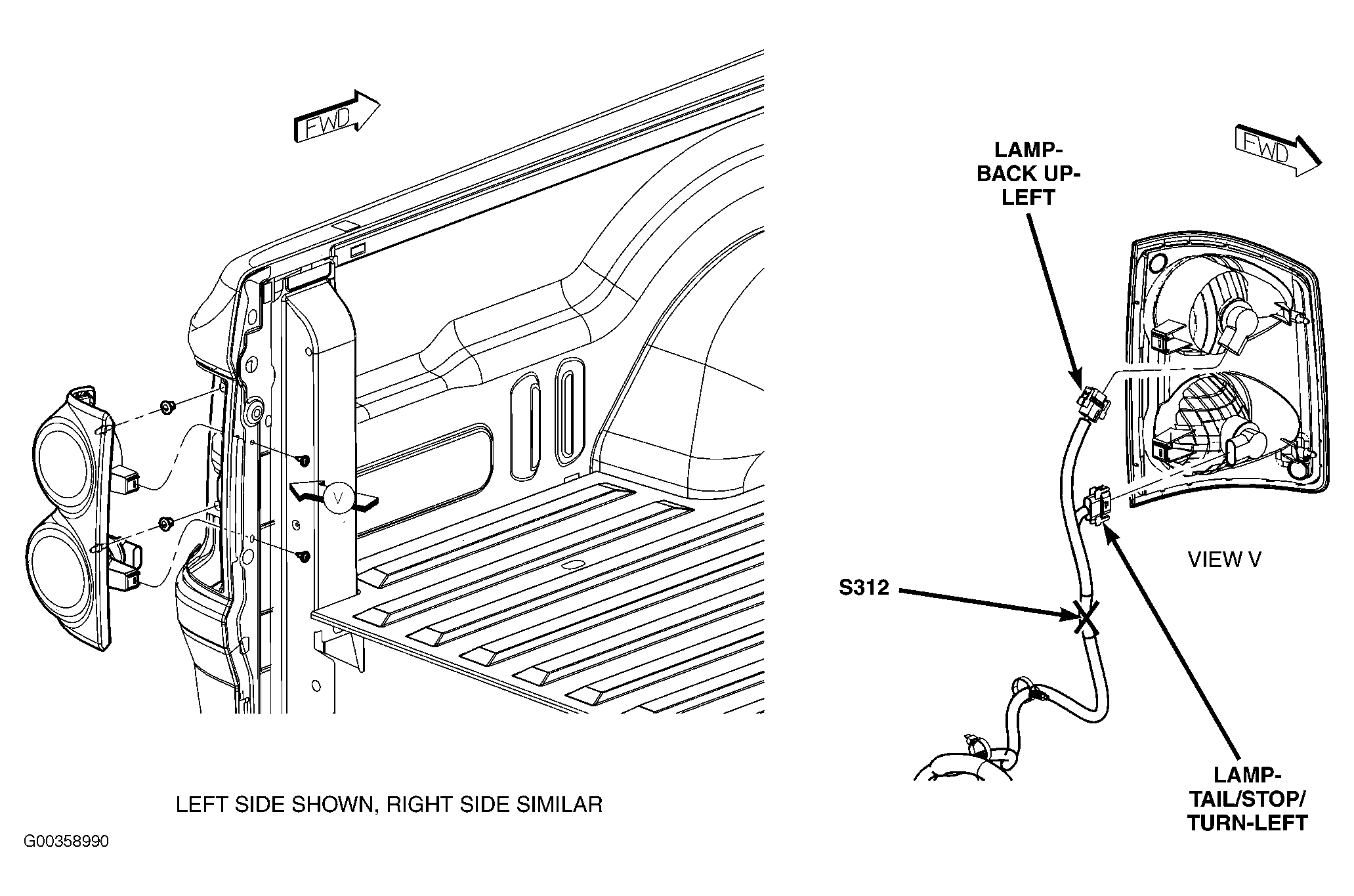

Fig 36: Rear Of Vehicle

G00358990

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

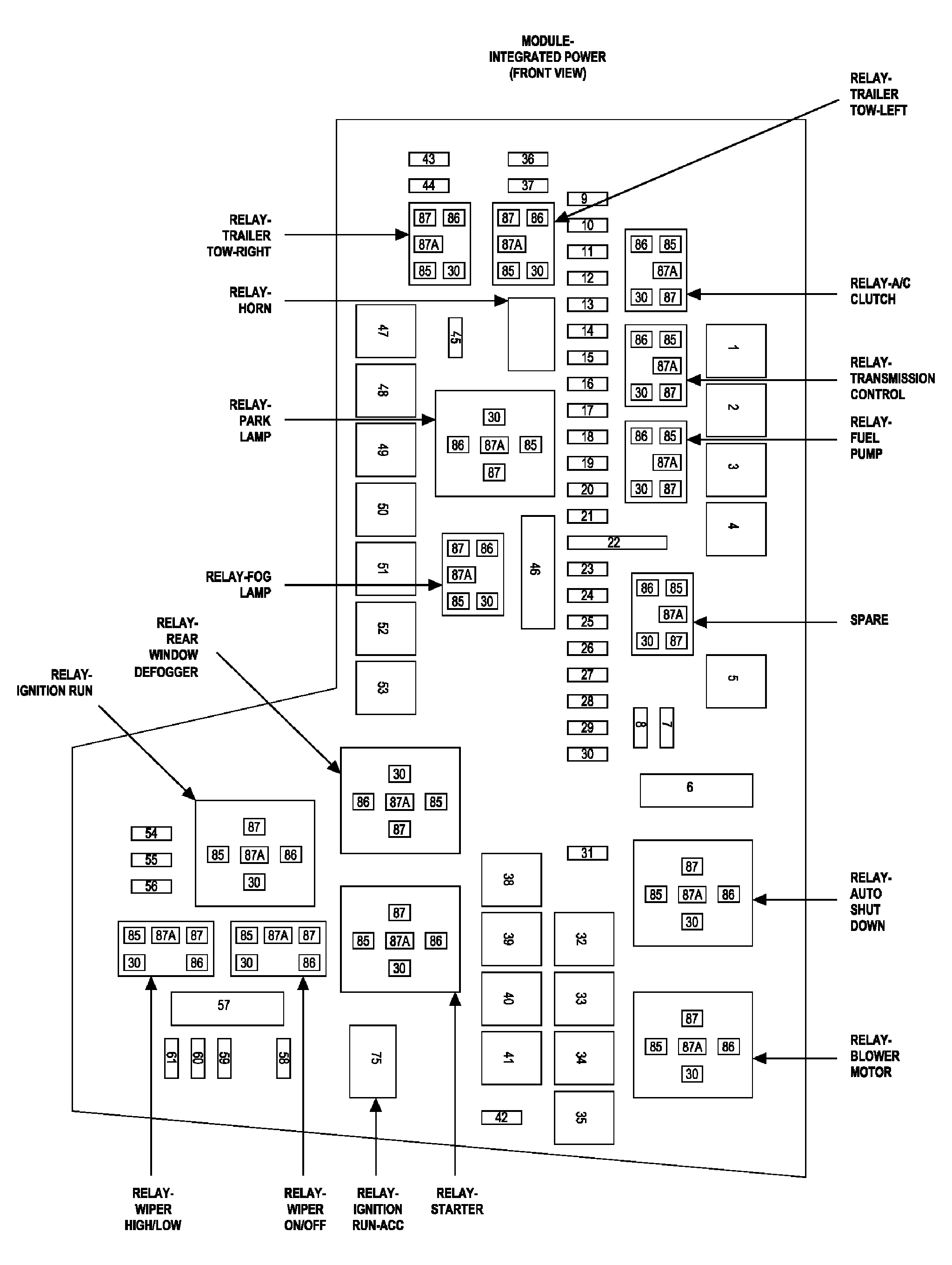

Fig 37: Integrated Power Module

G00451347

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

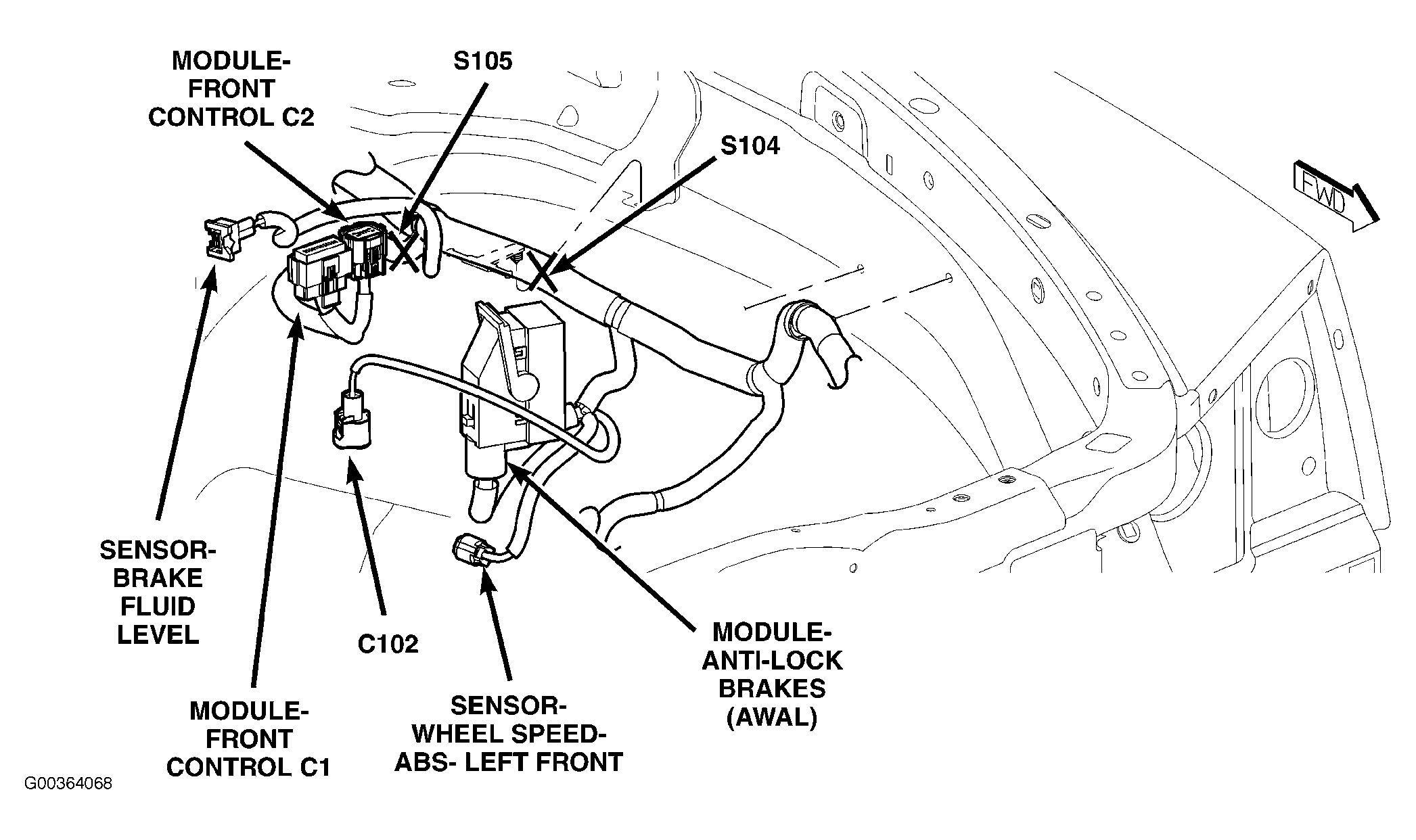

Fig 38: Left Side Of Engine Compartment

G00364068

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

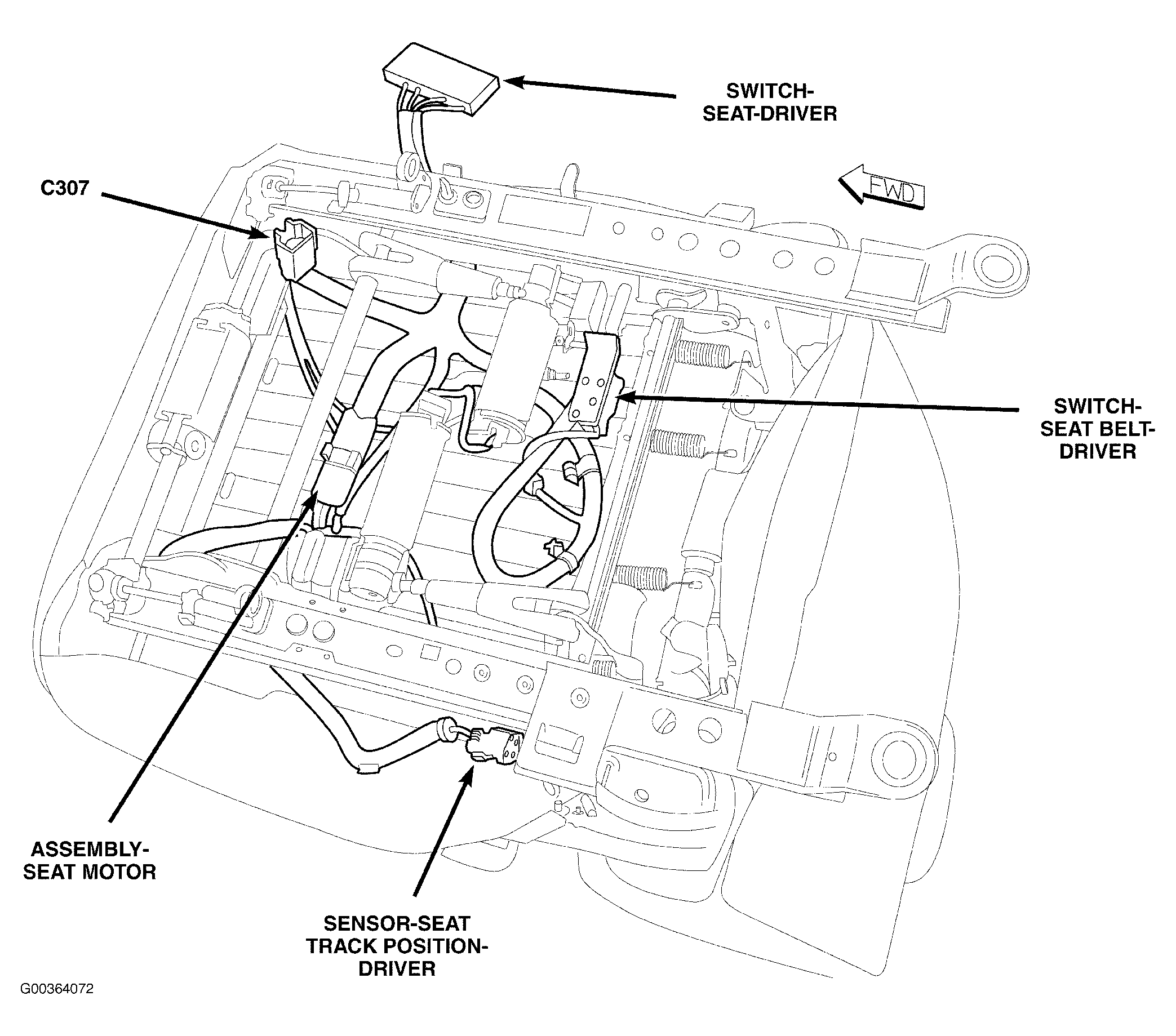

Fig 39: Driver's Seat

G00364072

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
