3.7L /4.7L

Fig 1: Identifying Rear Vertical Generator Mounting Bolt, Front Horizontal Generator Mounting Bolts And Generator
G04854947Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  1. Position generator (3) to engine and install 2 horizontal bolts (1) and 1 vertical bolt (2).
  2. Tighten all 3 bolts. Refer to TORQUE SPECIFICATIONS .

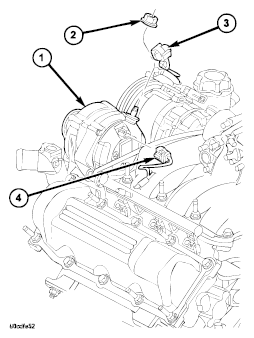

    Fig 2: Identifying Generator, B+ Terminal Mounting Nut, Plastic Insulator Cap And Field Wire Connector
    G04854946Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. Snap field wire connector (4) into rear of generator.
  4. Install B+ terminal eyelet to generator output stud. Tighten mounting nut (2). Refer to TORQUE SPECIFICATIONS .
    CAUTION: Never force a belt over a pulley rim using a screwdriver. The synthetic fiber of the belt can be damaged.
    CAUTION: When installing a serpentine accessory drive belt, the belt MUST be routed correctly. The water pump may be rotating in the wrong direction if the belt is installed incorrectly, causing the engine to overheat. Refer to belt routing label in engine compartment, or refer to Belt Schematics in COOLING .
  5. Install generator drive belt. Refer to COOLING for procedure.
  6. Install negative battery cable to battery.
