Switch - Ignition: Installation

The ignition key must be in the key cylinder for cylinder removal. The key cylinder must be removed first before installing ignition switch.

1. Before installing ignition switch, rotate the slot in the switch to the ON position.
2. Connect the electrical connector to rear of the ignition switch. Make sure that locking tabs are fully seated into wiring connector.

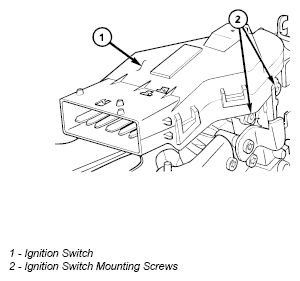

   Fig 1: Identifying Ignition Switch And Ignition Switch Mounting Screws

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Position switch (1) to column and install the mounting screws (2). Tighten screw to 3 N.m (26 in. lbs.).

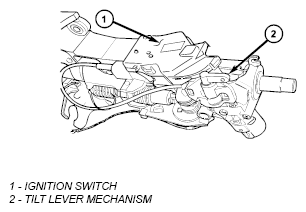

   Fig 2: Identifying Tilt Lever Mechanism And Ignition Switch

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
4. Install the tilt lever bracket (2) mounting screws. Tighten screws to 4.5 N.m (40 in. lbs.).

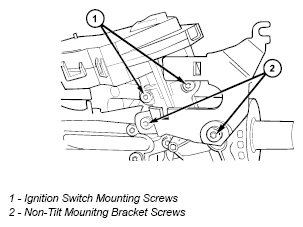

   Fig 3: Identifying Ignition Switch Mounting Screws And Non-Tilt Mounting Bracket Screws

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
5. If the column is non-tilt install the bracket. Tighten screws (2) to 4.5 N.m (40 in. lbs.)

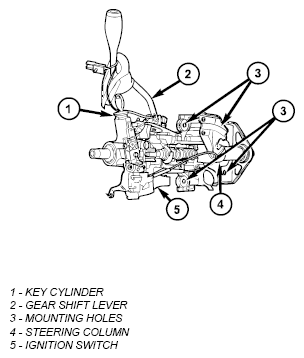

   Fig 4: Identifying Key Cylinder, Gear Shift Lever, Mounting Holes, Steering Column And Ignition Switch

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
6. Position the wire retainer into the tilt lever bracket.
7. Reconnect the lower clockspring connectors.
8. Install the key cylinder (1)
9. Install steering column upper and lower shrouds.
10. Enable the airbag system. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) - SERVICE INFORMATION article.
