Service Precautions

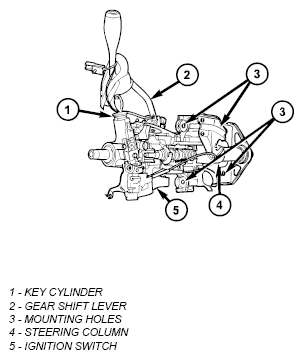

Fig 1: Identifying Key Cylinder, Gear Shift Lever, Mounting Holes, Steering Column And Ignition Switch
G04854992Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: The steering column on vehicles equipped with an automatic transmission is not equipped with an internal locking shaft with the ignition cylinder. Alternative methods of locking the steering wheel for service will have to be used.

The tilt and standard column (4) have been designed to be serviced as an assembly; without wiring, switches, shrouds, steering wheel, etc. Most steering column components can be serviced without removing the steering column from the vehicle.

Safety goggles should be worn at all times when working on steering columns.

To service the steering wheel, switches or airbag, Refer to  SUPPLEMENTAL RESTRAINT SYSTEM (SRS) - SERVICE INFORMATION  article and follow all WARNINGS and CAUTIONS.

WARNING: THE AIRBAG SYSTEM IS A SENSITIVE, COMPLEX ELECTRO-MECHANICAL UNIT. BEFORE ATTEMPTING TO DIAGNOSE, REMOVE OR INSTALL THE AIRBAG SYSTEM COMPONENTS YOU MUST FIRST DISCONNECT AND ISOLATE THE BATTERY NEGATIVE (GROUND) CABLE. THEN WAIT TWO MINUTES FOR THE SYSTEM CAPACITOR TO DISCHARGE. FAILURE TO DO SO COULD RESULT IN ACCIDENTAL DEPLOYMENT OF THE AIRBAG AND POSSIBLE PERSONAL INJURY. THE FASTENERS, SCREWS, AND BOLTS, ORIGINALLY USED FOR THE AIRBAG COMPONENTS, HAVE SPECIAL COATINGS AND ARE SPECIFICALLY DESIGNED FOR THE AIRBAG SYSTEM. THEY MUST NEVER BE REPLACED WITH ANY SUBSTITUTES. ANYTIME A NEW FASTENER IS NEEDED, REPLACE WITH THE CORRECT FASTENERS PROVIDED IN THE SERVICE PACKAGE OR FASTENERS LISTED IN THE PARTS BOOKS.
CAUTION: Do not hammer on steering column shaft. This may cause damage to the shaft or bearing.
CAUTION: Do not attempt to remove the pivot bolts to disassemble the tilting mechanism.

The ignition key must be in the key cylinder for cylinder removal. The key cylinder must be removed first before removing ignition switch.

  1. Remove the negative (ground) cable from the battery.
  2. Disable the airbag. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) - SERVICE INFORMATION article.
  3. Remove the lower and upper shrouds.
  4. Remove key cylinder. (Refer to STEERING/KEY/LOCK CYLINDER/REMOVAL ).
  5. Disconnect the lower clockspring connectors.
  6. Remove the wire retainer from the tilt lever bracket.

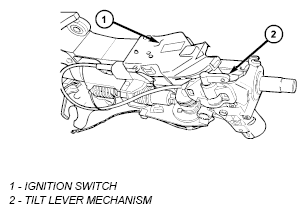

    Fig 2: Identifying Ignition Switch And Tilt Lever Mechanism
    G04854993Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  7. Remove the tilt lever mounting screws to gain access to the ignition switch (1) mounting screws.

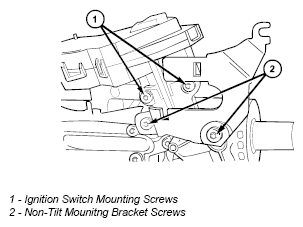

    Fig 3: Identifying Ignition Switch Mounting Screws And Non-Tilt Mounting Bracket Screws
    G04854994Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  8. For columns without tilt remove the bracket (2) to gain access to the ignition switch mounting screws (1).

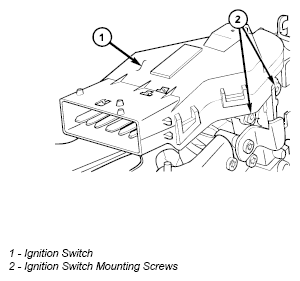

    Fig 4: Identifying Ignition Switch And Ignition Switch Mounting Screws
    G04854995Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  9. Disconnect the electrical connector at rear of ignition switch (1).
  10. Remove ignition switch mounting screws (2).
  11. Using a small screwdriver, push on locking tab and remove switch from steering column.
