Home >> Mitsubishi >> 2008 >> Eclipse GS, Automatic >> Repair and Diagnosis >> Restraints >> Passive Restraints >> Interior >> Trims >> Removal And Installation >> Notes

Removal And Installation: Notes

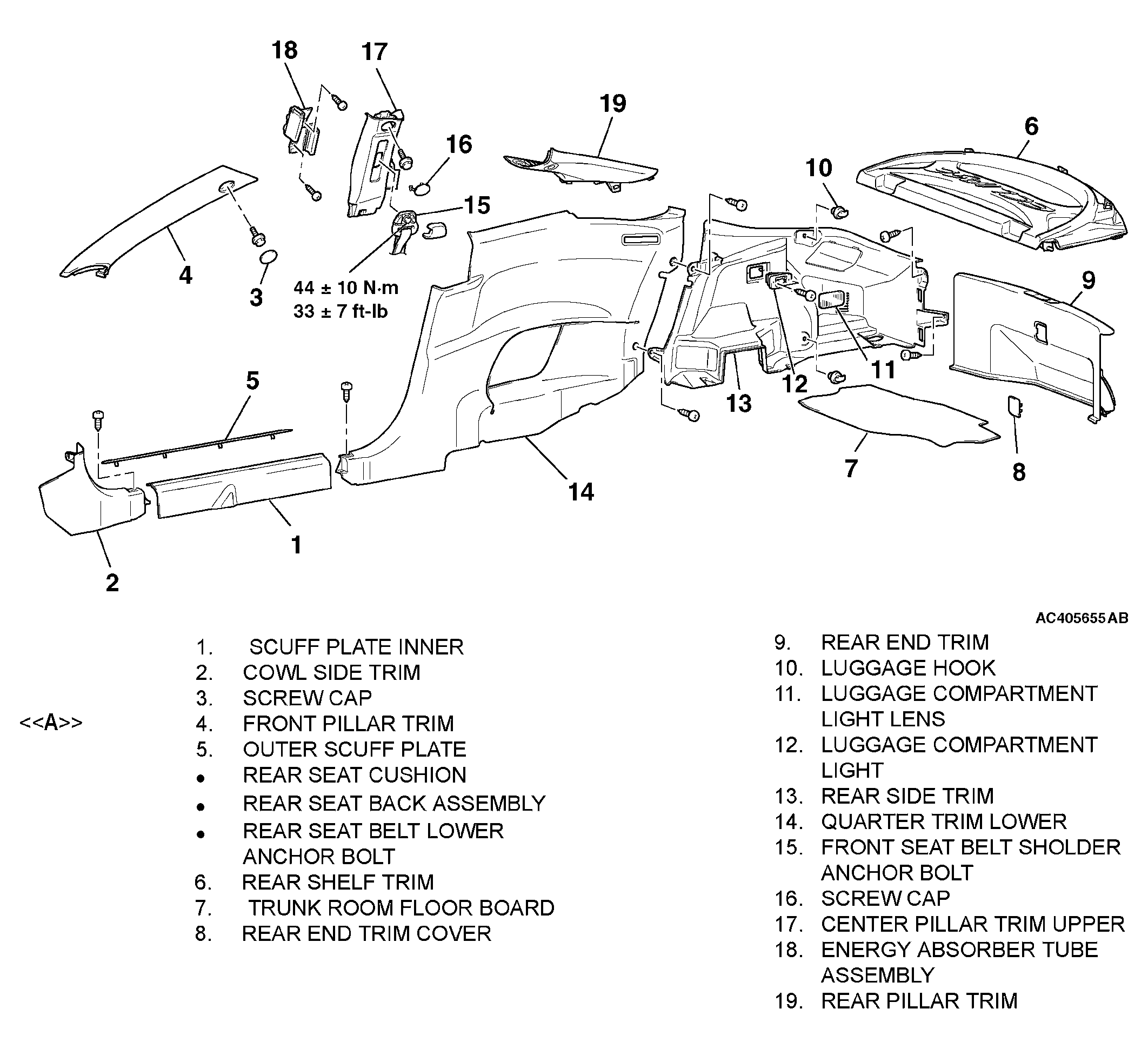

Fig 1: Removing And Installing Interior Trim Pieces With Torque Specifications
G04237794Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

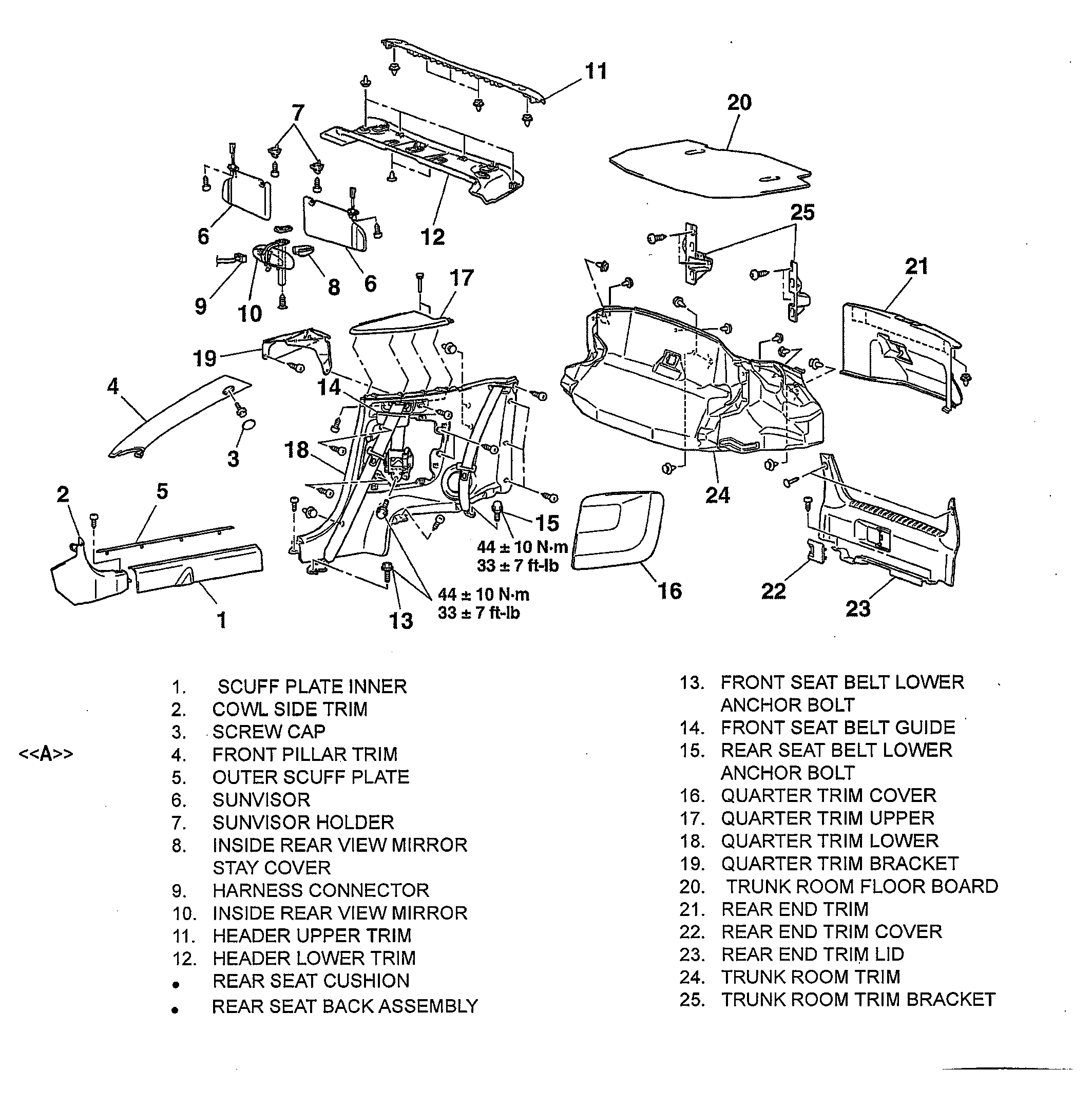

Fig 2: Exploded View Of Interior Trim Pieces With Torque Specifications (Eclipse Spyder)
G00455153Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
