Home >> Mitsubishi >> 2008 >> Outlander LS, FWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Body >> Sunroof >> Inspection >> Disassembly And Assembly >> Notes

Disassembly And Assembly: Notes

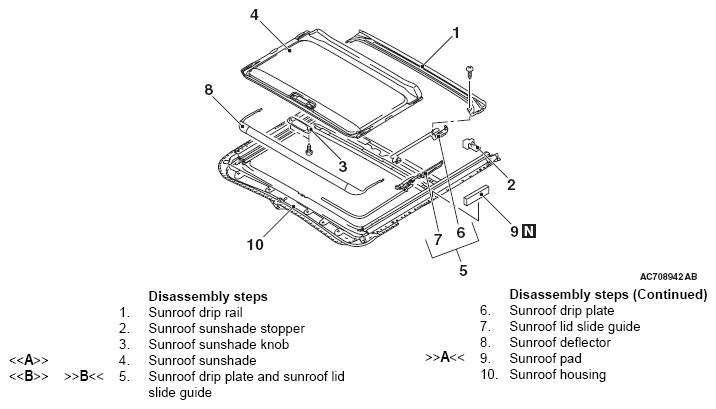

Fig 1: Exploded View Of Sunroof
G05433069Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
