Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| Auxiliary Relay Box | Left side of engine compartment. |
| Fusible Links No. 1, 20 & 21 | On ETACS-ECU. See Figure. |
| Fusible Links No. 24, 25, 26, 27, 28, 29 & 30 | In engine room relay box. See Figure. |
| Fusible Links No. 33, 34, 35, 36 & 37 | On positive terminal of battery. See Figure. |

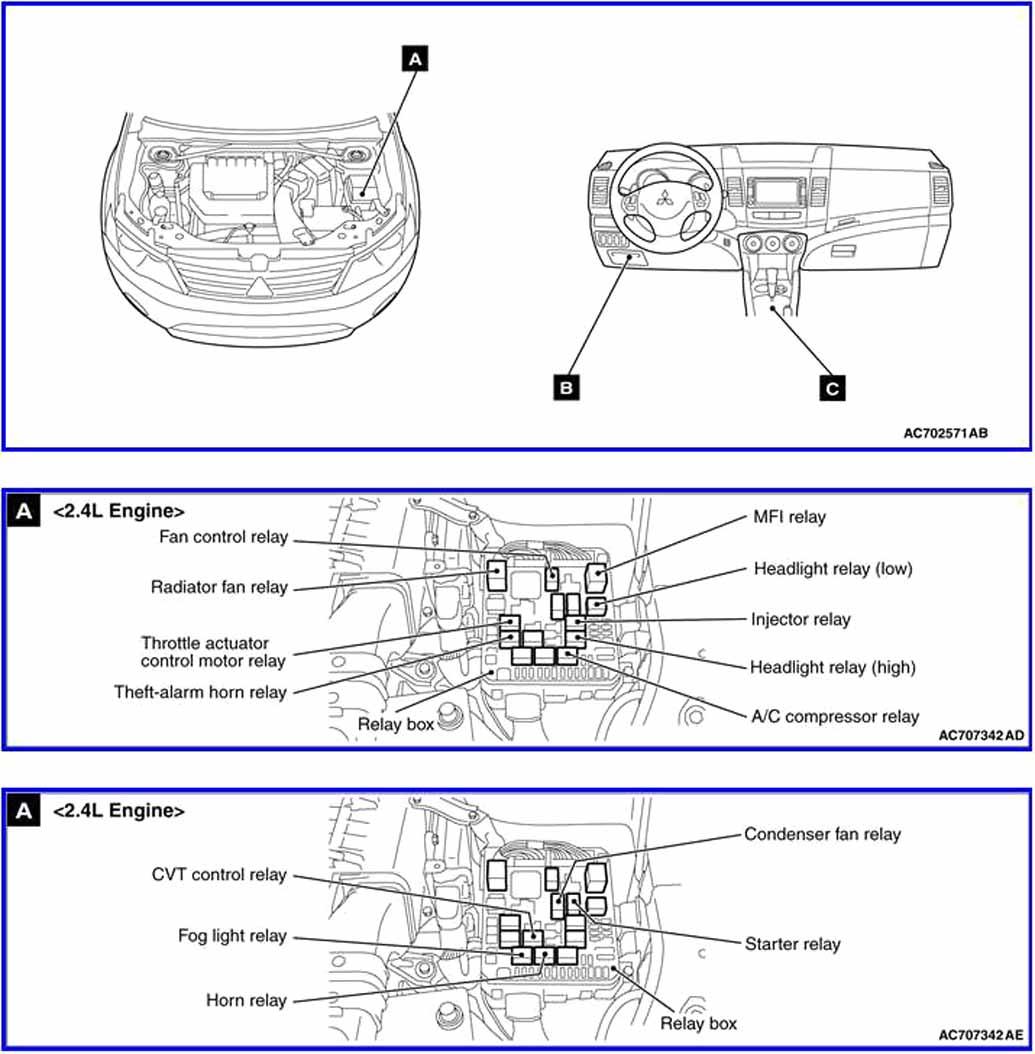

| Relay Box (Engine Room) | Left side of engine compartment. See Figure. |
