Theft Protection Label: Locations

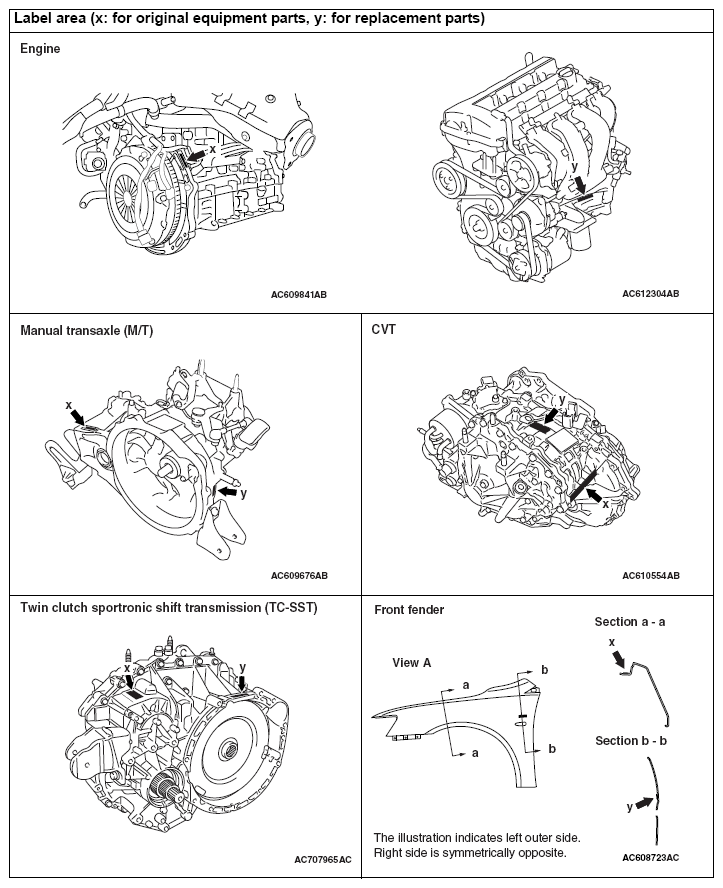

Fig 1: Identifying Theft Protection Label Locations (1 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

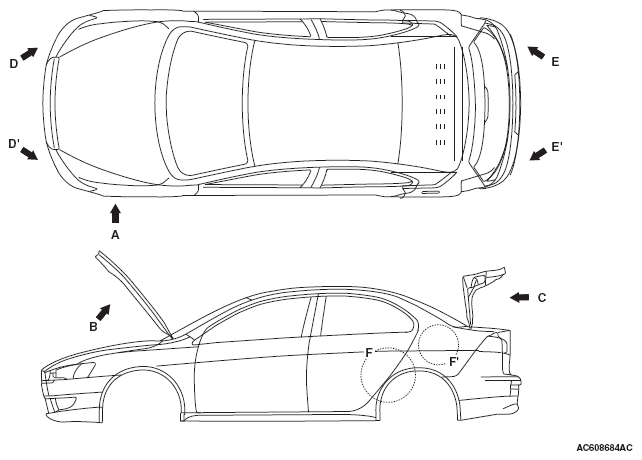

Fig 2: Identifying Theft Protection Label Locations (2 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

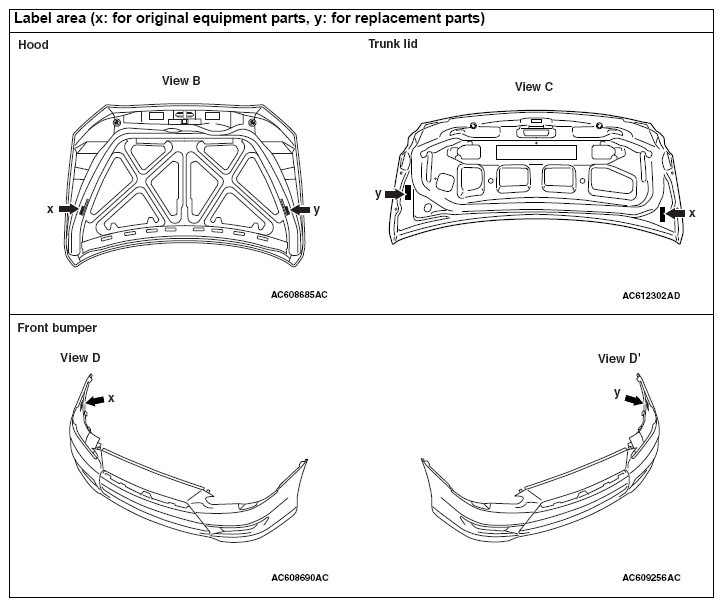

Fig 3: Identifying Theft Protection Label Locations (3 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

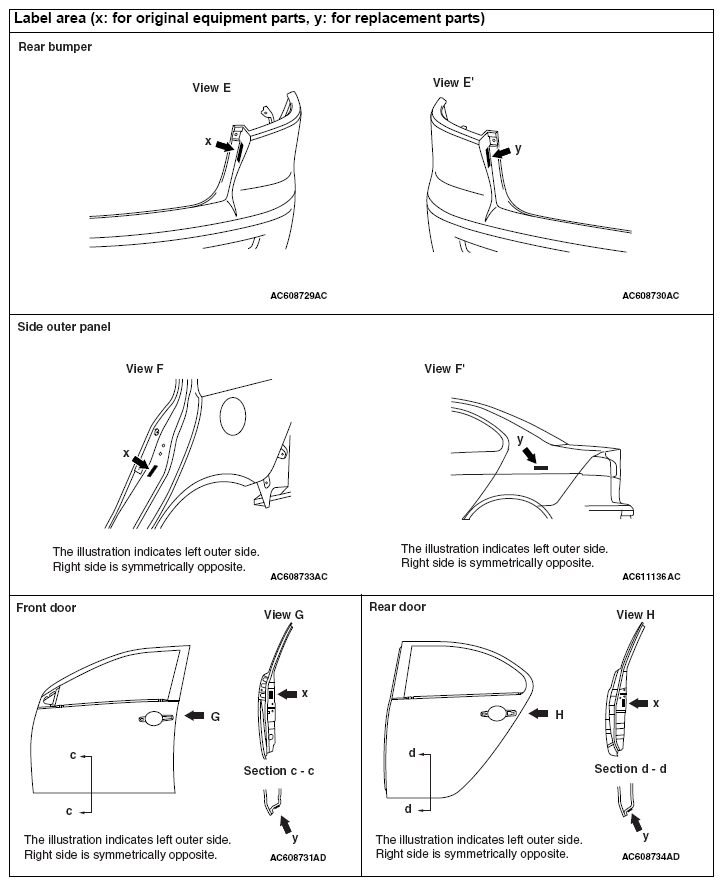

Fig 4: Identifying Theft Protection Label Locations (4 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
