Removal And Installation

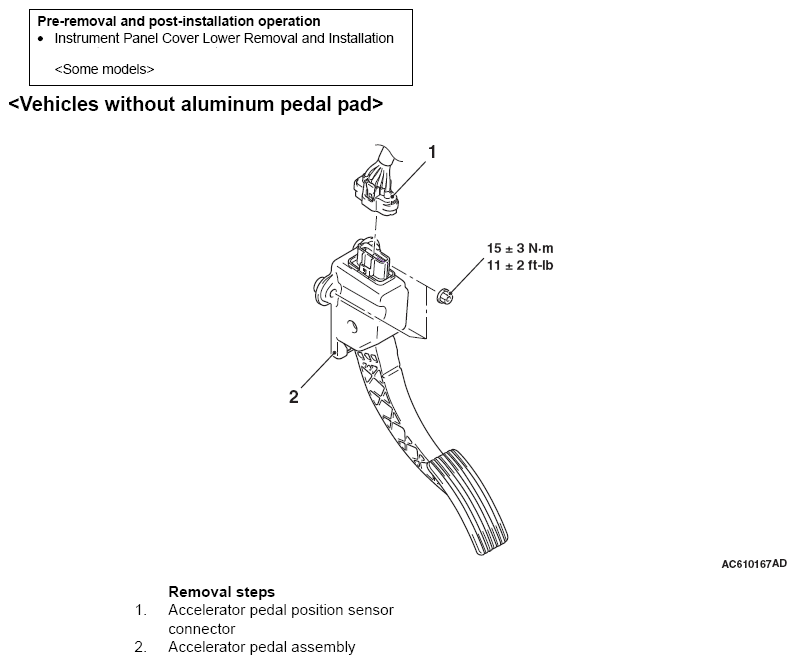

Fig 1: Accelerator Pedal Assembly And Accelerator Pedal Position Sensor With Torque Specifications
G06671961Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

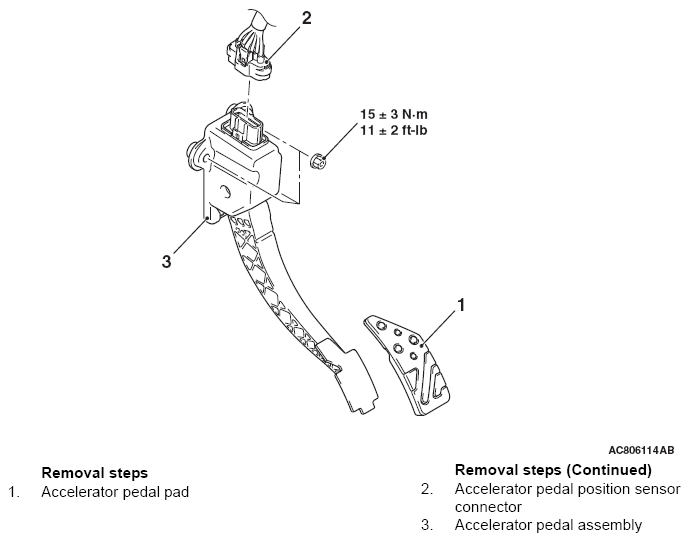

Fig 2: Accelerator Pedal Assembly And Accelerator Pedal Position Sensor Connector With Torque Specifications
G06671962Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
