Removal And Installation
Removal And Installation

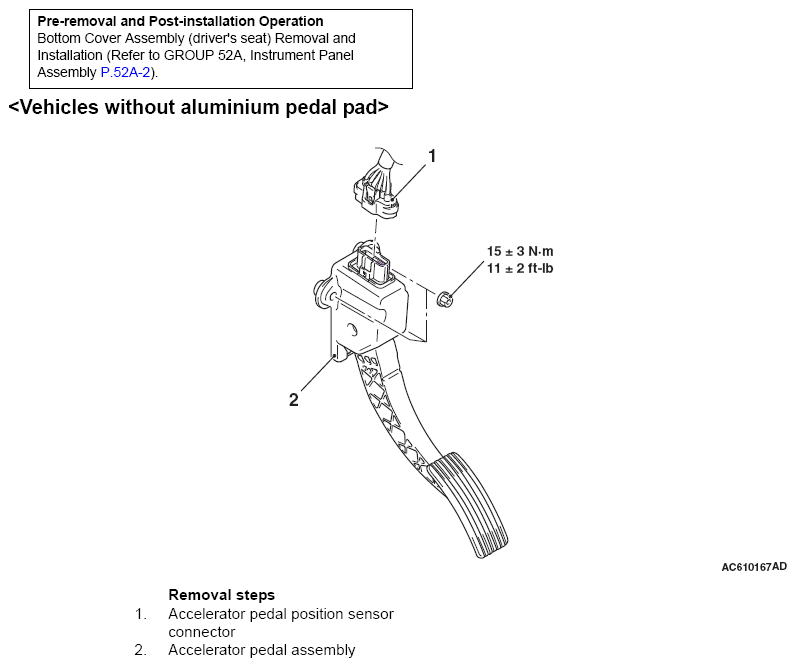

Fig 1: Accelerator Pedal Replacement Components (Vehicle Without Aluminum Pedal Pad) With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

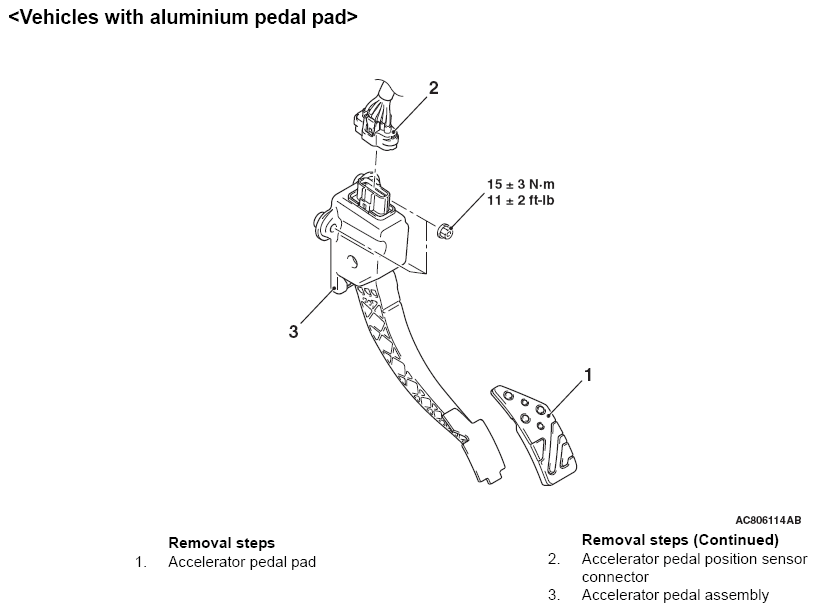

Fig 2: Accelerator Pedal Replacement Components (Vehicle With Aluminum Pedal Pad) With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
