Home >> Mitsubishi >> 2011 >> Eclipse GT >> Repair and Diagnosis >> Body & Frame >> Ignition Switch/Steering Lock >> Ignition Switch >> Removal And Installation >> Notes

Removal And Installation: Notes

WARNING:
CAUTION: When the steering lock cylinder is replaced, register the encrypted code. Refer to ENCRYPTED CODE REGISTRATION CRITERIA TABLE .

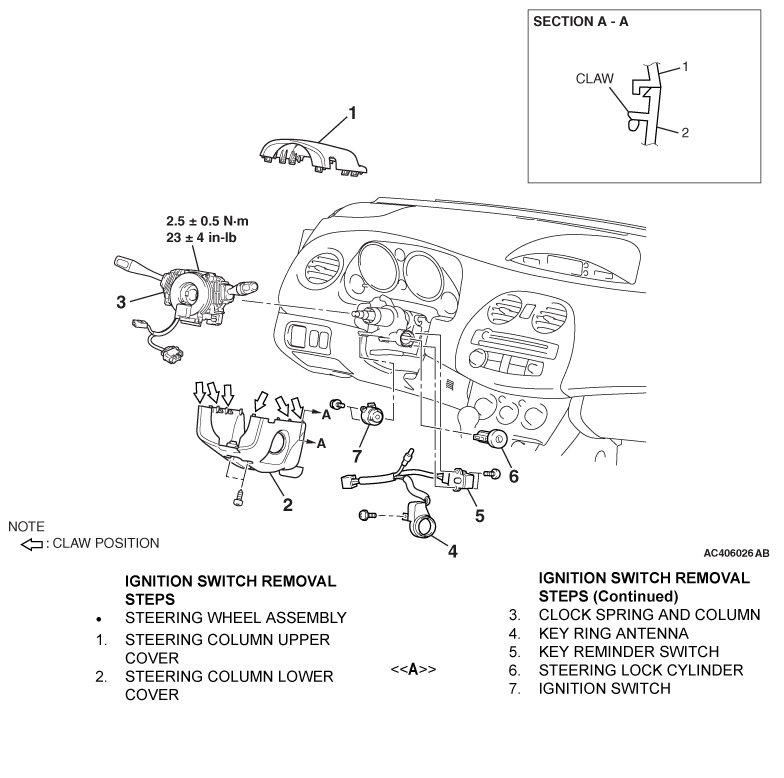

Fig 1: Ignition Switch Replacement Components With Torque Specifications
G06692501Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
