Transaxle Control: Inspection

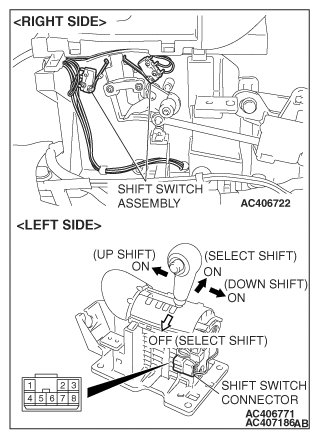

SHIFT SWITCH ASSEMBLY CONTINUITY CHECK <VEHICLES WITH SPORT MODE>
CONTINUITY SPECIFICATION
| SWITCH POSITION |
TERMINAL NO. |
| Select switch (select shift) |
ON |
1 - 6 |
| OFF |
1 - 8 |
| Shift switch (up shift) |
ON |
2 - 7 |
| OFF |
- |
| Shift switch (down shift) |
ON |
2 - 3 |
| OFF |
- |
