Removal And Installation: Notes

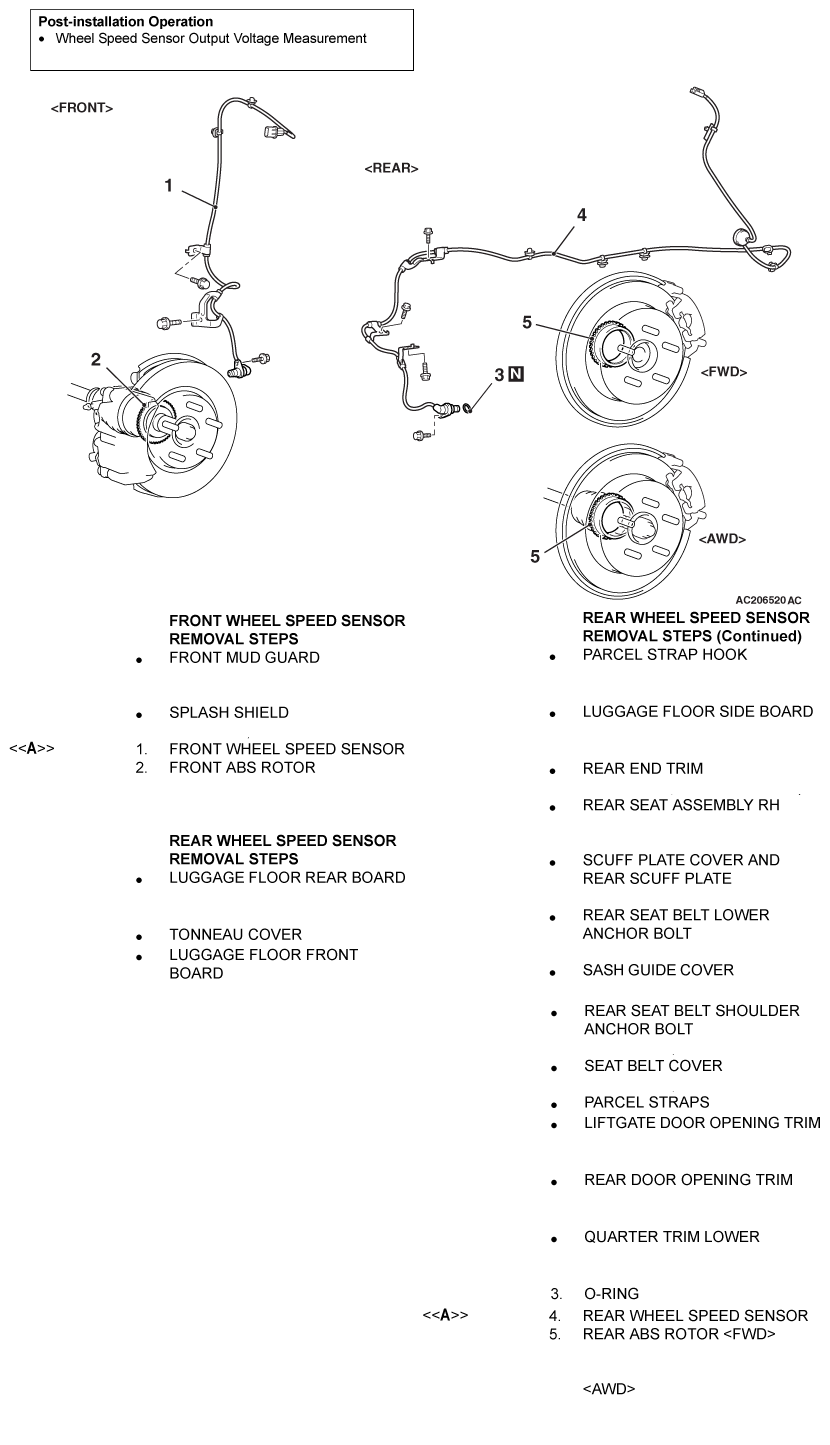

Fig 1: Removal/Installation Of Wheel Speed Sensor Components

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: Front ABS rotors and rear ABS rotors (AWD) are integrated with the BJ assembly of the drive shaft and cannot be disassembled.

NOTE: Rear ABS rotors (FWD) are integrated with the rear hub assembly and cannot be disassembled.
