OEM Component Locations: Sensor

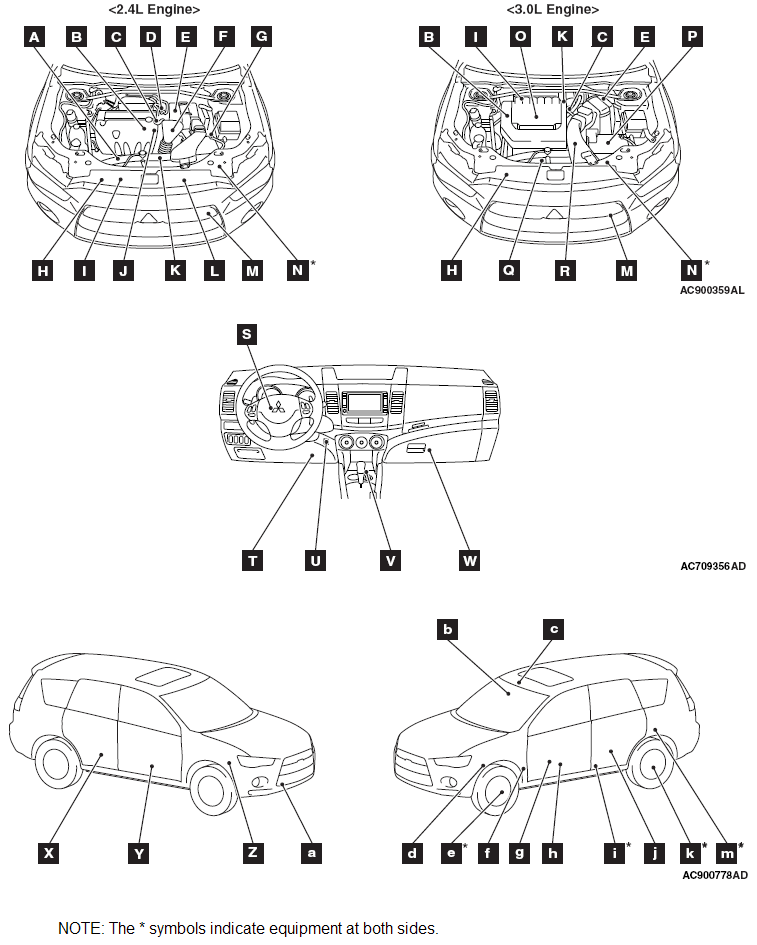

SENSOR REFERENCE CHART
| Name | Symbol |
|---|---|
| A/C pressure sensor | H |
| Accelerator pedal position sensor | T |
| Air thermo sensor | W |
| Ambient air temperature sensor | M |
| Battery current sensor < 2.4L engine > | G |

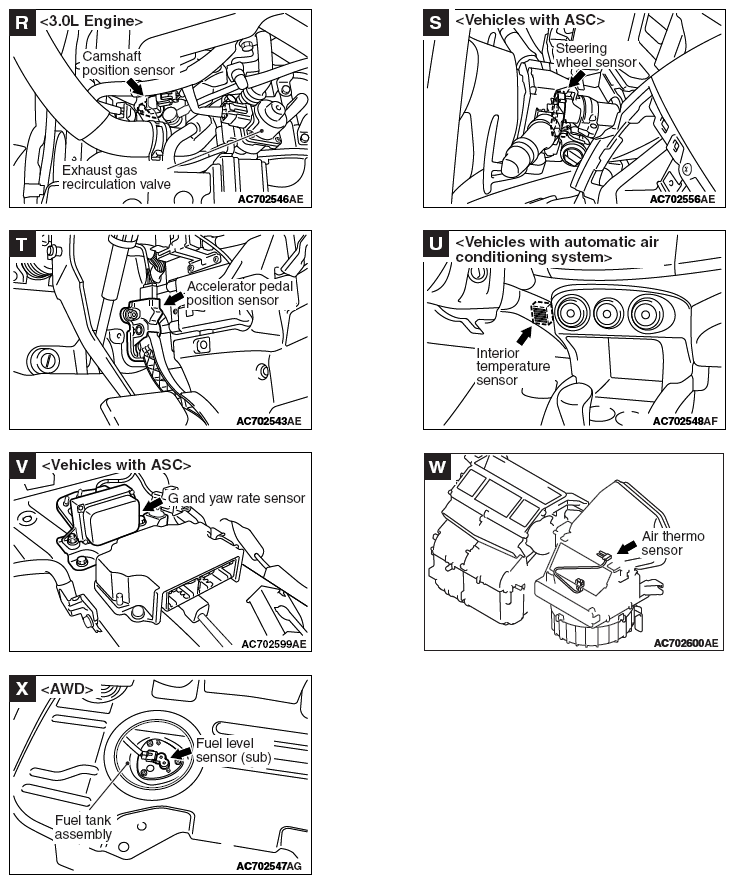

| Camshaft position sensor < 3.0L Engine > | R |
| Crankshaft position sensor | B |
| Engine coolant temperature sensor | C |
| Exhaust camshaft position sensor < 2.4L Engine > | D |
| Front impact sensor | N |
| Front wheel speed sensor | e |
| Fuel level sensor (sub) < AWD > | X |
| Fuel pump module (incorporating fuel level sensor (main) and fuel tank temperature sensor) | j |
| Fuel tank differential pressure sensor | j |
| G and yaw rate sensor < Vehicles with ASC > | V |
| Heated oxygen sensor < 2.4L Engine > | h |
| Input shaft speed sensor < 3.0L Engine > | P |
| Intake camshaft position sensor < 2.4L Engine > | J |
| Interior temperature sensor < Vehicles with automatic air conditioning system > | U |

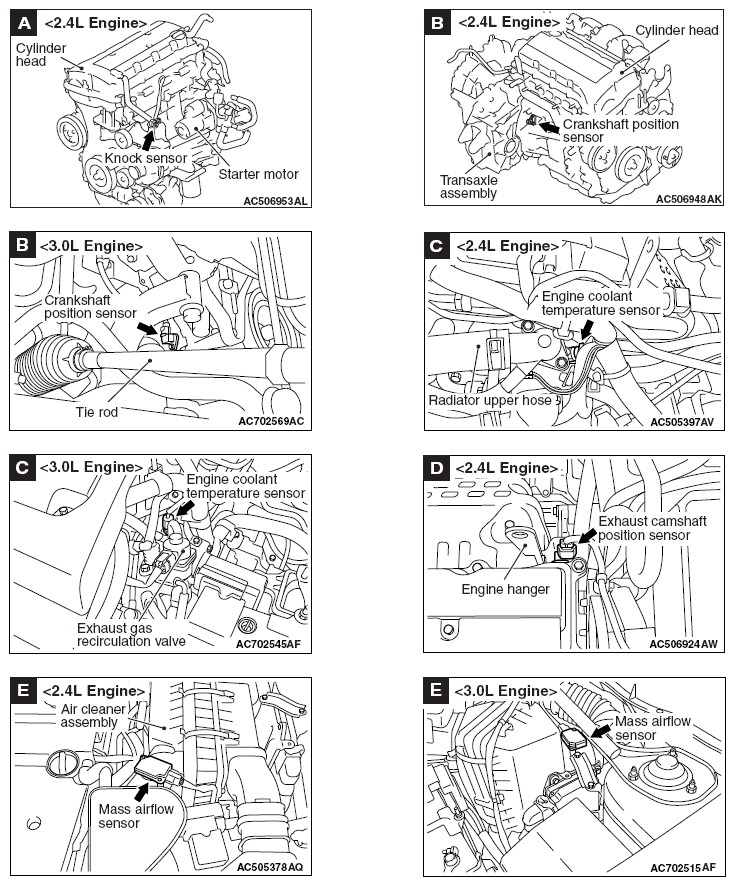

| Knock sensor < 2.4L Engine > | A |
| Knock sensor 1 < 3.0L Engine > | O |
| Knock sensor 2 < 3.0L Engine > | O |
| Left bank heated oxygen sensor (front) < 3.0L Engine > | Q |
| Left bank heated oxygen sensor (rear) < 3.0L Engine > | a |
| Lighting control sensor < Vehicles with automatic light > | b |
| Linear air-fuel ratio sensor < 2.4L Engine > | f |
| Manifold absolute pressure sensor | I |
| Mass airflow sensor | E |

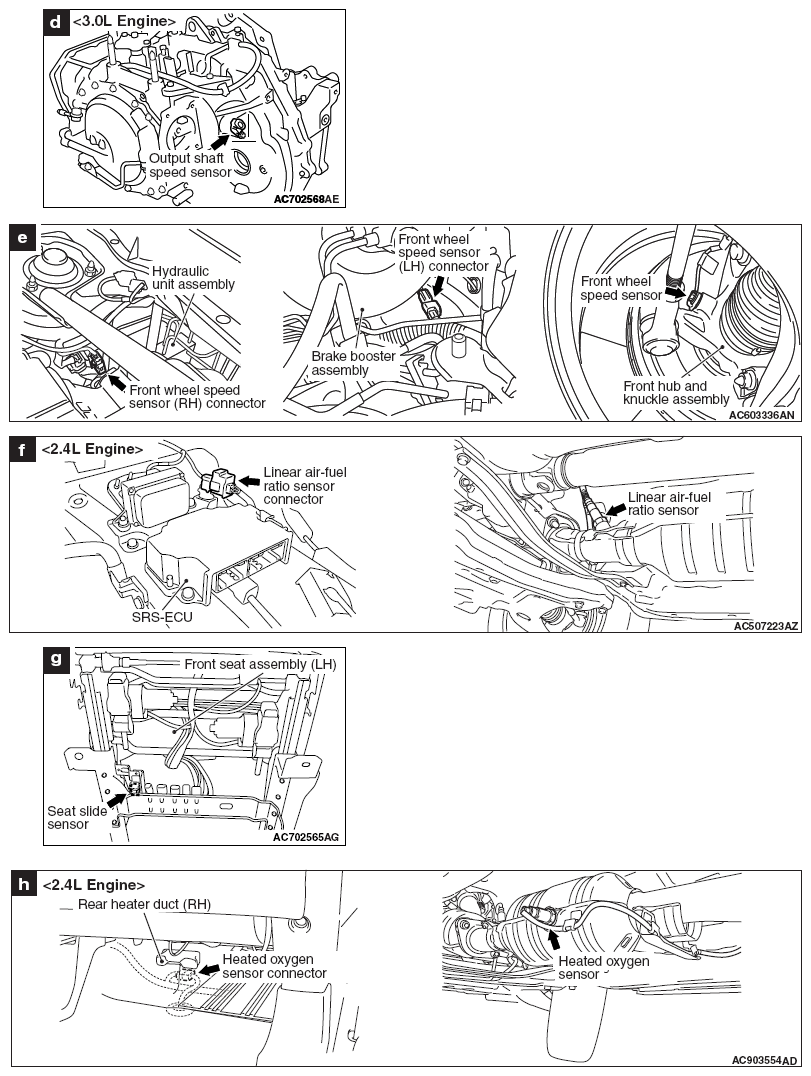

| Output shaft speed sensor < 3.0L Engine > | d |
| Primary pulley speed sensor < 2.4L Engine > | L |
| Rear wheel speed sensor | k |
| Right bank heated oxygen sensor (front) < 3.0L Engine > | Z |
| Right bank heated oxygen sensor (rear) < 3.0L Engine > | Z |
| Seat slide sensor | g |

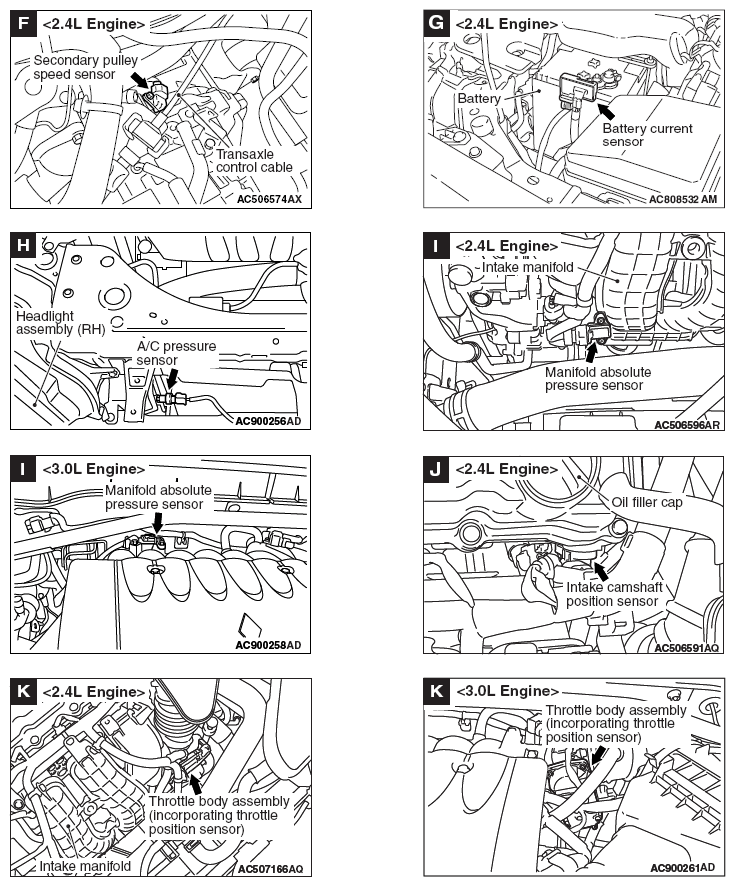

| Secondary pulley speed sensor < 2.4L Engine > | F |

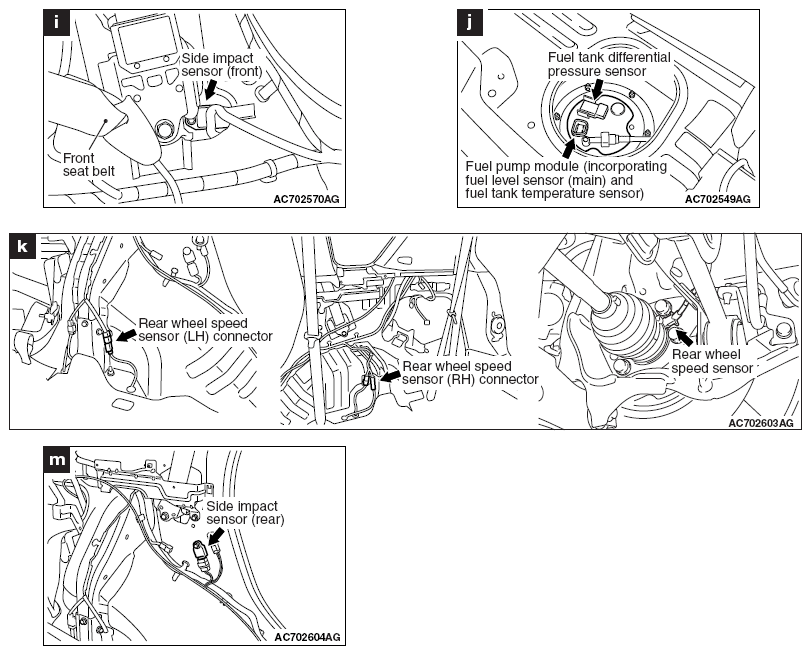

| Side impact sensor (front) | i |
| Side impact sensor (rear) | m |
| Steering wheel sensor < Vehicles with ASC > | S |
| Theft-alarm sensor | c |
| Throttle body assembly (incorporating throttle position sensor) | K |

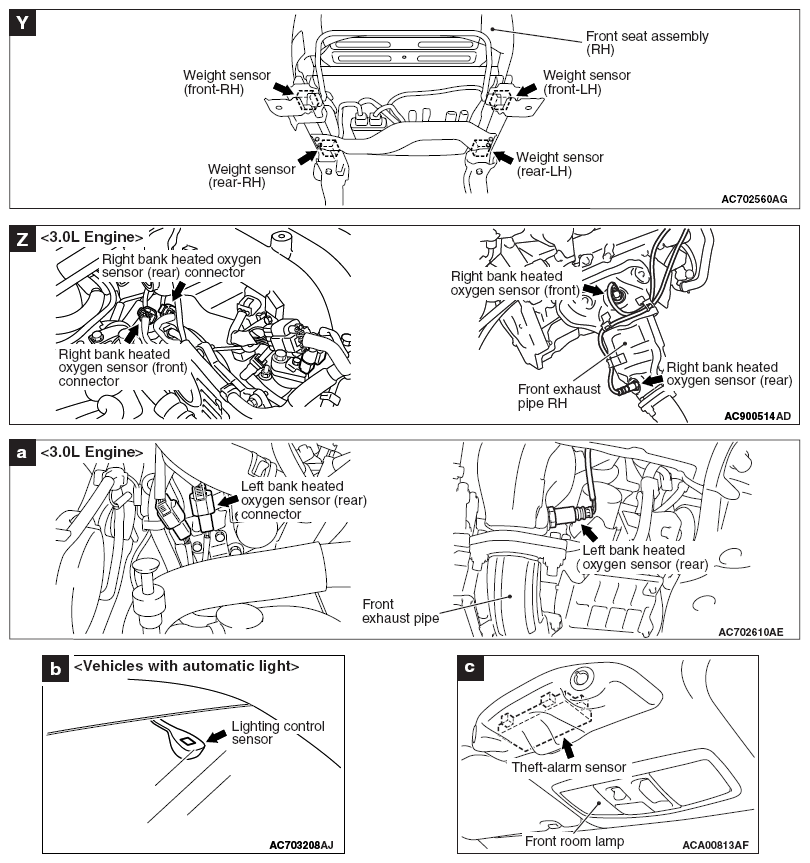

| Weight sensor | Y |
