OEM Component Locations: Grounding

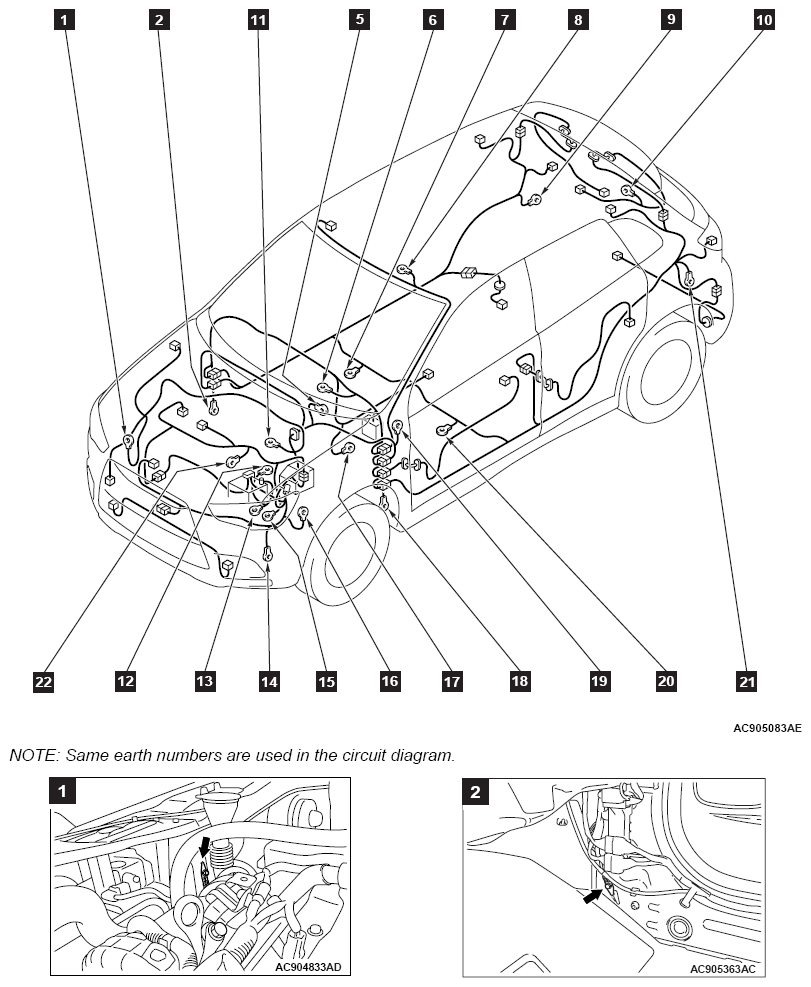

Fig 1: Locating Grounding Points (1 Of 3)
G07056671Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

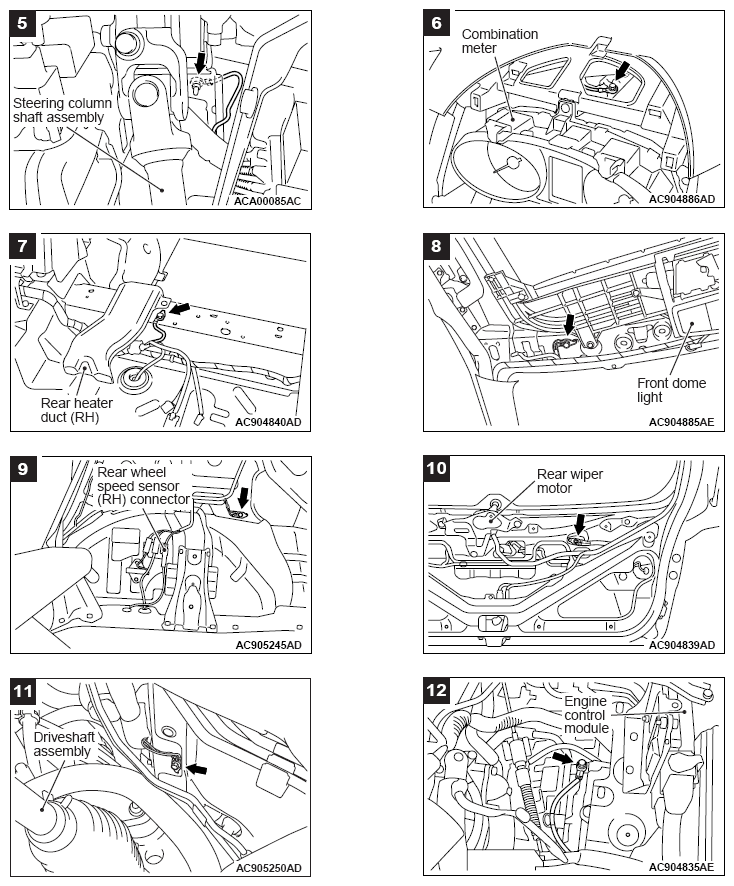

Fig 2: Locating Grounding Points (2 Of 3)
G07056672Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

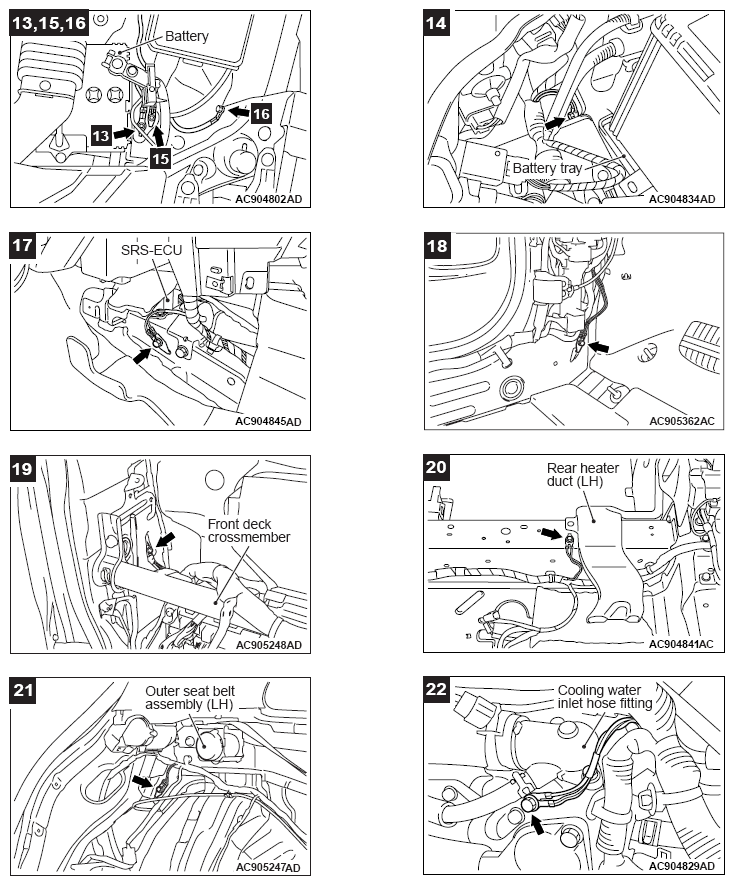

Fig 3: Locating Grounding Points (3 Of 3)
G07056673Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
