OEM Component Locations: Relay

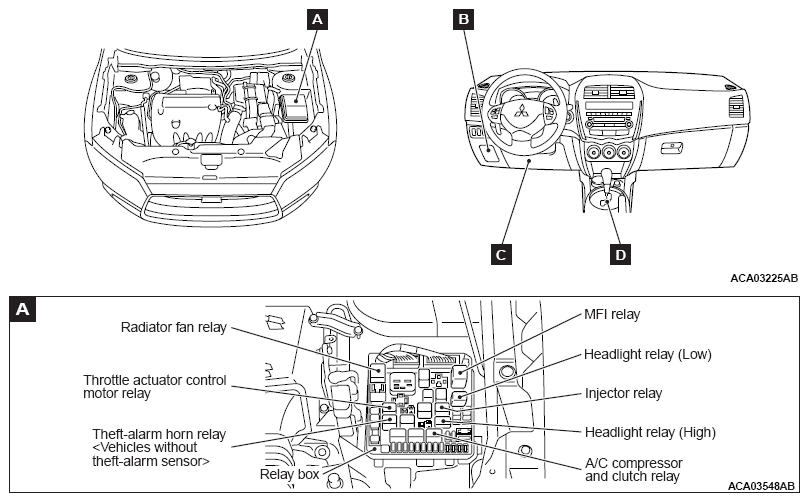

Fig 1: Locating Relay (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

RELAY REFERENCE CHART

Name	Symbol
A/C compressor and clutch relay	A
Headlight relay (High)	A
Headlight relay (Low)	A
Injector relay	A
MFI relay	A
Radiator fan relay	A
Theft-alarm horn relay < Vehicles without theft-alarm sensor >	A
Throttle actuator control motor relay	A

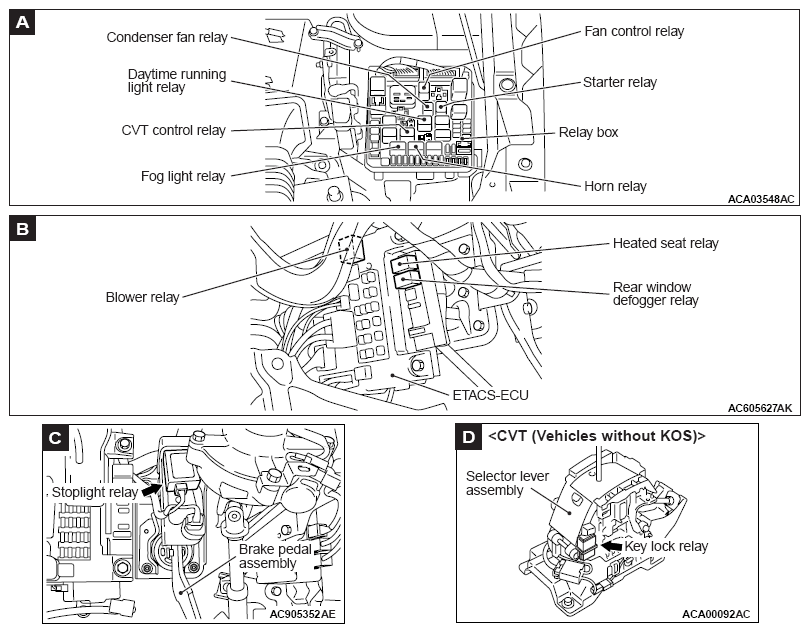

Fig 2: Locating Relay (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

RELAY REFERENCE CHART

Name	Symbol
Blower relay	B
Condenser fan relay	A
CVT control relay	A
Daytime running light relay	A
Fan control relay	A
Fog light relay	A
Heated seat relay	B
Horn relay	A
Key lock relay < CVT (Vehicles without KOS) >	D
Rear window defogger relay	B
Starter relay	A
Stoplight relay	C
