OEM Component Locations: Sensor

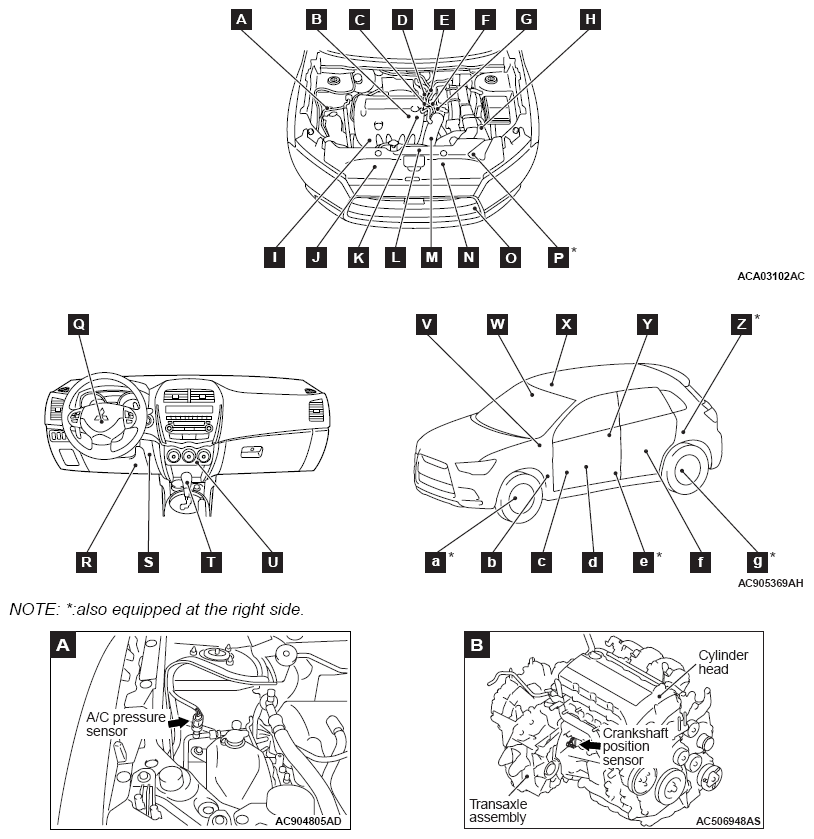

SENSOR REFERENCE CHART
| Name | Symbol |
|---|---|
| A/C pressure sensor | A |

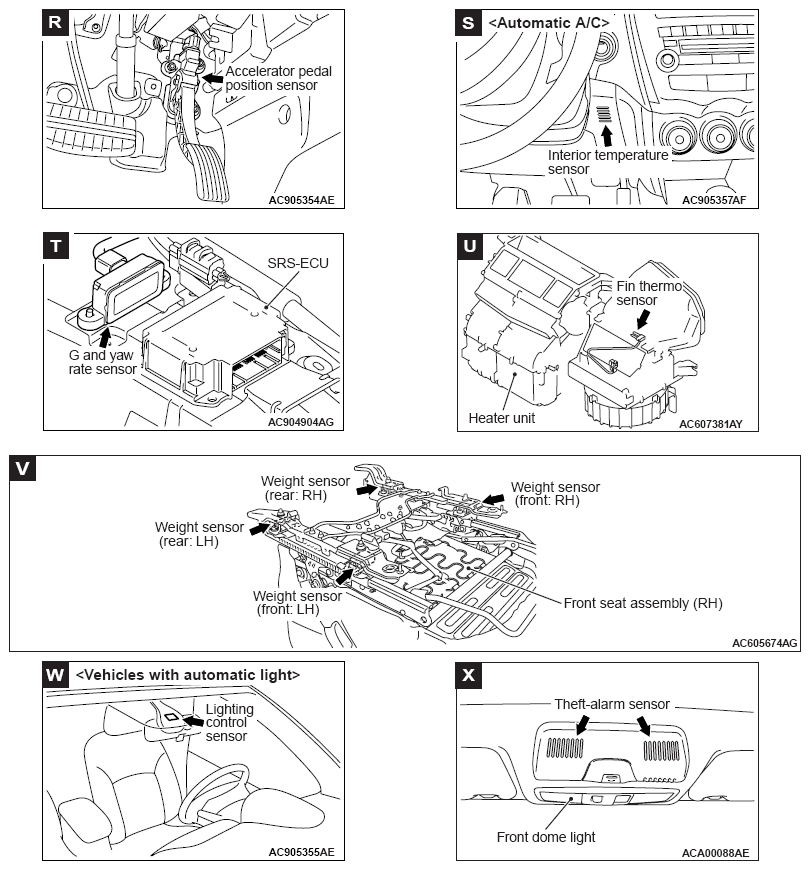

| Accelerator pedal position sensor | R |
| Ambient air temperature sensor | O |
| Battery current sensor | H |
| Crankshaft position sensor | B |

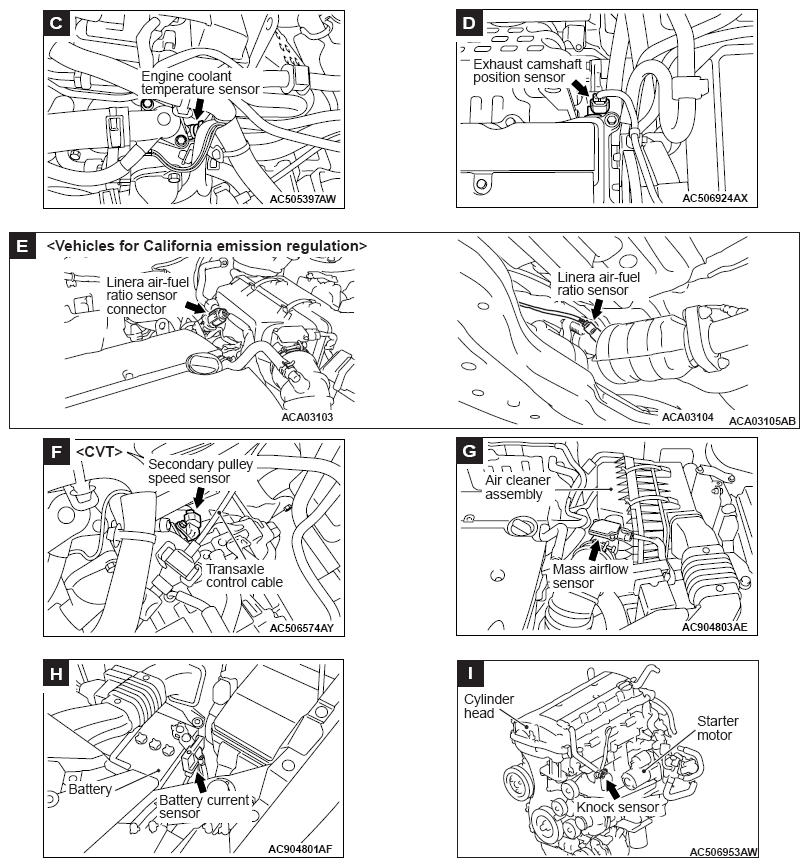

| Engine coolant temperature sensor | C |
| Exhaust camshaft position sensor | D |
| Fin thermo sensor | U |
| Front impact sensor | P |
| Front wheel speed sensor | a |

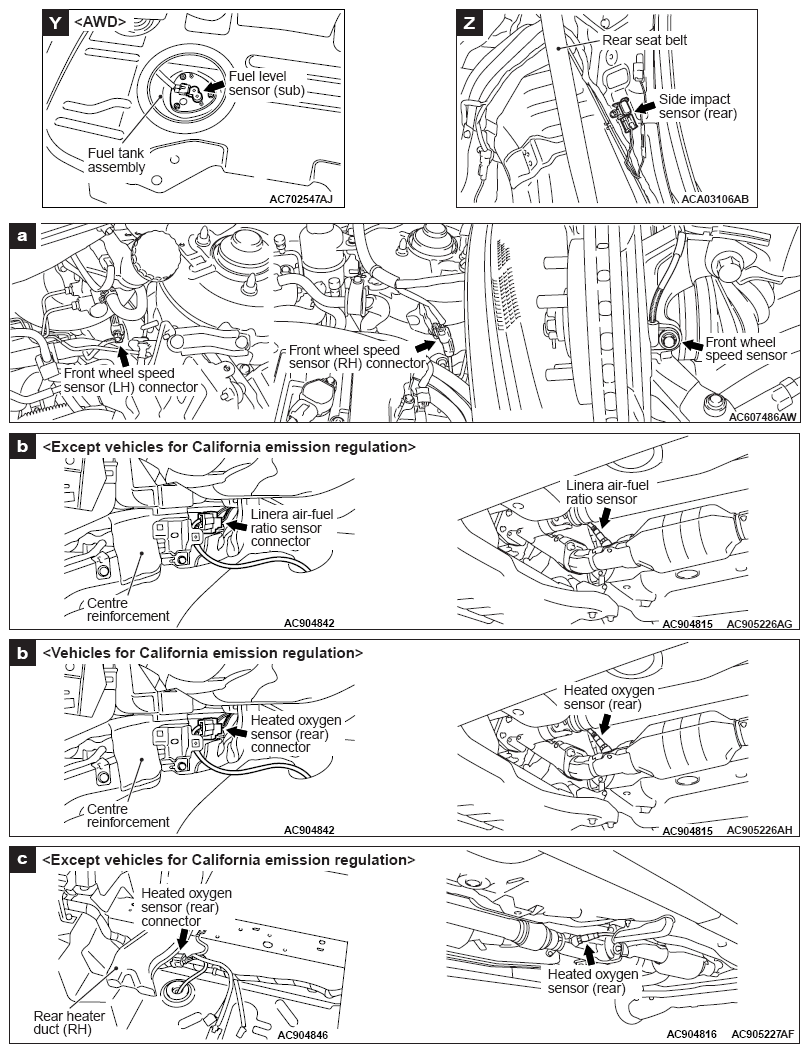

| Fuel level sensor (sub) < AWD > | Y |
| Fuel pump module (incorporating fuel level sensor (main) and fuel tank temperature sensor) | f |
| Fuel tank differential pressure sensor | f |
| G and yaw rate sensor | T |

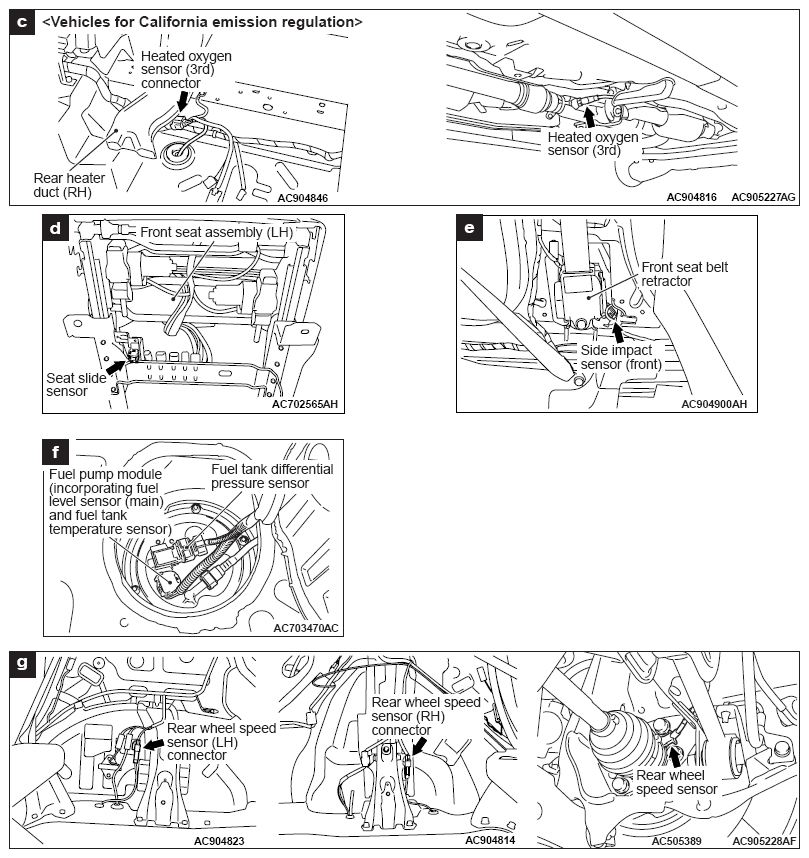

| Heated oxygen sensor (3rd) < Vehicles for California emission regulation > | c |
| Heated oxygen sensor (rear) < Except vehicles for California emission regulation > | c |
| Heated oxygen sensor (rear) < Vehicles for California emission regulation > | b |
| Intake camshaft position sensor | K |
| Interior temperature sensor < Automatic A/C > | S |
| Knock sensor | I |
| Lighting control sensor < Vehicles with automatic light > | W |
| Linear air-fuel ratio sensor < Except vehicles for California emission regulation > | b |
| Linear air-fuel ratio sensor < Vehicles for California emission regulation > | E |

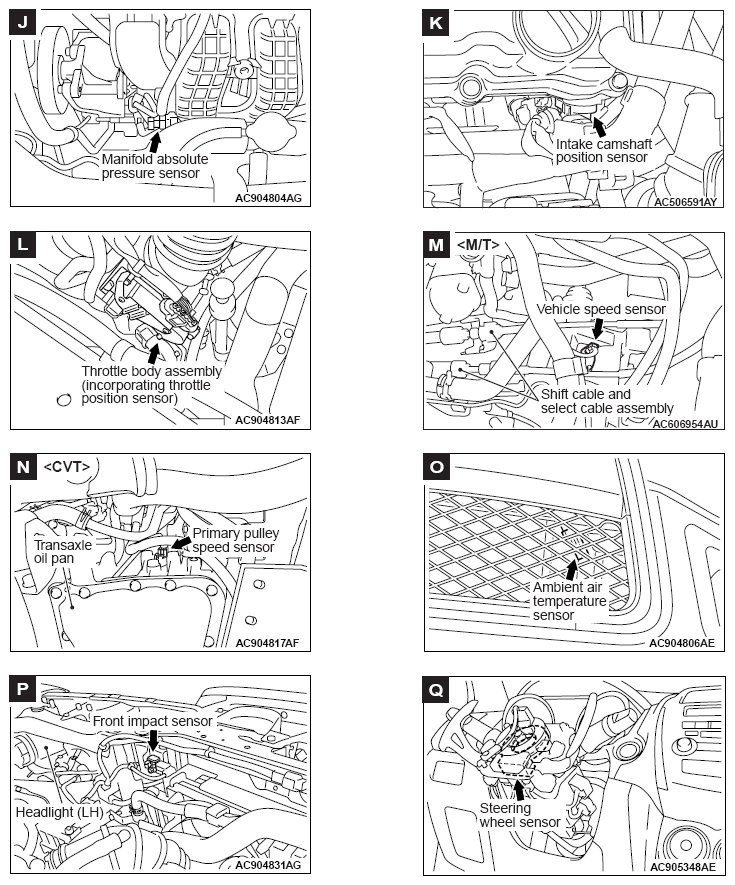

| Manifold absolute pressure sensor | J |
| Mass airflow sensor | G |
| Primary pulley speed sensor < CVT > | N |
| Rear wheel speed sensor | g |
| Seat slide sensor | d |
| Secondary pulley speed sensor < CVT > | F |
| Side impact sensor (front) | e |
| Side impact sensor (rear) | Z |
| Steering wheel sensor | Q |
| Theft-alarm sensor | X |
| Throttle body assembly (incorporating throttle position sensor) | L |
| Vehicle speed sensor < M/T > | M |
| Weight sensor | V |
