Disassembly And Assembly: Notes

NOTE: For installation and removal, refer to FUEL PUMP MODULE REPLACEMENT .

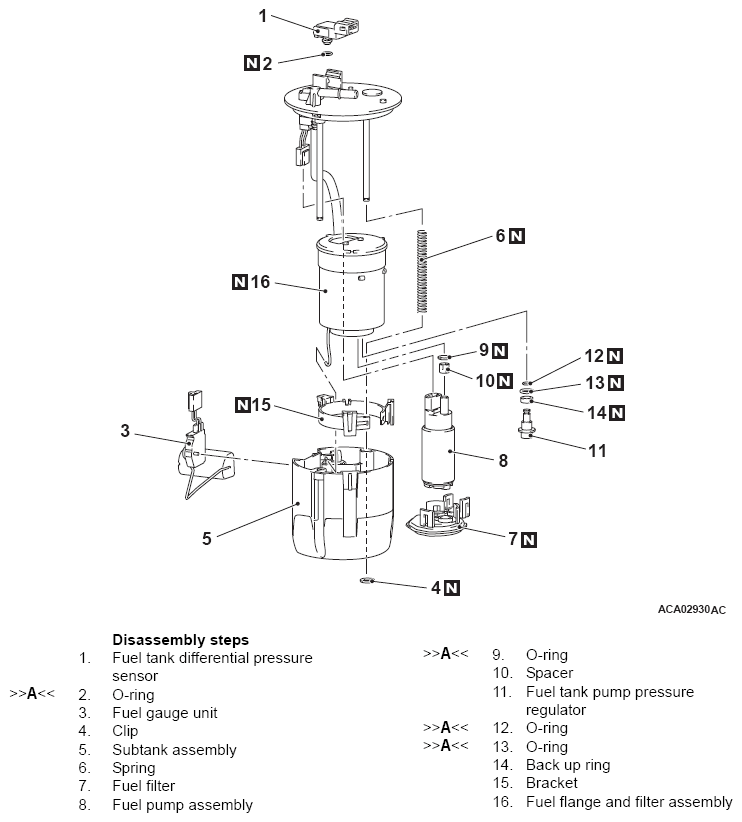

Fig 1: Identifying Fuel Pump Module Disassembly/Assembly Components
G07047192Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
