OEM Component Locations: Relay

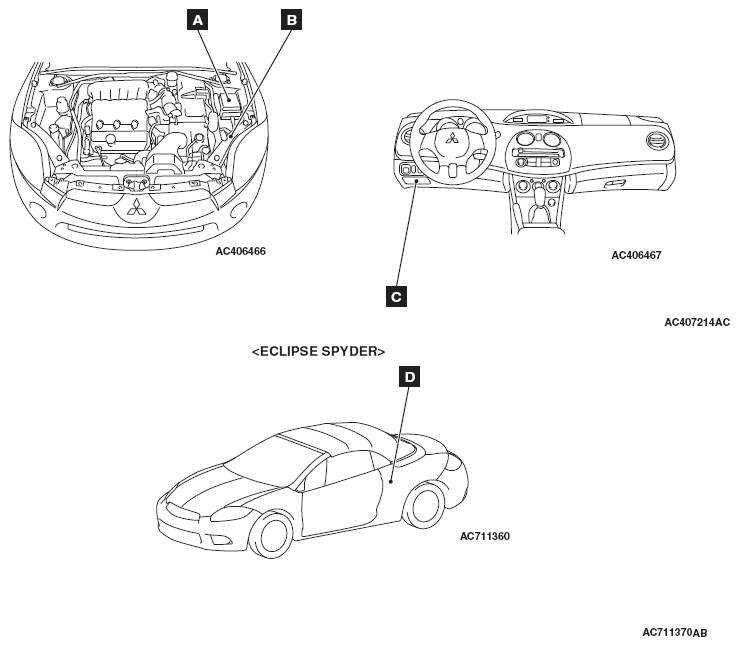

Fig 1: Identifying Relays (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

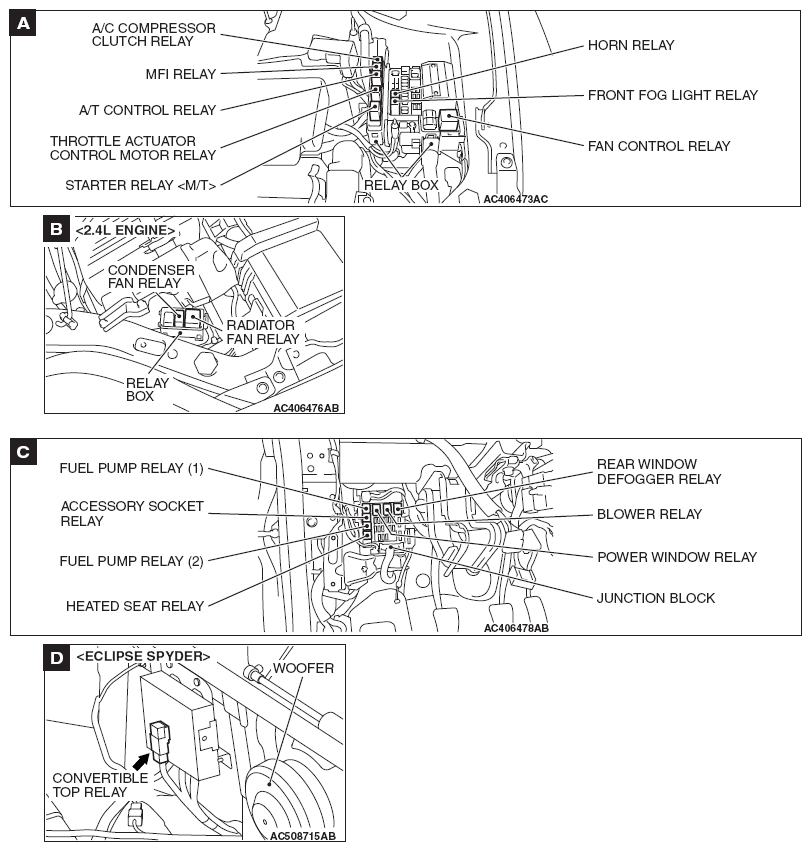

Fig 2: Identifying Relays (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

RELAY SYMBOLS REFERENCE CHART

NAME	SYMBOL
A/C compressor clutch relay	A
A/T control relay	A
Accessory socket relay	C
Blower relay	C
Condenser fan relay <2.4L Engine>	B
Convertible top relay <ECLIPSE SPYDER>	D
Fan control relay	A
Front fog light relay	A
Fuel pump relay (1)	C
Fuel pump relay (2)	C
Heated seat relay	C
Horn relay	A
MFI relay	A
Power window relay	C
Radiator fan relay <2.4L Engine>	B
Rear window defogger relay	C
Starter relay <M/T>	A
Throttle actuator control motor relay	A
