General Description
>>
System Configuration Diagram
System Configuration Diagram

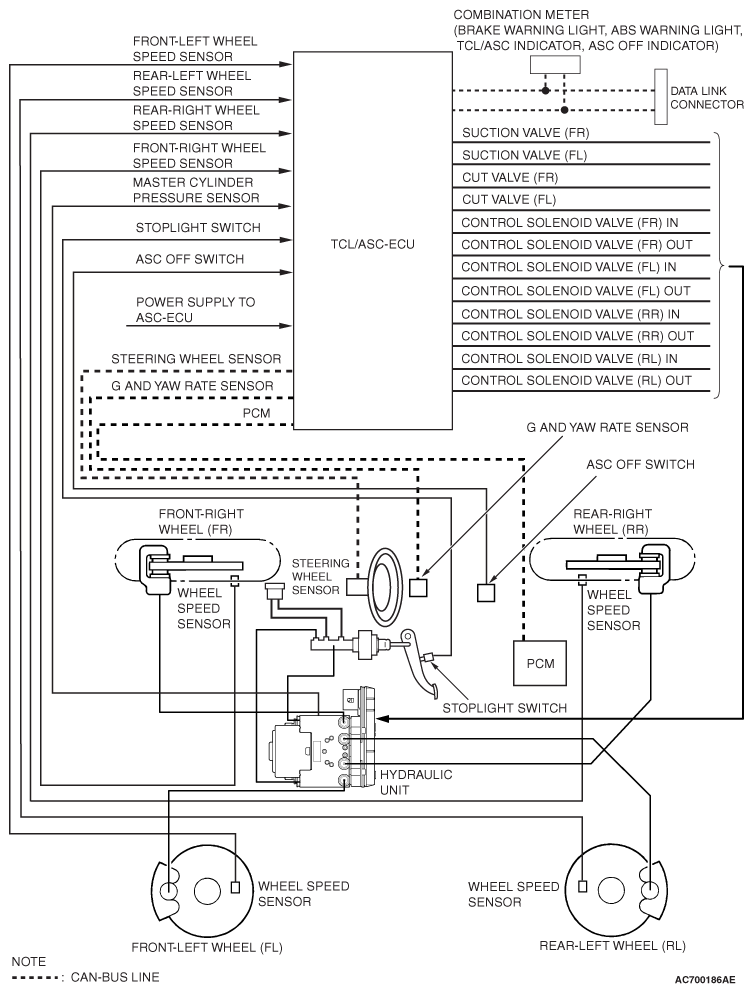

Fig 1: Traction Control/Active Stability Control System Configuration Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
