Mitsubishi
>>
2012
>>
Galant ES
>>
Repair and Diagnosis
>>
Electrical
>>
Charging Systems
>>
Charging System
>>
Generator Assembly
>>
Disassembly And Assembly
>>
2.4L Engine
2.4L Engine

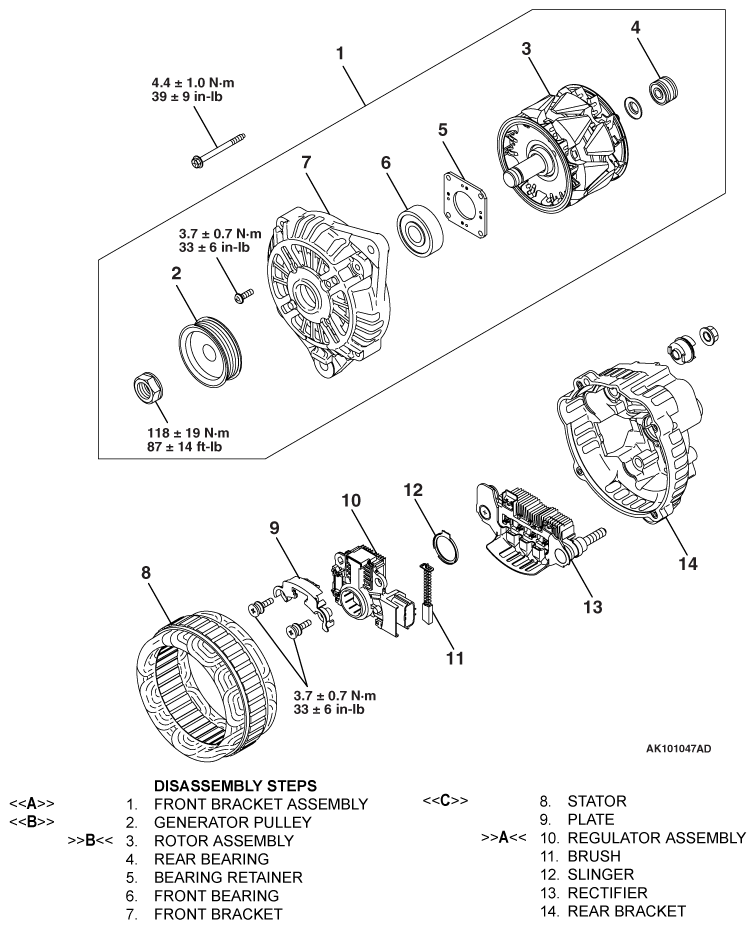

Fig 1: Exploded View Of Generator With Torque Specifications (2.4L Engine)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
