Home >> Mitsubishi >> 2012 >> Lancer Evolution GSR >> Repair and Diagnosis >> Electrical >> Charging Systems >> Charging System - Lancer Evolution >> Generator Assembly >> Disassembly And Assembly >> Notes

Disassembly And Assembly: Notes

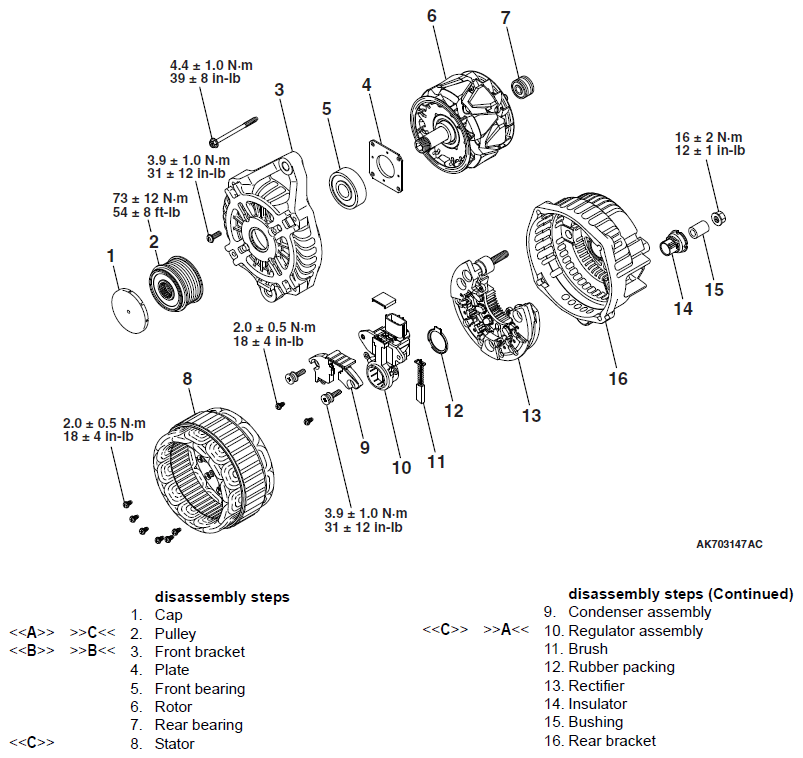

Fig 1: Exploded View Of Generator Assembly With Torque Specifications
G06676710Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
