Home >> Mitsubishi >> 2012 >> Outlander ES >> Repair and Diagnosis >> Electrical >> Horns >> Removal And Installation >> Notes

Removal And Installation: Notes

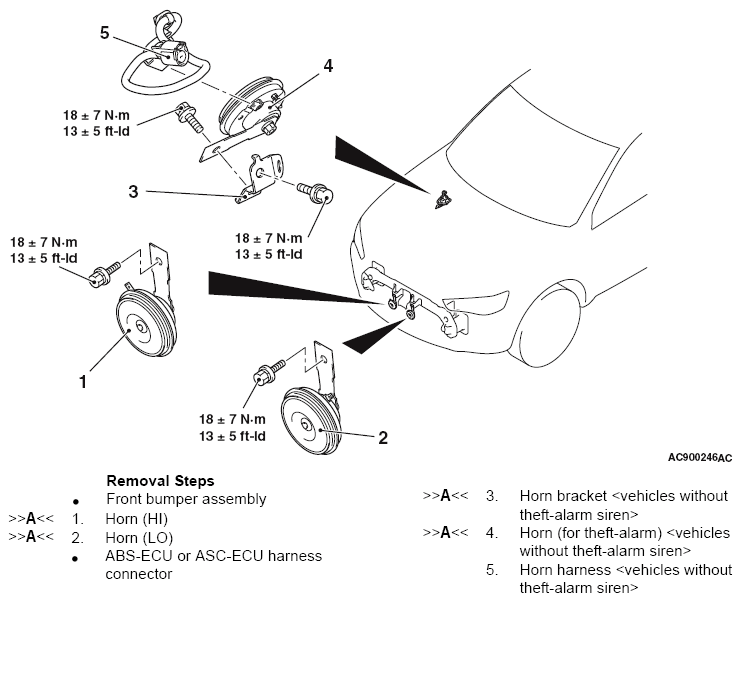

Fig 1: Removing/Installing Horn (HI And LO) With Torque Specifications

G07042981

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
