OEM Component Locations: Relay

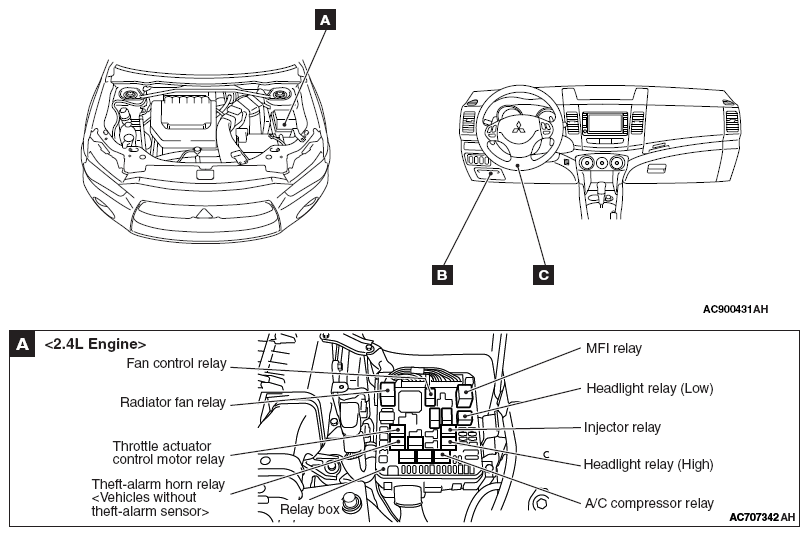

Fig 1: Identifying Relay Locations (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

RELAY IDENTIFICATION

Name	Symbol
A/C compressor relay	A
Fan control relay	A
Headlight relay (High)	A
Headlight relay (Low)	A
Injector relay	A
MFI relay	A
Radiator fan relay	A
Theft-alarm horn relay < Vehicles without theft-alarm sensor >	A
Throttle actuator control motor relay	A

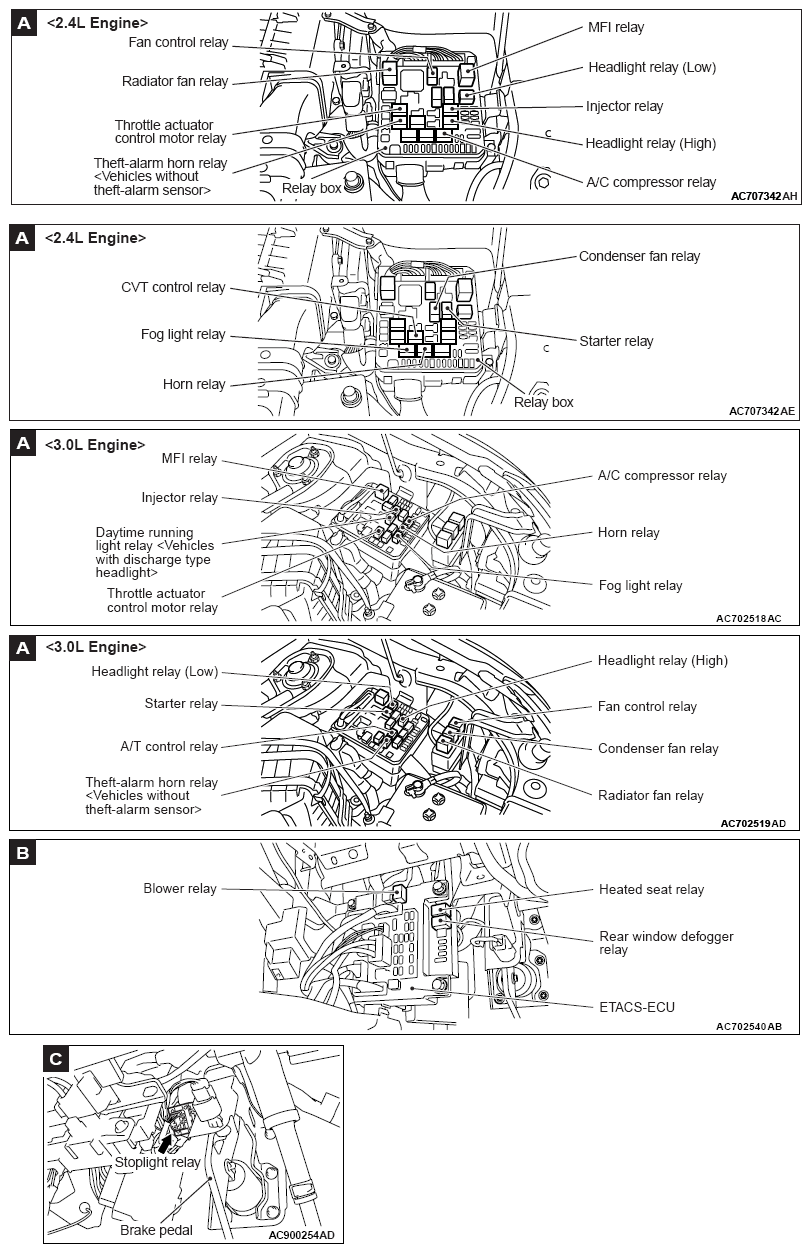

Fig 2: Identifying Relay Locations (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

RELAY IDENTIFICATION

Name	Symbol
A/C compressor relay	A
A/T control relay < 3.0L Engine >	A
Blower relay	B
Condenser fan relay	A
CVT control relay < 2.4L Engine >	A
Daytime running light relay < Vehicles with discharge type headlight >	A
Fan control relay	A
Fog light relay	A
Headlight relay (High)	A
Headlight relay (Low)	A
Heated seat relay	B
Horn relay	A
Injector relay	A
MFI relay	A
Radiator fan relay	A
Rear window defogger relay	B
Starter relay	A
Stoplight relay	C
Theft-alarm horn relay < Vehicles without theft-alarm sensor >	A
Throttle actuator control motor relay	A
