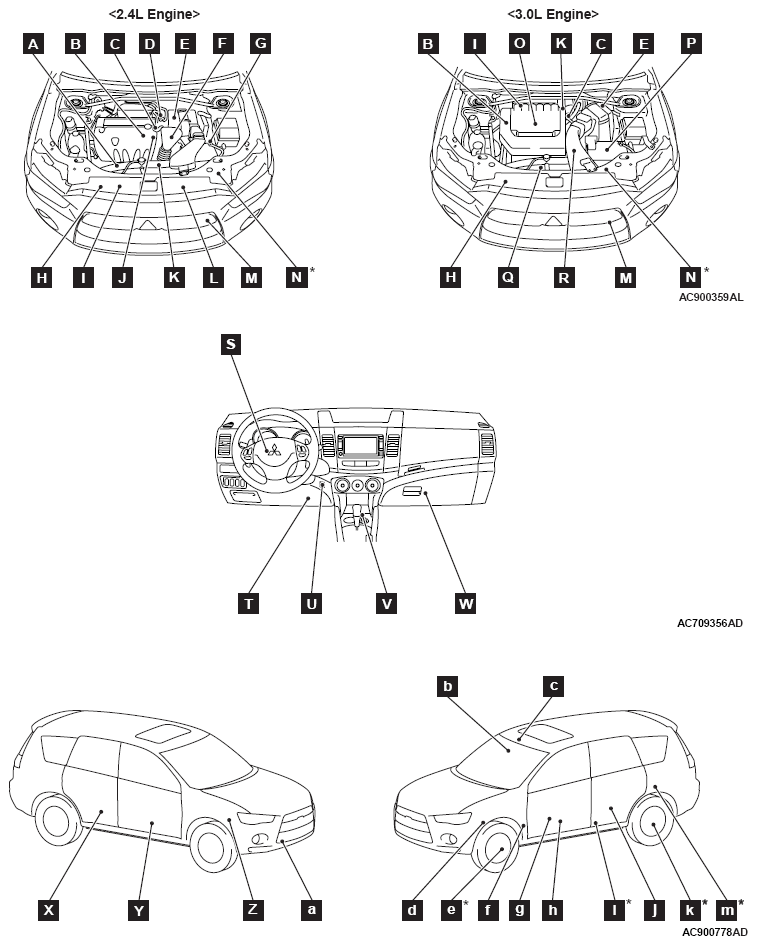

OEM Component Locations: Sensor

Name	Symbol
A/C pressure sensor	H
Accelerator pedal position sensor	T
Air thermo sensor	W
Ambient air temperature sensor	M
Battery current sensor < 2.4L engine >	G

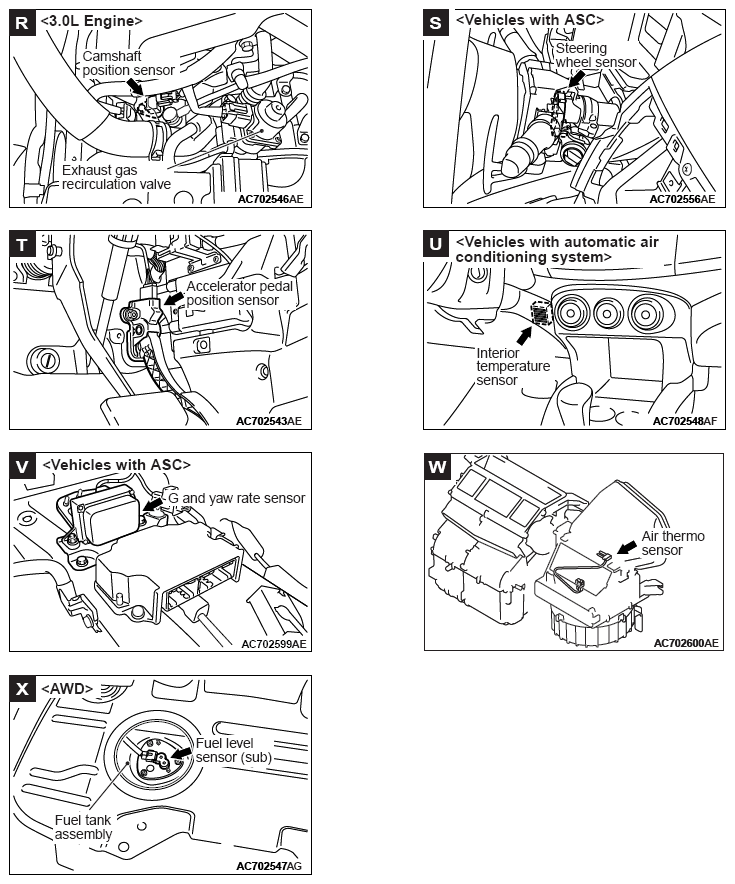

Camshaft position sensor < 3.0L Engine >	R

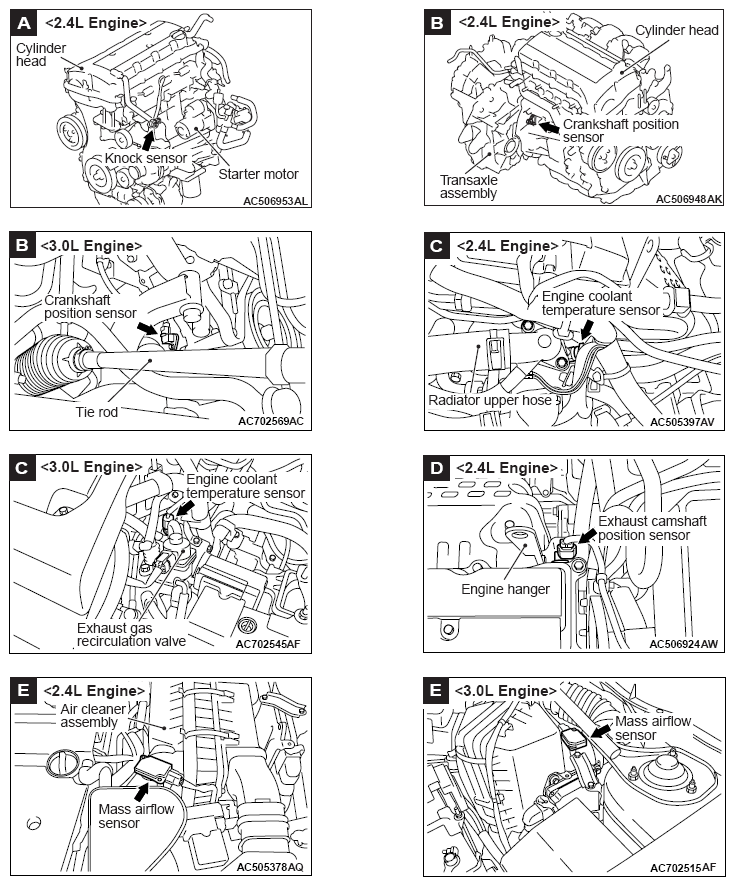

Crankshaft position sensor	B
Engine coolant temperature sensor	C
Exhaust camshaft position sensor < 2.4L Engine >	D
Front impact sensor	N
Front light sensor < Vehicles with automatic anti-dazzling mirror >	b
Front wheel speed sensor	e
Fuel level sensor (sub) < AWD >	X
Fuel pump module (incorporating fuel level sensor (main) and fuel tank temperature sensor)	j
Fuel tank differential pressure sensor	j
G and yaw rate sensor < Vehicles with ASC >	V
Heated oxygen sensor < 2.4L Engine >	h
Input shaft speed sensor < 3.0L Engine >	P
Intake camshaft position sensor < 2.4L Engine >	J
Interior temperature sensor < Vehicles with automatic air conditioning system >	U
Knock sensor < 2.4L Engine >	A
Knock sensor 1 < 3.0L Engine >	O
Knock sensor 2 < 3.0L Engine >	O
Left bank heated oxygen sensor (front) < 3.0L Engine >	Q
Left bank heated oxygen sensor (rear) < 3.0L Engine >	a
Lighting control sensor < Vehicles with automatic light >	b
Linear air-fuel ratio sensor < 2.4L Engine >	f
Manifold absolute pressure sensor	I
Mass airflow sensor	E
Output shaft speed sensor < 3.0L Engine >	d

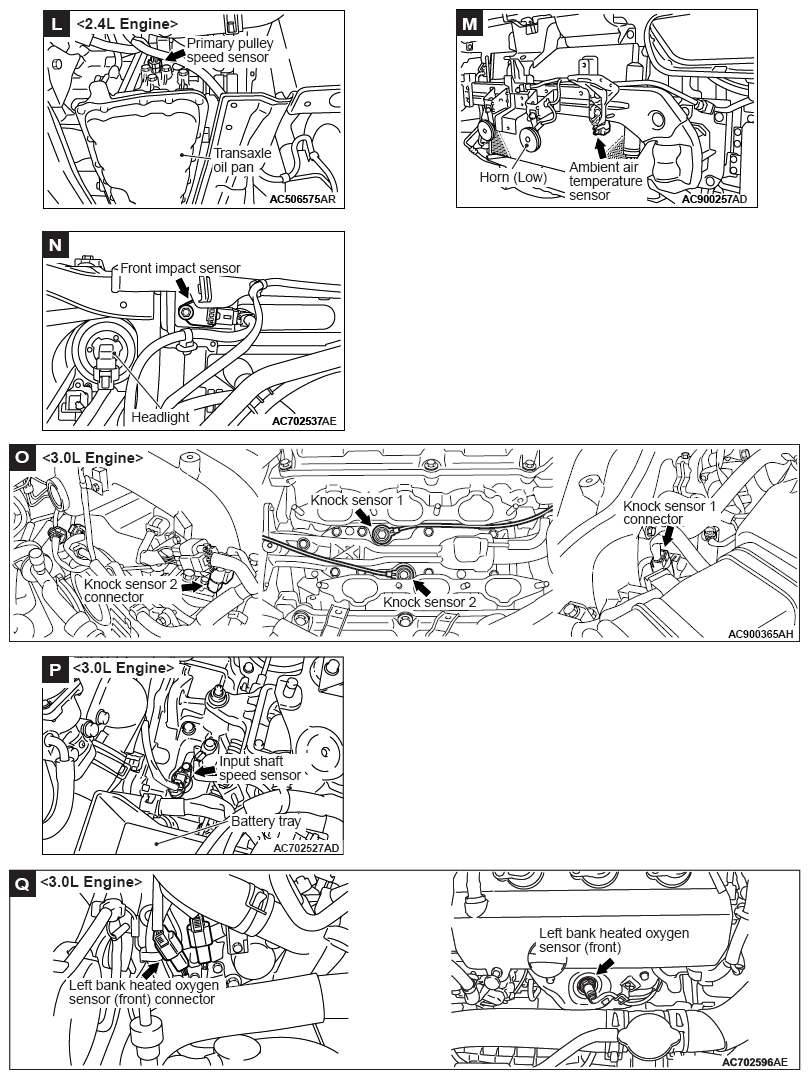

Primary pulley speed sensor < 2.4L Engine >	L
Rear light sensor < Vehicles with automatic anti-dazzling mirror >	b
Rear wheel speed sensor	k
Right bank heated oxygen sensor (front) < 3.0L Engine >	Z
Right bank heated oxygen sensor (rear) < 3.0L Engine >	Z
Seat slide sensor	g

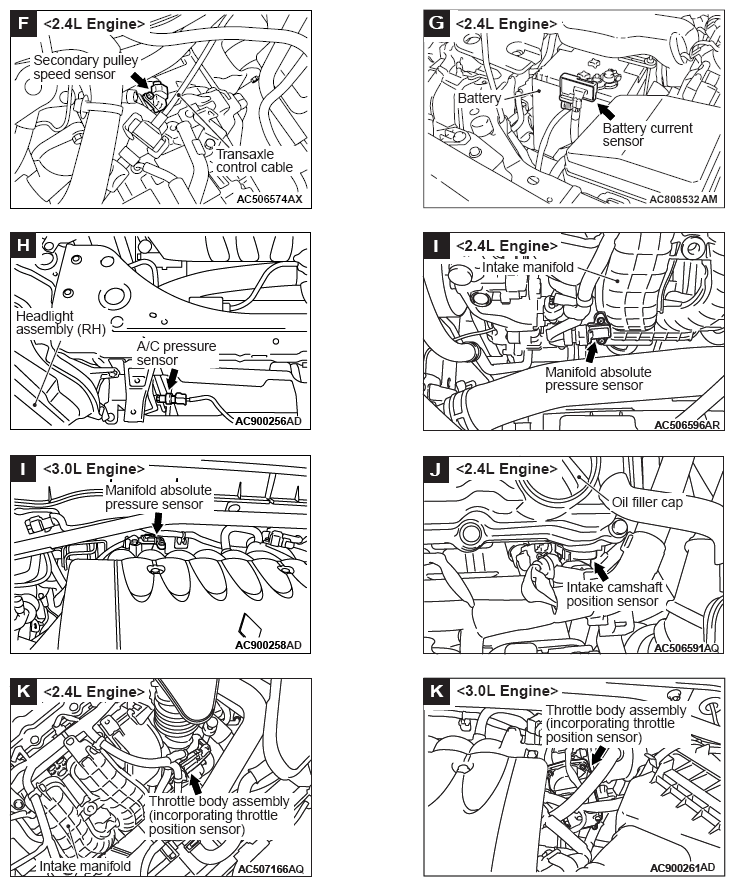

Secondary pulley speed sensor < 2.4L Engine >	F

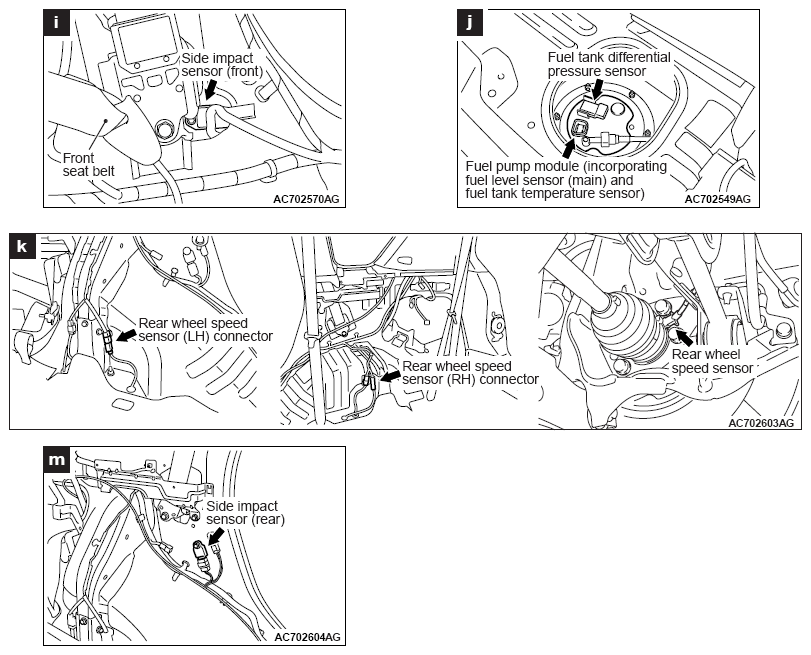

Side impact sensor (front)	i
Side impact sensor (rear)	m
Steering wheel sensor < Vehicles with ASC >	S

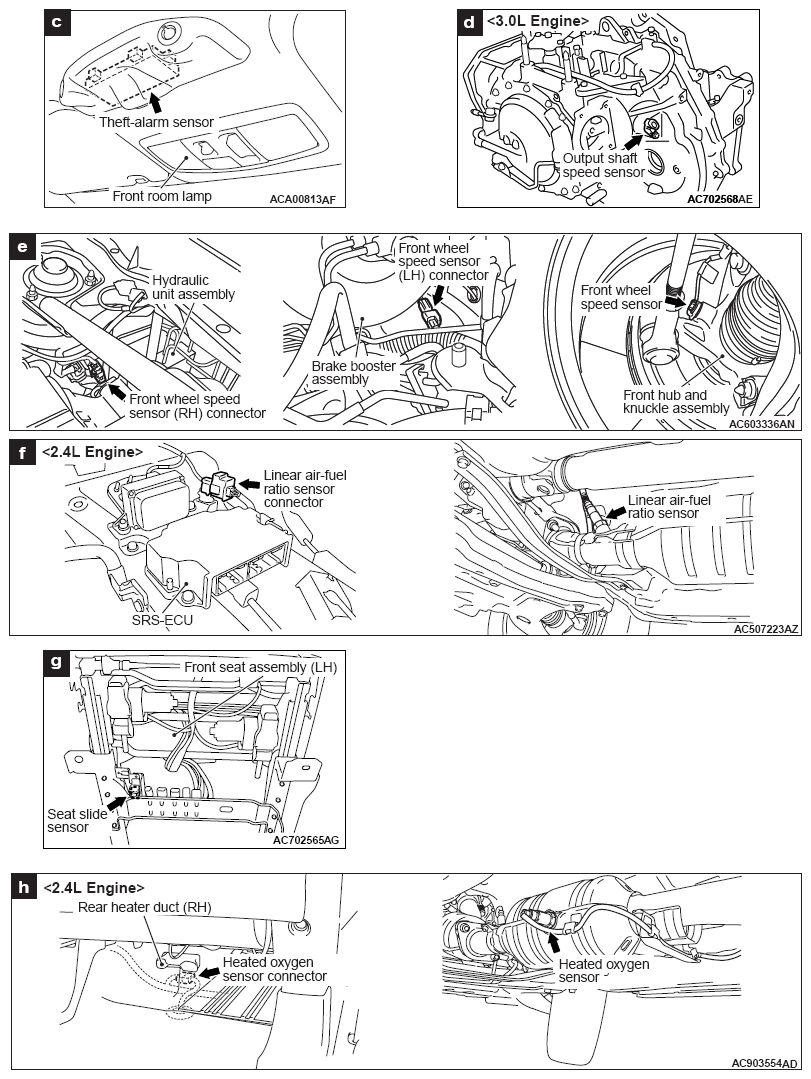

Theft-alarm sensor	c
Throttle body assembly (incorporating throttle position sensor)	K

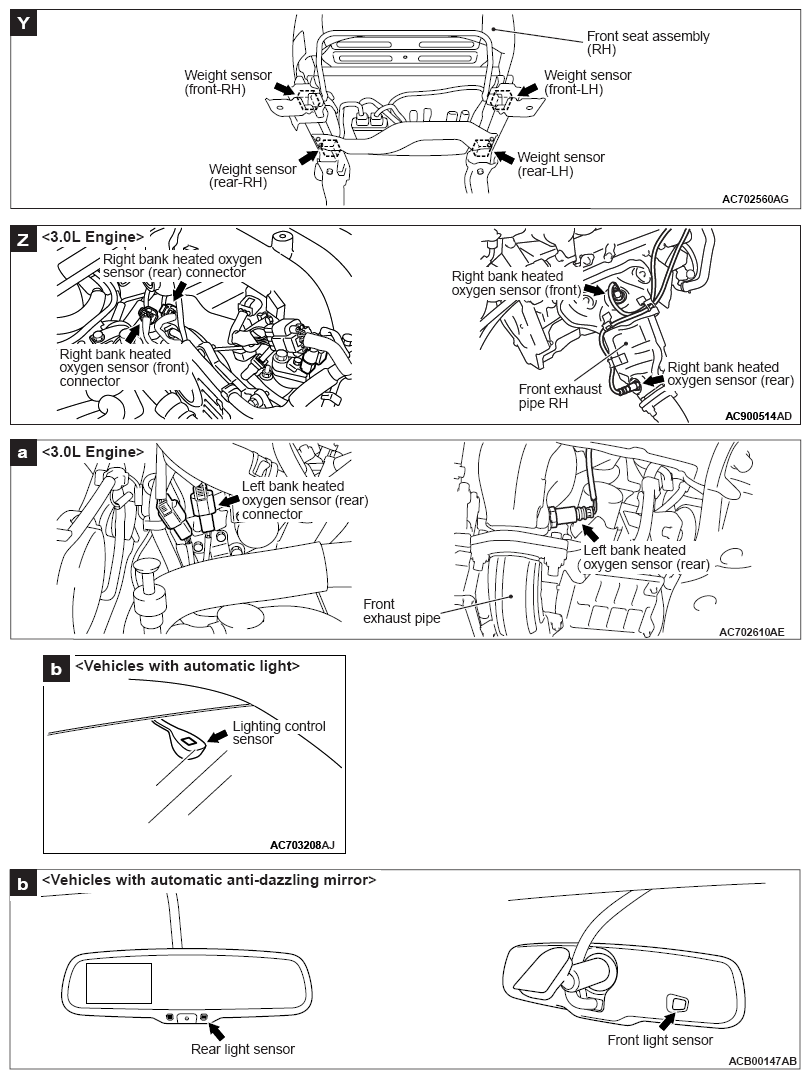

Weight sensor	Y
