Starter Relay Check

STARTER RELAY CONTINUITY CHART

Battery voltage Terminal number to be connected to tester Continuity test results
Not applied 3 - 4 Open circuit
Connect terminal 2 to battery (+) terminal.
Connect terminal 1 to battery (-) terminal.		 3 - 4 Continuity (less than 2 ohms)

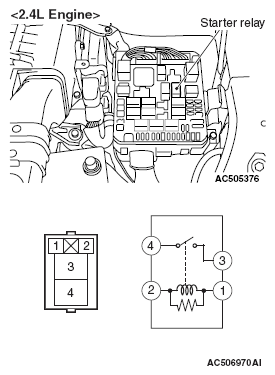

Fig 1: Identifying Starter Relay With Connector Terminals (2.4L Engine)
G05431132Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

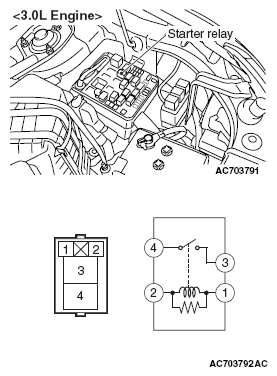

Fig 2: Identifying Starter Relay With Connector Terminals (3.0L Engine)
G05431133Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
