General Information
>>
System Diagram
System Diagram

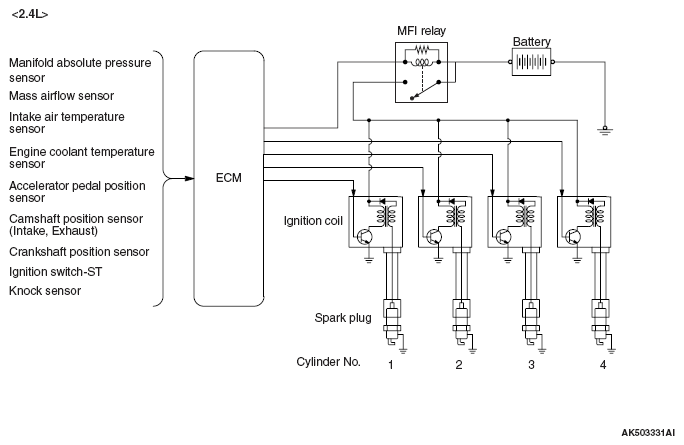

Fig 1: Ignition System Diagram - 2.4L
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

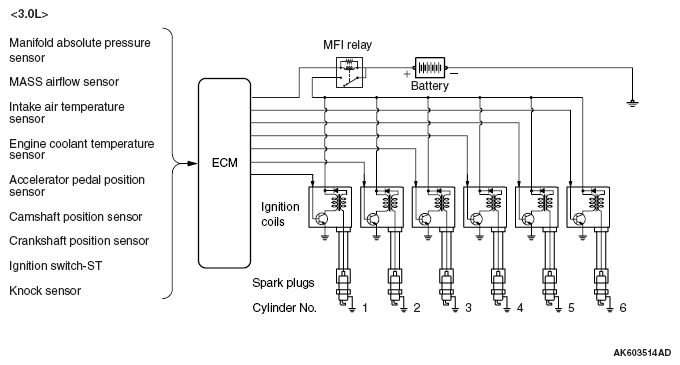

Fig 2: Ignition System Diagram - 3.0L
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
