Theft Protection Label: Locations

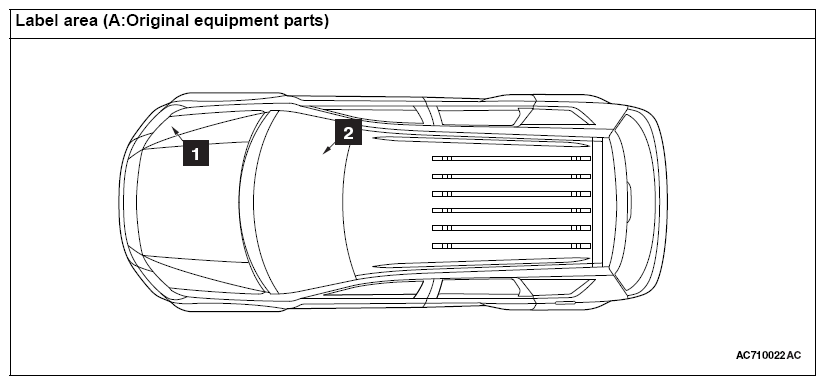

Fig 1: Theft-Protection Label Locations

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

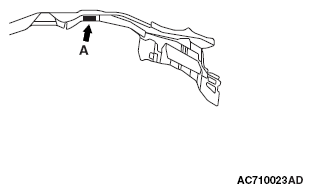

Fig 2: Theft-Protection Label Location - Front End Upper Bar (Engine Room)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

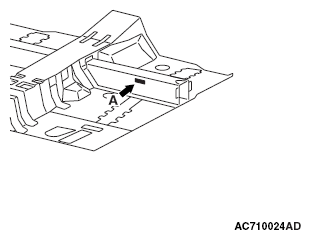

Fig 3: Theft-Protection Label Location (Front Floor Crossmember Front)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 4: Theft-Protection Label Location - Engine (Exhaust Manifold Side, 4B1)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

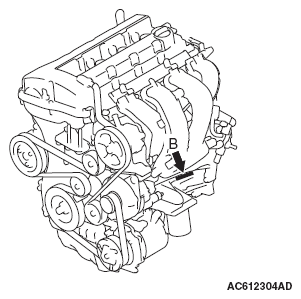

Fig 5: Theft-Protection Label Location - Engine (Intake Manifold Side, 4B1)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

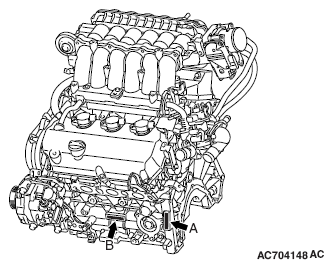

Fig 6: Theft-Protection Label Location (Engine, 6B3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

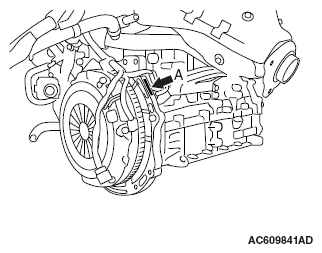

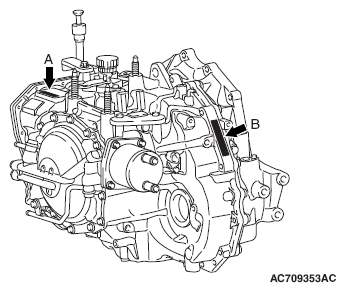

Fig 7: Theft-Protection Label Location (Transaxle, CVT)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

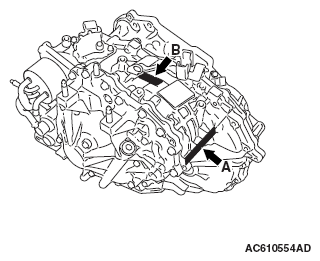

Fig 8: Theft-Protection Label Location (Transaxle, 6A/T)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
