Home >> Mitsubishi >> 2012 >> RVR ES >> Repair and Diagnosis >> Body & Frame >> Windows >> Window Glass >> Liftgate Window Glass >> Removal And Installation >> Notes

Removal And Installation: Notes

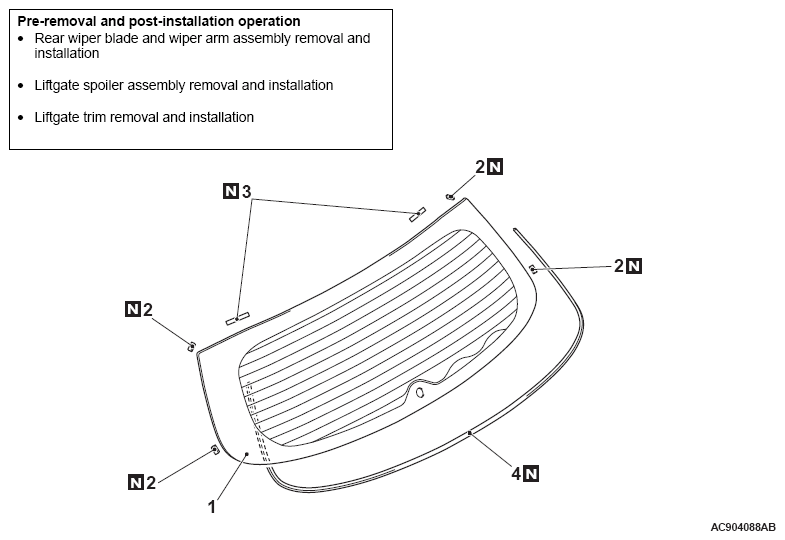

Fig 1: Identifying Liftgate Window Glass Remove/Install Components (1 Of 2)
G07048593Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

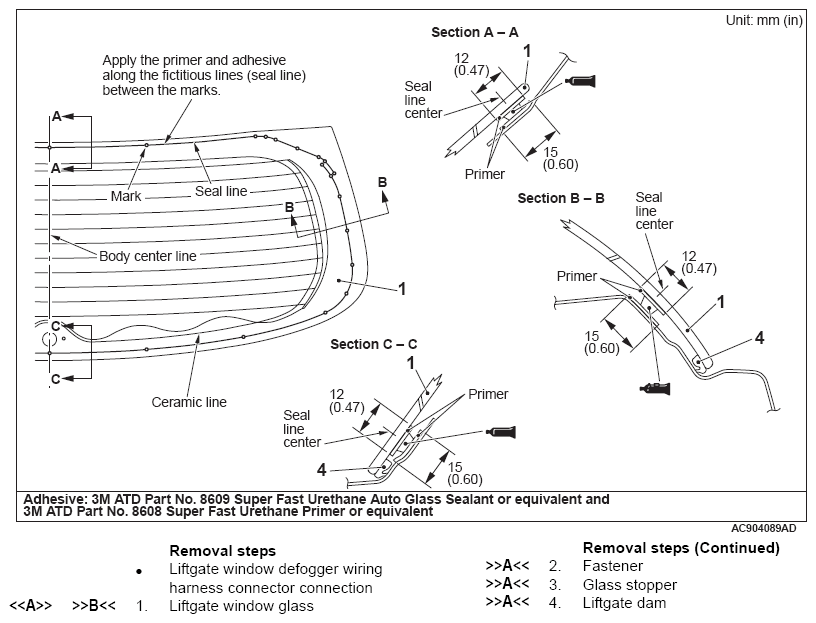

Fig 2: Identifying Liftgate Window Glass Remove/Install Components (2 Of 2)
G07048594Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
