OEM Component Locations: Sensor

Name	Symbol

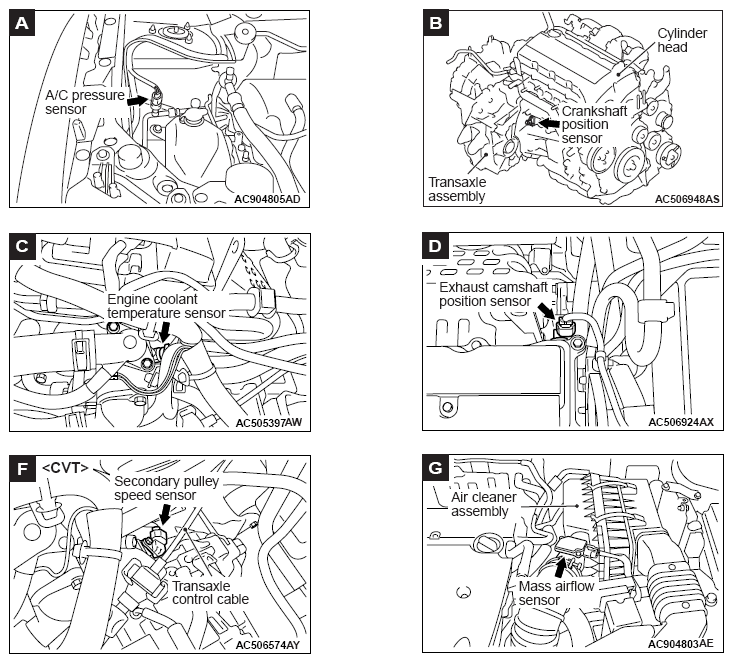

A/C pressure sensor	A
Accelerator pedal position sensor	R
Ambient air temperature sensor	O

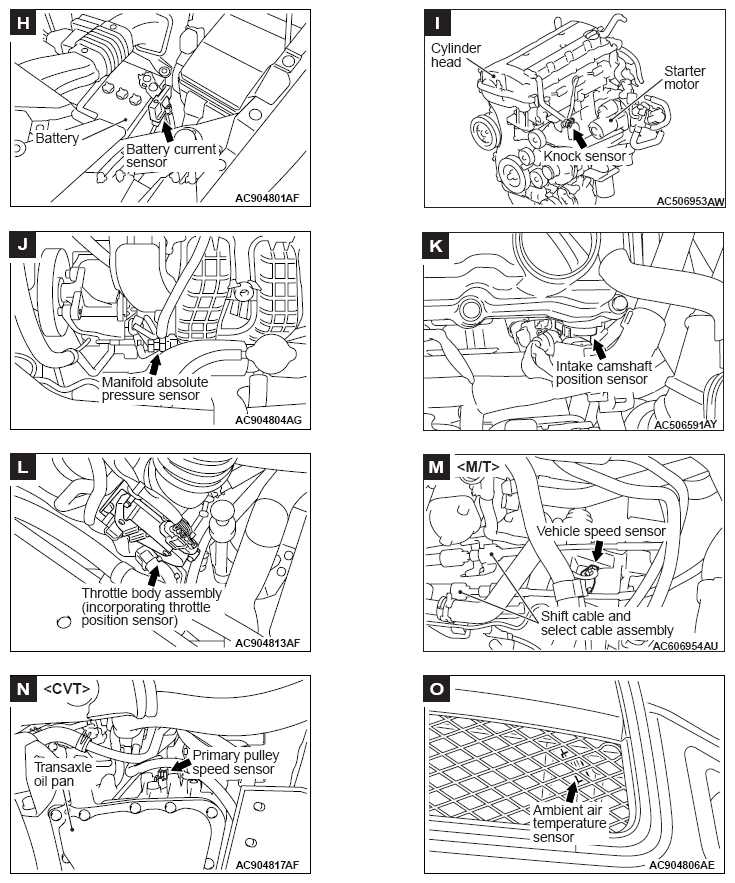

Battery current sensor	H
Crankshaft position sensor	B
Engine coolant temperature sensor	C
Exhaust camshaft position sensor	D
Fin thermo sensor	U

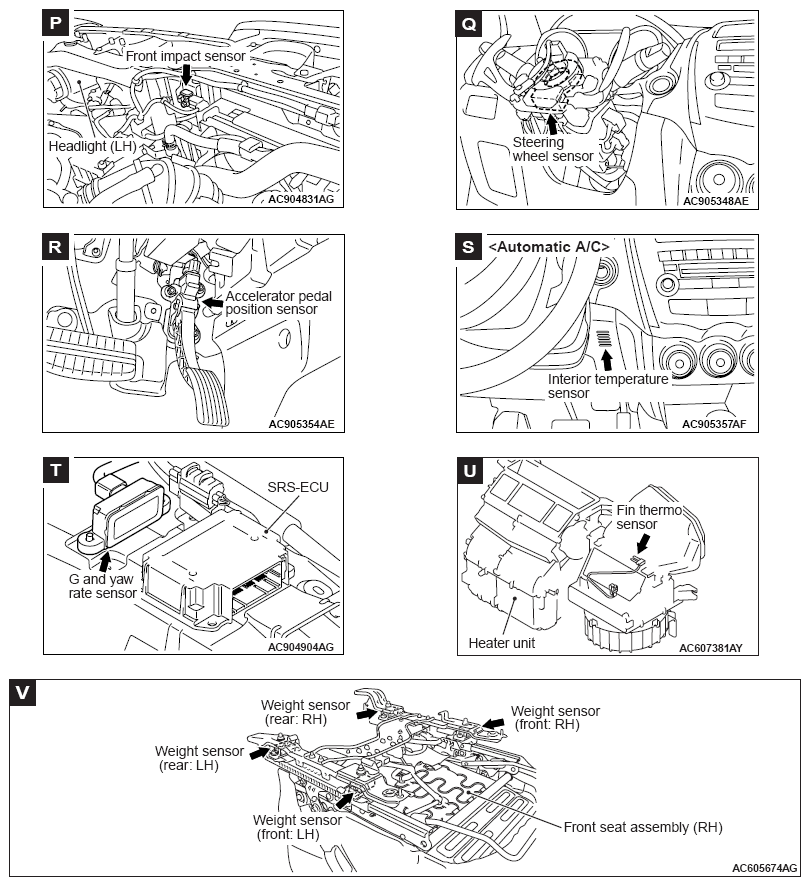

Front impact sensor	P
Front light sensor < Vehicles with automatic anti-dazzling mirror >	W
Front wheel speed sensor	a
Fuel level sensor (sub) < AWD >	Y
Fuel pump module (incorporating fuel level sensor (main) and fuel tank temperature sensor)	f
Fuel tank differential pressure sensor	f
G and yaw rate sensor	T

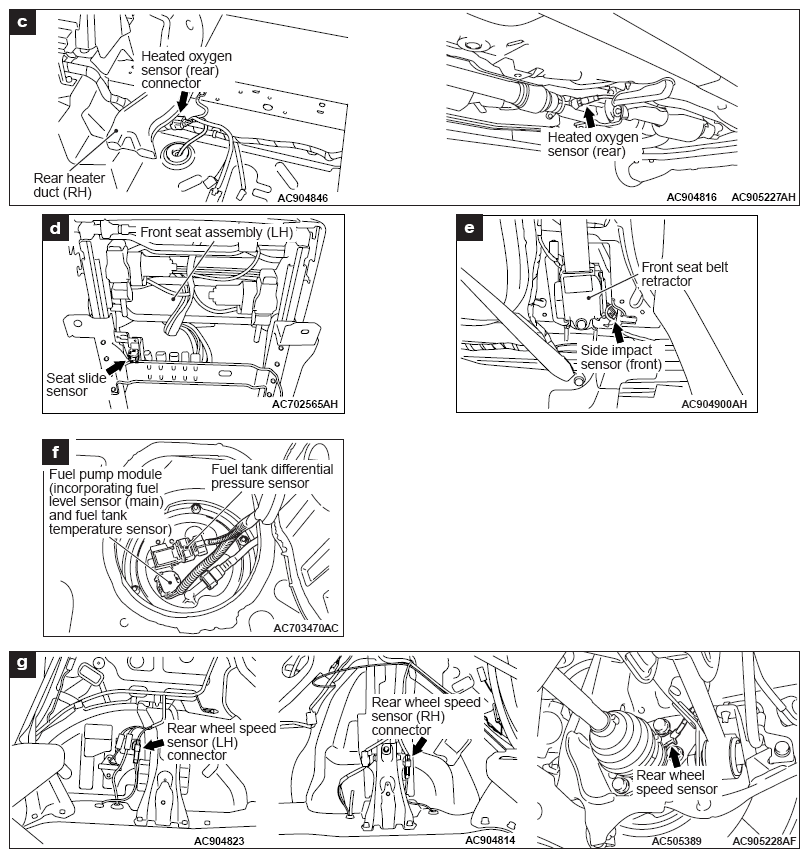

Heated oxygen sensor (rear)	c
Intake camshaft position sensor	K
Interior temperature sensor < Automatic A/C >	S
Knock sensor	I
Lighting control sensor < Vehicles with automatic light >	W
Linear air-fuel ratio sensor	b
Manifold absolute pressure sensor	J
Mass airflow sensor	G
Primary pulley speed sensor < CVT >	N

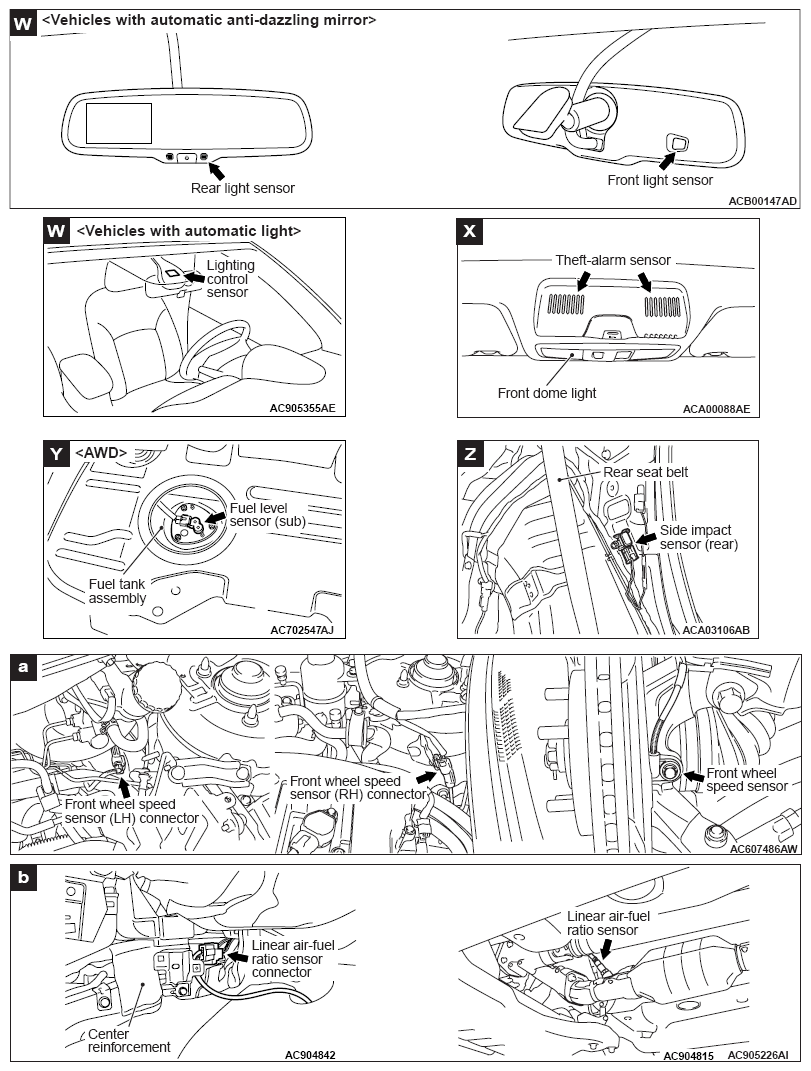

Rear light sensor < Vehicles with automatic anti-dazzling mirror >	W
Rear wheel speed sensor	g
Seat slide sensor	d
Secondary pulley speed sensor < CVT >	F
Side impact sensor (front)	e
Side impact sensor (rear)	Z
Theft-alarm sensor	X
Throttle body assembly (incorporating throttle position sensor)	L
Vehicle speed sensor < M/T >	M
Weight sensor < M/T >	V

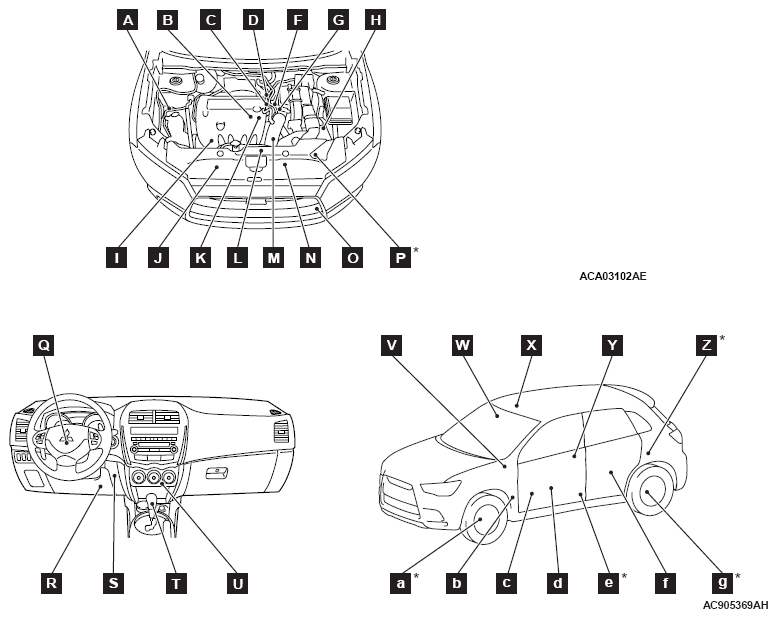

Fig 1: Identifying Sensor Symbol

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: *:also equipped at the right side.

Fig 2: Locating Mass Airflow Sensor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 3: Locating Ambient Air Temperature Sensor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 4: Locating Weight Sensors

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 5: Locating Front Wheel Speed Sensory

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 6: Locating Rear Wheel Speed Sensor And Connectors

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
