Home >> Mitsubishi >> 2013 >> Lancer Evolution MR >> Repair and Diagnosis >> Collision >> Structural >> Body Construction - Evolution >> Body Main Cross-Sectional Views

Body Main Cross-Sectional Views

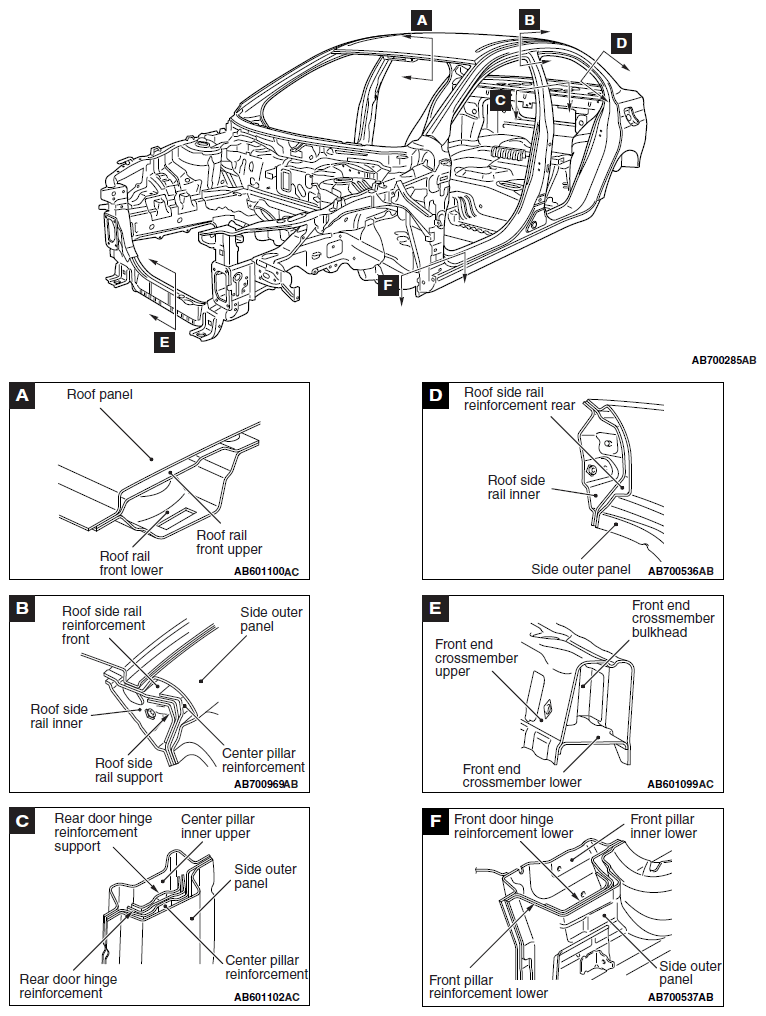

G11493024Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

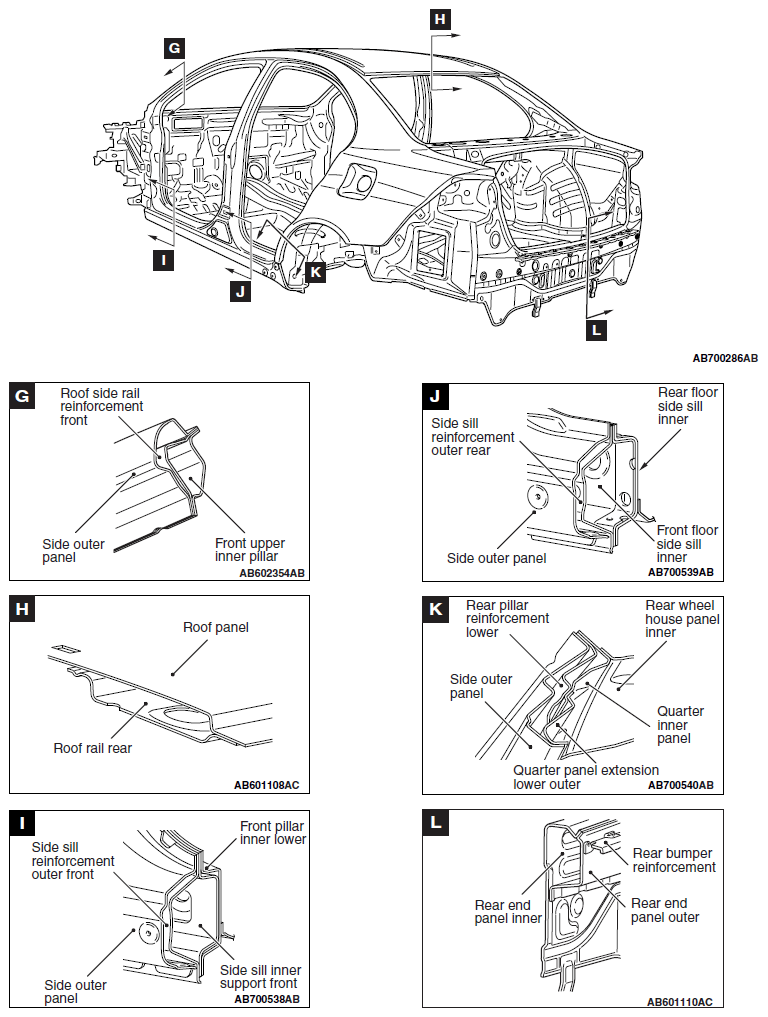

G11493025Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
