Fender Shield: Notes

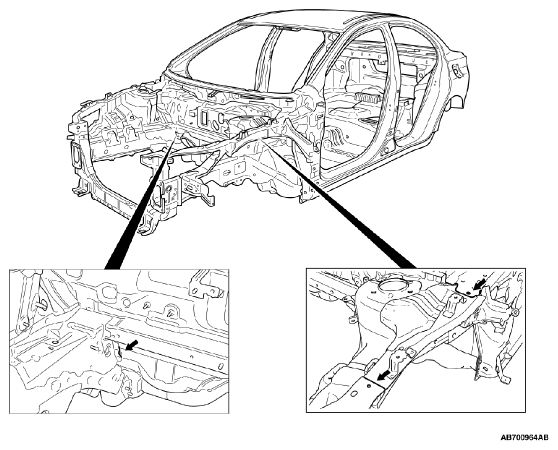

A positioning hole, lug, and notch have been added on the front end upper bar side, front upper frame inner, upper frame extension inner, front side member brace upper and dash panel to improve assembling workability during panel replacement.

G11486500Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
