Removal And Installation: Notes

CAUTION: When WCM has been replaced, all key ID codes should be registered, referring to the ID CODE REGISTRATION JUDGMENT TABLE .

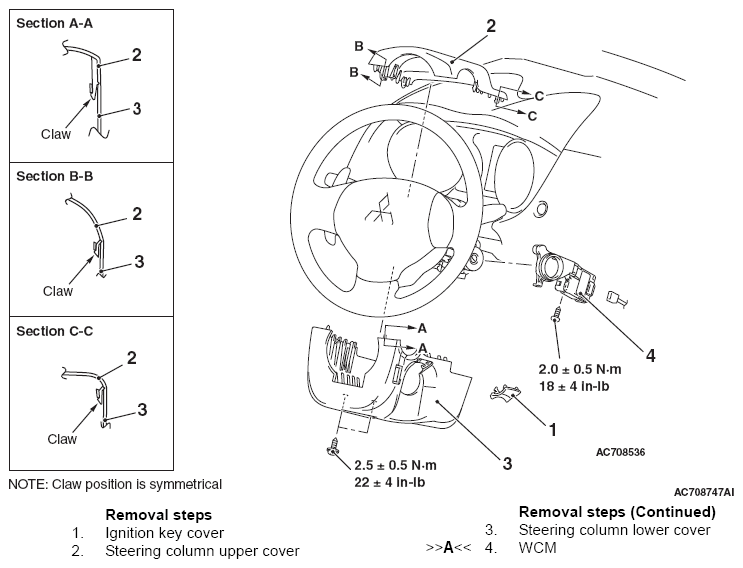

Fig 1: Removing/Installing WCM With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
