Home >> Mitsubishi >> 2014 >> Outlander ES >> Repair and Diagnosis >> Body & Frame >> Windows >> Window Glass >> Windshield >> Removal And Installation >> Notes

Removal And Installation: Notes

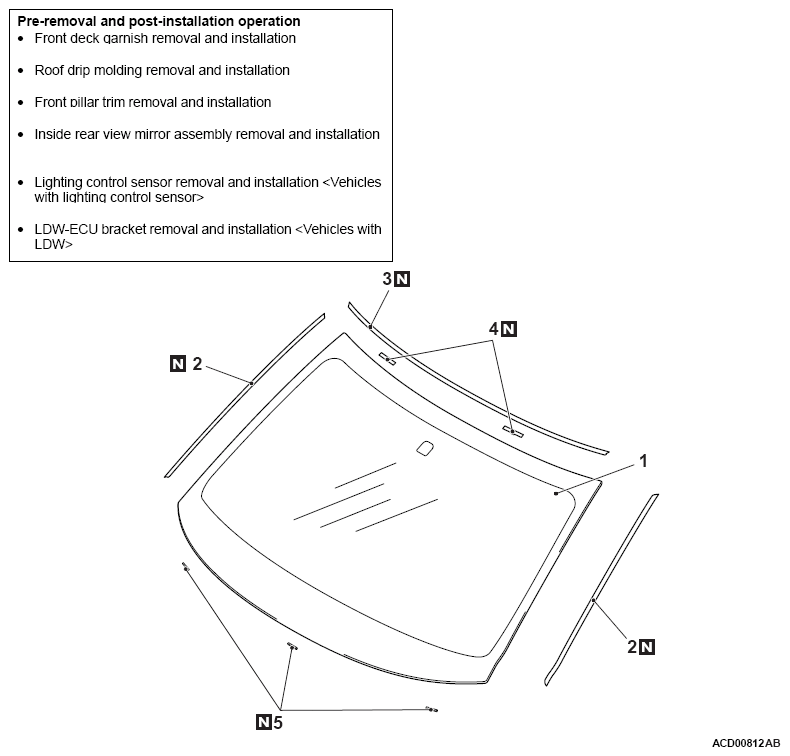

Fig 1: Removing/Installing Windshield (1 Of 2)
G09666098Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

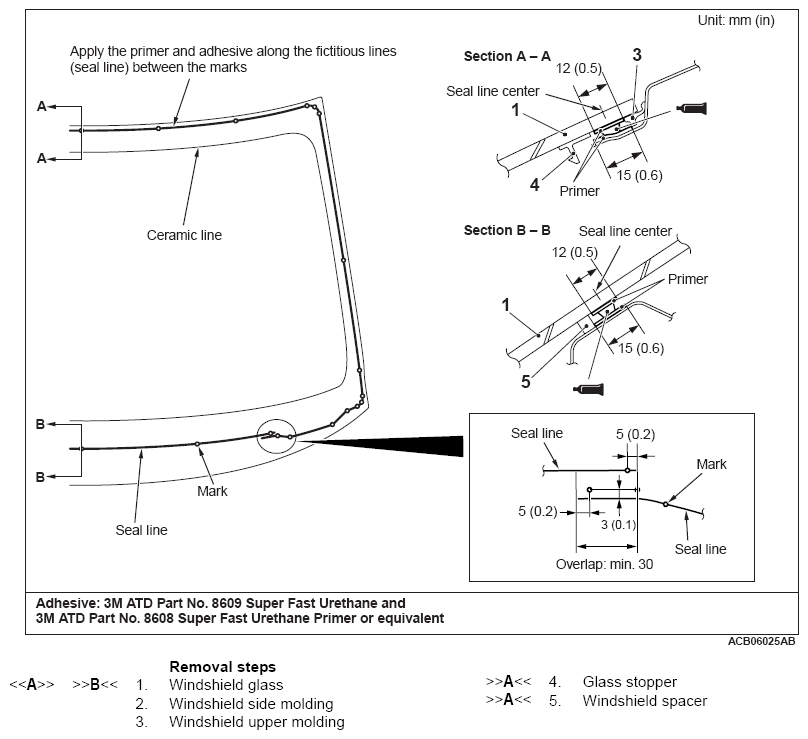

Fig 2: Removing/Installing Windshield (2 Of 2)
G09666099Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
